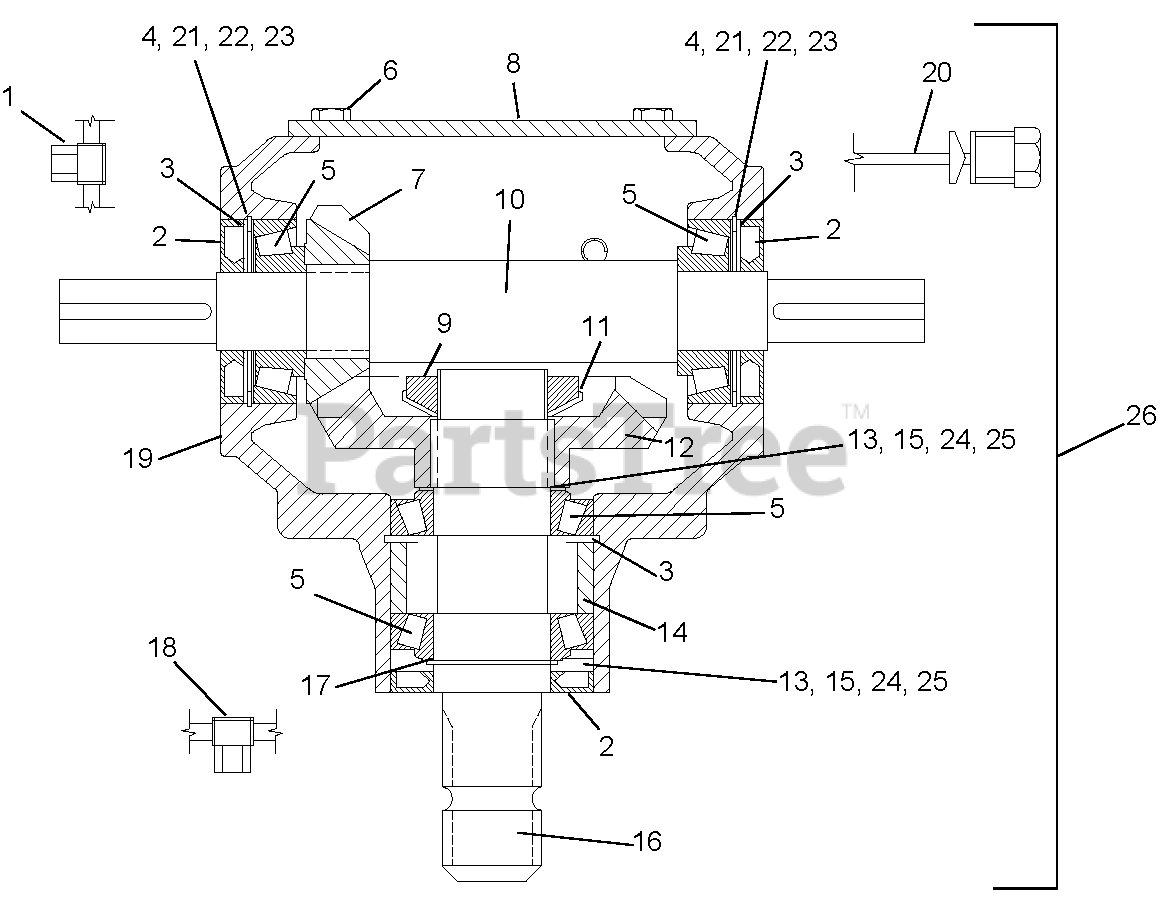

895406 (TRM-719) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Gearbox Assembly Parts Diagram

Tow-Behind Reel Mower Attachment

Gearbox Assembly Parts Diagram

  • Title

1

Gravely 02842900

Oil Plug

$

$

Not available

2

Gravely 05600423

Seal, Oil 36 x 72 x 10

$

$

Not available

3

Gravely 05700114

Snap Ring, UN17437

$

$

Not available

4

Gravely 02845100

Shim, 60.3 mm I.D. x 71.7 mm O.D.

$

$

Not available

5

Gravely 05400630

Bearing

$

$

Not available

6

Gravely 05901140

Bolt, M8 x 14

$

$

Not available

7

Gravely 02558400

Pinion Z15 M 5 7

$

$

Not available

8

Gravely 02558500

Cover

$

$

Not available

9

Gravely 02844100

Nut, Lock M35 x 1.5

$

$

Not available

10

Gravely 02558600

Shaft

$

$

Not available

11

Gravely 06400626

Washer, Spring

$

$

Not available

12

Gravely 02558700

Wheel, Crown Z22 M5 7

$

$

Not available

13

Gravely 02843500

Shim 35.3 mm I.D. x 48 mm O.D. x 1.3 mm

$

$

Not available

14

Gravely 06400627

Spacer

$

$

Not available

15

Gravely 02843400

Shim 35.3 mm x 48 mm x .5 mm

$

$

Not available

16

Gravely 02558800

Shaft 1.375 In.

$

$

Not available

17

Gravely 05700116

Snap Ring 35

$

$

Not available

18

Gravely 02071000

Plug .25

$

$

Not available

19

Gravely 02558900

Casing, T3

$

$

Not available

20

Gravely 02559000

Plug, Oil Level

$

$

Not available

21

Gravely 02844800

Shim 60.3 mm x 71.7 mm x .3 mm

$

$

Not available

22

Gravely 02844900

Shim 60.3 mm x 71.7 mm x .4 mm

$

$

Not available

23

Gravely 02845000

Shim 60.3 mm x 71.7 mm x .5 mm

$

$

Not available

24

Gravely 02843200

Shim 35.3 mm x 48 mm x .3 mm

$

$

Not available

25

Gravely 02843300

Shim 35.3 mm x 48 mm x .4 mm

$

$

Not available

26

Gravely 02542400

Gearbox Assembly

$

$

Not available
