895404 (TRM-3083) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Stabilizer Arms Parts Diagram

Tow-Behind Reel Mower Attachment

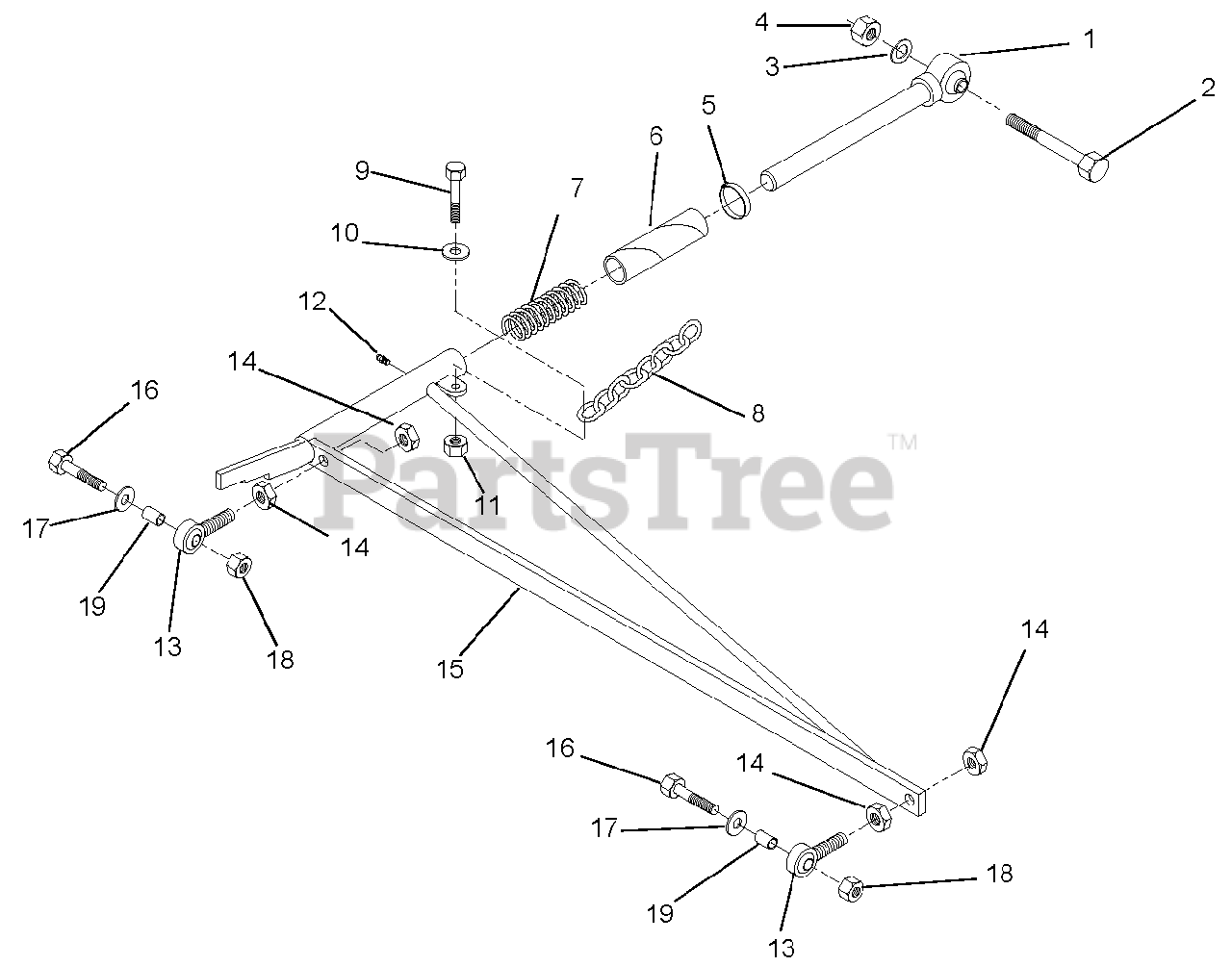

Stabilizer Arms Parts Diagram

  • Title

1

Gravely 02544151

Weldment, Telescoping Arm Shaft

$

$

Not available

2

Gravely 05901116

Bolt, Pivot

$

$

Not available

3

Gravely 06300026

Washer, Lock .75 CP

$

$

Not available

4

Gravely 06500437

Nut, Hex .75-10

$

$

Not available

5

Gravely 02395900

Clamp, Pinch

$

$

Not available

6

Gravely 05500608

Sleeve, Telescoping Arm

$

$

Not available

7

Gravely 08300410

Spring, Compression

$

$

Not available

8

Gravely 02545100

Chain, 8-Link

$

$

Not available

9

Gravely 05900738

Cap Screw, Hex Head .312-18 x 1.5

$

$

Not available

10

Gravely 06400509

Washer, Flat .312 SAE
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06500428

Nut, Hex .312-18

$

$

Not available

12

Gravely 07000916

Fitting, Grease

$

$

Not available

13

Gravely 07000936

Rod End .625 Bore, Right Hand Thread

$59.99

$

Usually ships in 4-12 days

0

14

Gravely 02118100

Nut, Jam .625-18 NF
(Superseded to 06539600)

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 02154753

Weldment, Stabilizer Arm, Left Hand

$

$

Not available

Gravely 02154853

Weldment, Stabilizer Arm, Right Hand (Shown)

Note: (Shown)

$

$

Not available

16

Gravely 05900809

Cap Screw, Hex Head .50-13 x 2

$

$

Not available

17

Gravely 06400416

Washer, Flat .50 SAE

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 06500510

Nut, Hex .50-13 CP Nylock

$

$

Not available

19

Gravely 05500636

Bushing, Adapter

$

$

Not available
