895404 (TRM-3083) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Reel Housing Bearing_Non-Drive Side Parts Diagram

Tow-Behind Reel Mower Attachment

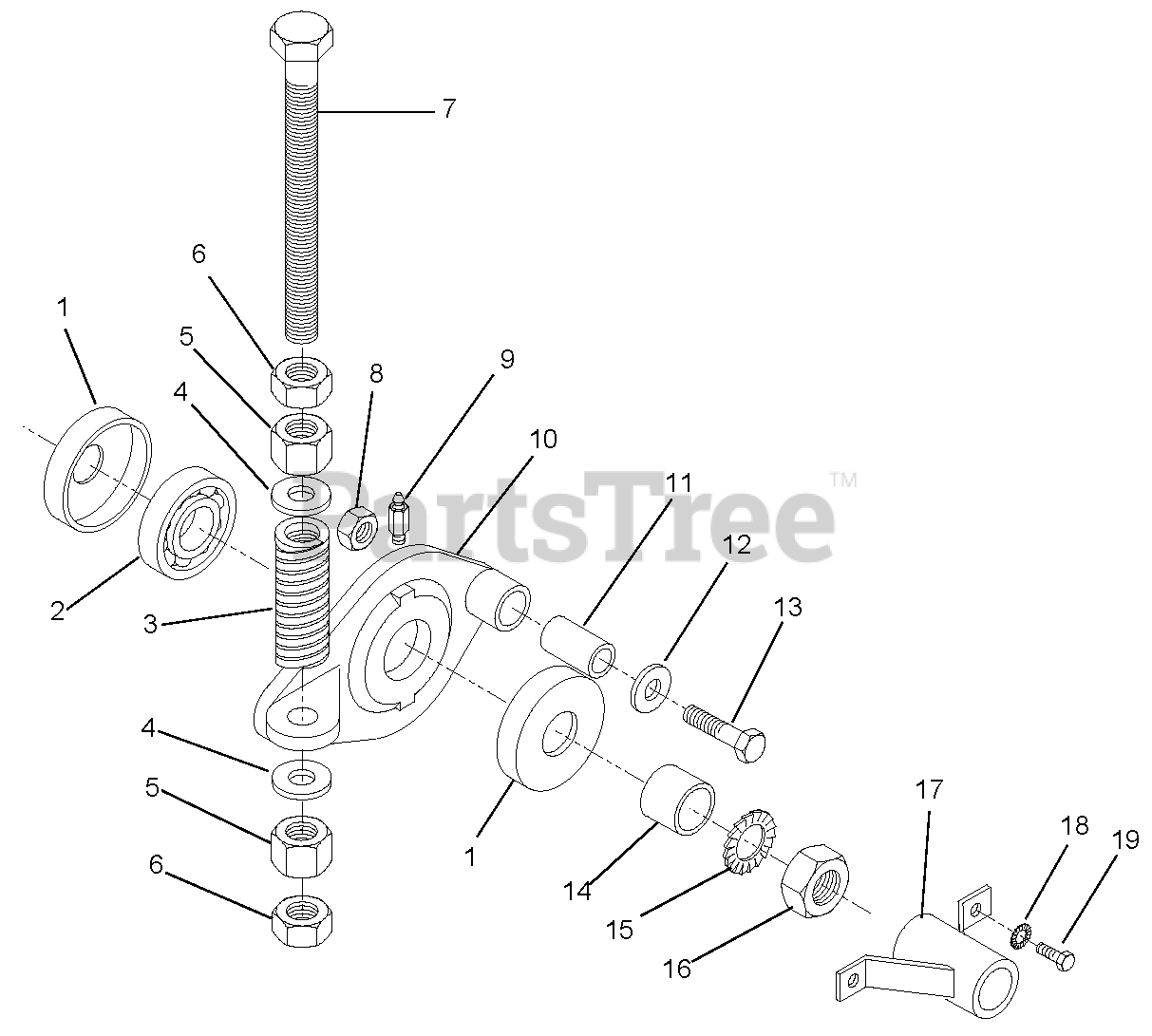

Reel Housing Bearing_Non-Drive Side Parts Diagram

  • Title

1

Gravely 05600304

Seal, Oil

$

$

Not available

2

Gravely 05400428

Bearing

$

$

Not available

3

Gravely 08300411

Spring, Compression

$

$

Not available

4

Gravely 06400511

Washer, Flat .625 SAE

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 06500532

Nut, Hex .625-18

$

$

Not available

6

Gravely 02118100

Nut, Jam .625 NF CP
(Superseded to 06539600)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 05901027

Cap Screw, Hex Head .625 x 8 NF

$

$

Not available

8

Gravely 02091900

Nut, Jam .437

$

$

Not available

9

Gravely 07001008

Fitting, Grease .25-28

$12.99

$

In Stock, only 2 left!

0

10

Gravely 05442553

Housing, Reel Bearing

$

$

Not available

11

Gravely 05400427

Housing, Pivot Bushing Bearing

$

$

Not available

12

Gravely 06400421

Washer, Flat .375

$

$

Not available

13

Gravely 05901117

Cap Screw, Hex Head .375 – Modified

$

$

Not available

14

Gravely 02543700

Spacer, Reel End

$

$

Not available

15

Gravely 06300104

Washer, Star Lock, .75 External Tooth

$

$

Not available

16

Gravely 02223800

Nut, Jam .75 NF

$

$

Not available

17

Gravely 02544451

Weldment, Safety Cup

$

$

Not available

18

Gravely 06300103

Washer. Star Lock .375 External Tooth

$

$

Not available

19

Gravely 05900802

Cap Screw, Hex Head .375-16 x .50

$

$

Not available
