895404 (TRM-3083) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) PTO Driveline Assembly Parts Diagram

Tow-Behind Reel Mower Attachment

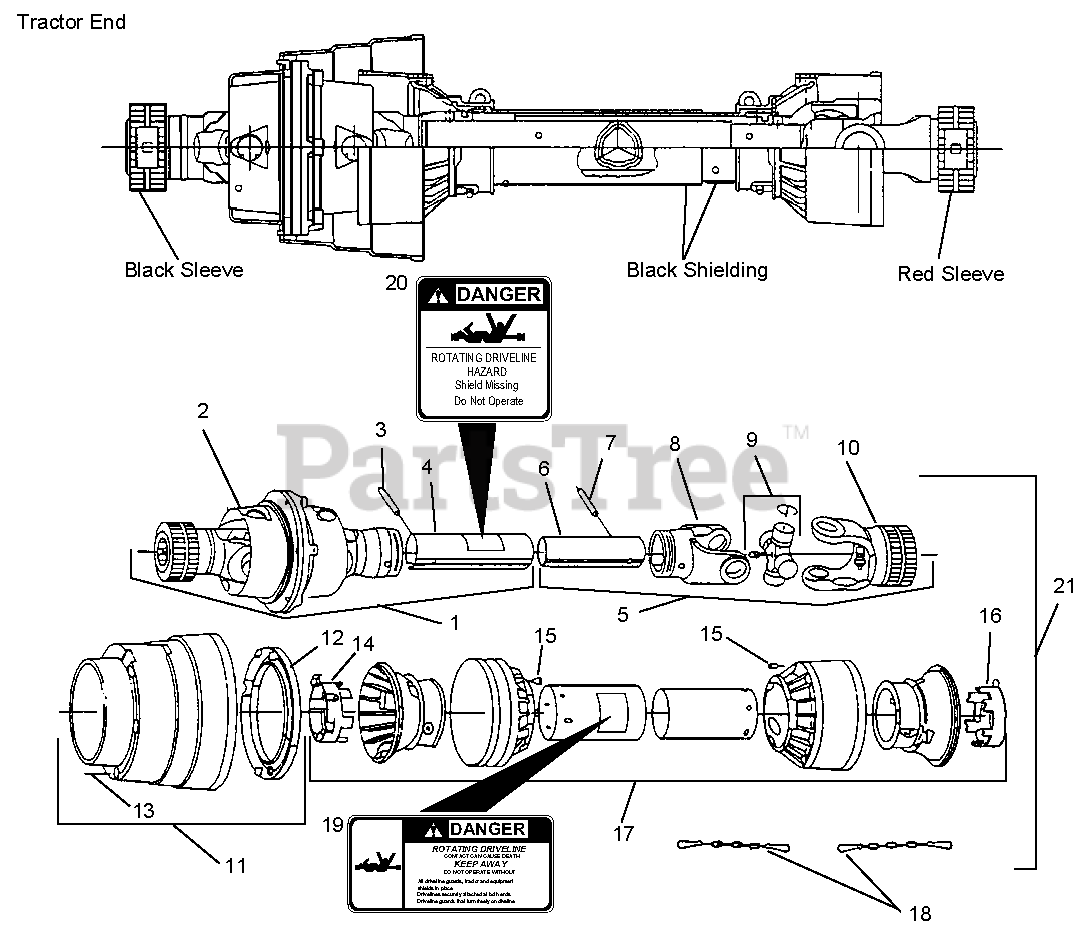

PTO Driveline Assembly Parts Diagram

  • Title

1

Half Shaft, Outer (Not Serviced Separately – Order Item 21, P/N 02542600)

Half Shaft, Outer (Not Serviced Separately – Order Item 21, P/N 02542600)

Note: (Not Serviced Separately – Order Item 21, P/N 02542600)

$

$

Not available

2

Gravely 02579900

Assembly, Constant Velocity Joint (Tractor End)

Note: (Tractor End)

$

$

Not available

3

Gravely 05800115

Pin, Roll 8 mm x 60 mm

$

$

Not available

4

Gravely 02580000

Tube, Outer

$

$

Not available

5

Half Shaft, Inner (Not Serviced Separately – Order Item 21, P/N 02542600)

Half Shaft, Inner (Not Serviced Separately – Order Item 21, P/N 02542600)

Note: (Not Serviced Separately – Order Item 21, P/N 02542600)

$

$

Not available

6

Gravely 07100606

Tube, Inner

$

$

Not available

7

Gravely 05800116

Roll Pin 8 mm x 55 mm

$

$

Not available

8

Gravely 07100607

Yoke, Inner Tube

$

$

Not available

9

Gravely 02838800

Kit, Cross and Bearing

$

$

Not available

10

Gravely 02580300

Assembly, Yoke (Implement End)

Note: (Implement End)

$

$

Not available

11

Gravely 02580400

Shield, Wide Angle

$

$

Not available

12

Gravely 05400440

Bearing, Soft Cone

$

$

Not available

13

Gravely 05901119

Screw, Self-Tapping #6

$

$

Not available

14

Gravely 02580500

Tube, Bearing Outer

$

$

Not available

15

Gravely 02579600

Pin, Lock

$

$

Not available

16

Gravely 02580600

Tube, Bearing Inner

$

$

Not available

17

Gravely 02580700

Shield, Safety

$

$

Not available

18

Gravely N/A

Chain, Safety

$

$

Currently unavailable

19

Gravely 02868600

Decal, Danger

$

$

Not available

20

Gravely 02868800

Decal, Danger

$

$

Not available

21

Gravely 02542600

DRIVELINE ASSEMBLY 50022104

$

$

Not available
