895404 (TRM-3083) - Gravely Tow-Behind Reel Mower Attachment (SN: 000101 & Above) Primary Guards Parts Diagram

Tow-Behind Reel Mower Attachment

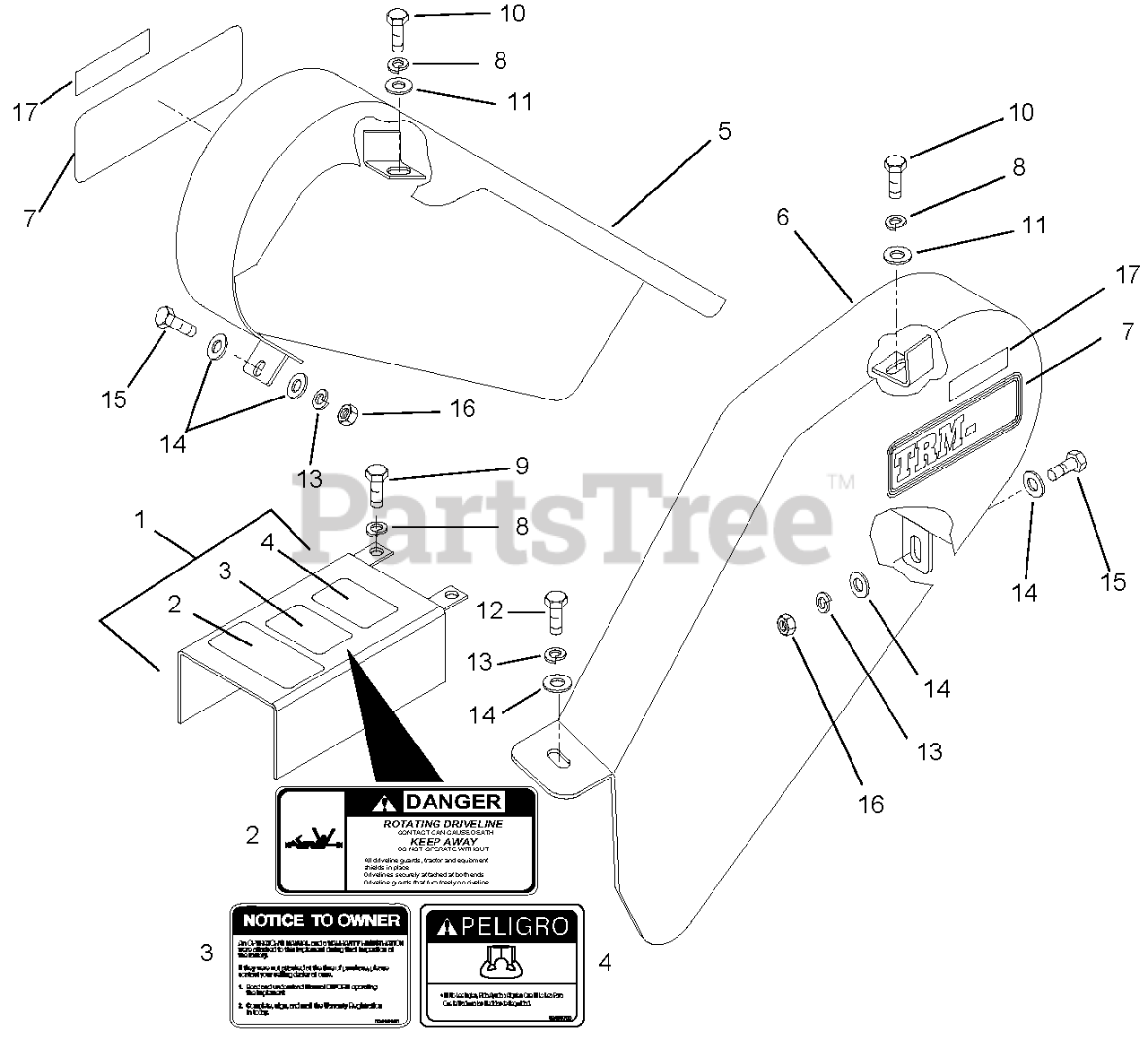

Primary Guards Parts Diagram

  • Title

1

Gravely 02548200

Guard Assembly, Driveshaft

$

$

Not available

2

Gravely 02499700

Decal, Danger

$

$

Not available

3

Gravely 02499900

Decal, Notice to Owner

$

$

Not available

4

Gravely 02394700

Decal, Danger

$

$

Not available

5

Gravely 02377551

Weldment, Right Hand Drive Guard

$

$

Not available

6

Gravely 02377851

Weldment, Left Hand Drive Guard

$

$

Not available

7

Gravely 04297900

Decal, Model TRM-3083

$

$

Not available

8

Gravely 06300028

Washer, Lock .50

$3.49

$

Usually ships in 4-12 days

0

9

Gravely 05901017

Cap Screw, Hex Head .50-13 x .75

$

$

Not available

10

Gravely 05900805

Cap Screw, Hex Head.50-13 x 1

$

$

Not available

11

Gravely 06400416

Washer, Flat .50

$3.49

$

Usually ships in 4-12 days

0

12

Gravely 05900731

Cap Screw, Hex Head .375-16 x .75

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 06300030

Washer, Lock .375

$

$

Not available

14

Gravely 06400417

Washer, Flat .375

$

$

Not available

15

Gravely 05900801

Cap Screw, Hex Head .375-16 x 1
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 06500610

Nut, Hex .375-16 CP

$

$

Not available

17

Gravely 05239900

Decal, Gravely Logo 9.5"

$9.99

$

In Stock, only 1 left!

0
