895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Transport Wheel, Tire And Spindle Parts Diagram

Tow-Behind Finishing Mower

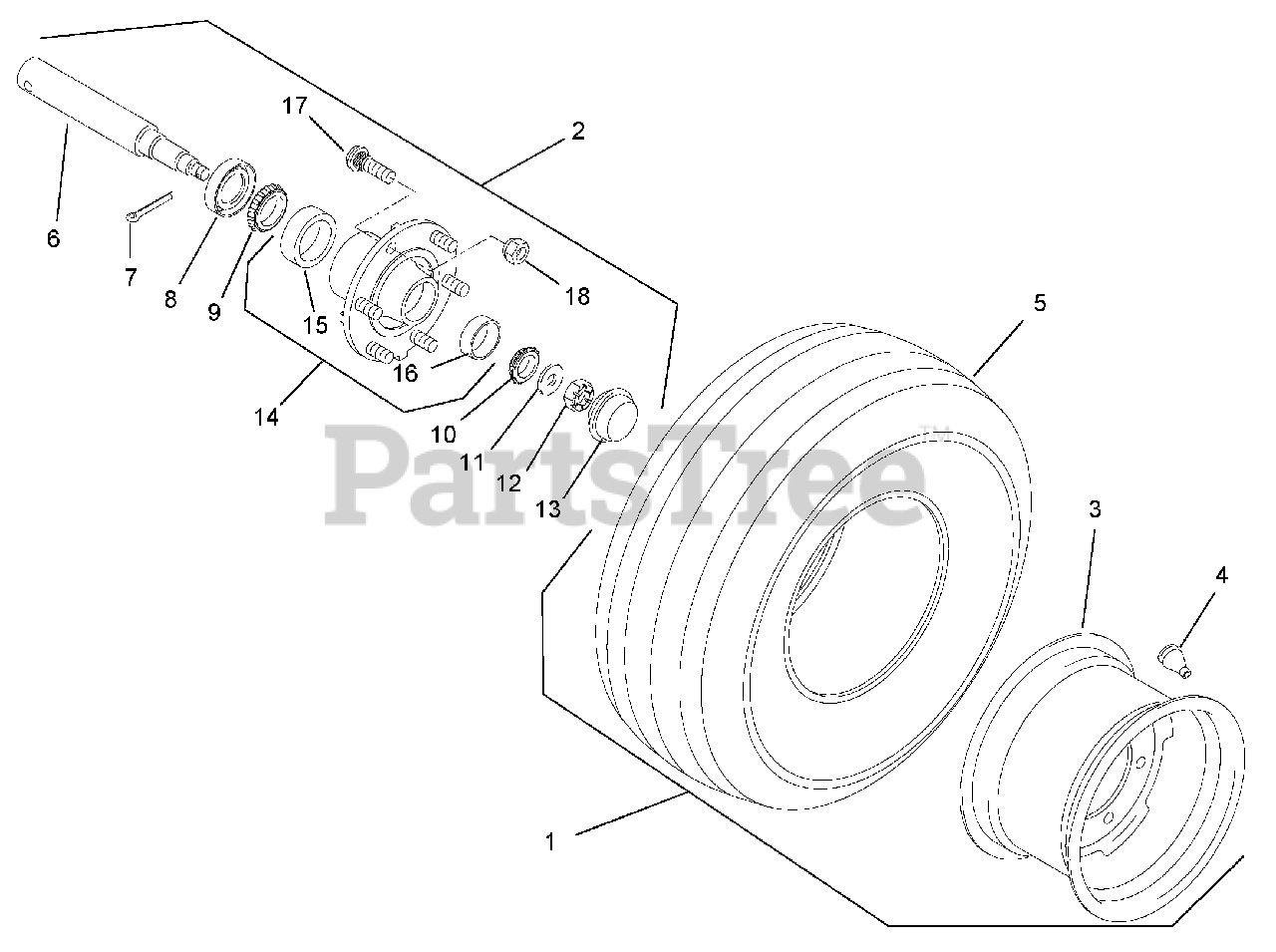

Transport Wheel, Tire And Spindle Parts Diagram

  • Title

1

Gravely 07100618

Tire and Wheel Assembly

$

$

Not available

2

Gravely 07100551

Hub and Spindle Assembly (includes items 6 – 18)

Note: (includes items 6 – 18)

$

$

Not available

3

Gravely 07100710

Wheel 12 x 7

$

$

Not available

4

Gravely 07100521

Valve Stem

$

$

Not available

5

Gravely 07100617

Tire, 23 x 9.50-12

$

$

Not available

6

Gravely 02388800

Spindle, 1.625

$

$

Not available

7

Gravely 06700105

PIn, Cotter .156 x 1.50

$

$

Not available

8

Gravely 05600303

Seal

$

$

Not available

9

Gravely 05400333

Bearing 1.50

$

$

Not available

10

Gravely 05400610

Cone, Bearing 1.25 I.D. x .66

$

$

Not available

11

Gravely 06400510

Washer, Flat .875

$

$

Not available

12

Gravely 06500440

Nut, Castellated Hex .875-14

$

$

Not available

13

Gravely 07100520

Hub Cap

$

$

Not available

14

Gravely 07100527

Hub With Cups and Bolts

$

$

Not available

15

Gravely 05400333

Bearing 1.50

$

$

Not available

16

Gravely 05400305

Cup, Bearing

$

$

Not available

17

Gravely 07100516

Bolt, Lug .50 x 1.875

$

$

Not available

18

Gravely 06500427

Nut, Hex Hub .50-20 UNF

$

$

Not available
