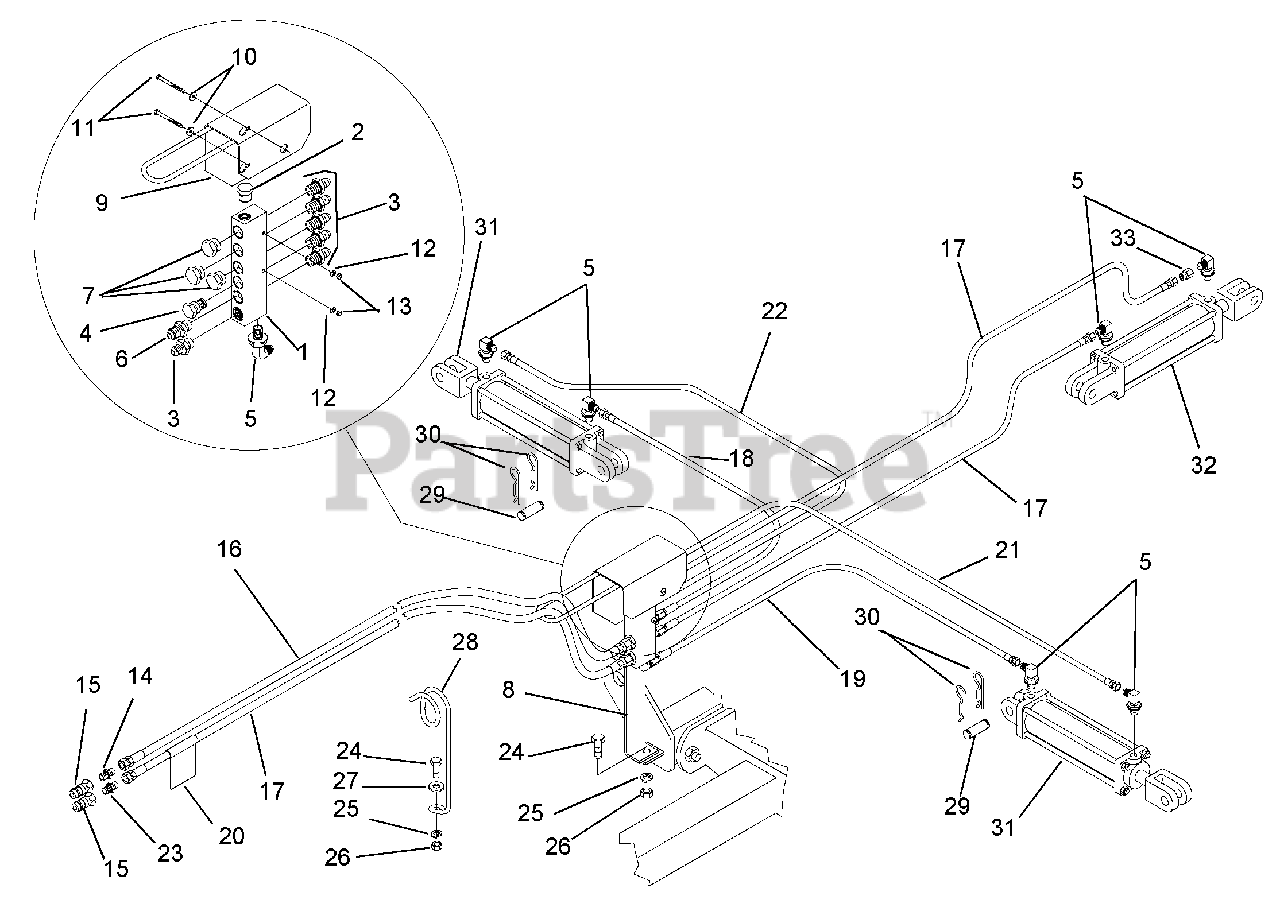

895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Hydraulic Assembly Parts Diagram

Tow-Behind Finishing Mower

Hydraulic Assembly Parts Diagram

  • Title

1

Gravely 02243600

Body, Valve

$

$

Not available

2

Gravely 07500025

Plug, O-Ring Boss 9/16

$

$

Not available

3

Gravely 07001402

Adapter, Hydraulic Fitting .75-16 SAE

$

$

Not available

4

Gravely 02243700

Valve, Check

$

$

Not available

5

Gravely 02111900

Elbow, 90-Degree

$

$

Not available

6

Gravely 07001403

Adapter, Hydraulic Fitting .75-16 SAE

$

$

Not available

7

Gravely 02833400

Assembly, Plug

$

$

Not available

8

Gravely 02940051

Bracket, Valve

$

$

Not available

9

Gravely 02235151

Weldment, Shield

$

$

Not available

10

Gravely 06400423

Washer, Flat .25

$2.49

$

Usually ships in 4-12 days

0

11

Gravely 05900918

Cap Screw, Hex Head .25-20 x 2.5

$

$

Not available

12

Gravely 06300034

Washer, Lock .25

$

$

Not available

13

Gravely 06500523

Nut, Serrated Flange .25-20

$

$

Not available

14

Gravely 02157400

Adapter, Male Straight

$

$

Not available

15

Gravely 02542000

Coupler .50 FNPT QD Male

$

$

Not available

16

Gravely 07001404

Hose, Hydraulic 72-Inch

$

$

Not available

17

Gravely 07001340

Assembly, Hydraulic Hose 72-Inch

$

$

Not available

18

Gravely 07000838

Assembly, Hydraulic Hose

$

$

Not available

19

Gravely 07000839

Hose, Hydraulic

$

$

Not available

20

Gravely 02898900

Tag, Safety

$

$

Not available

21

Gravely 07001405

Assembly, Hydraulic Hose

$

$

Not available

22

Gravely 07000837

Assembly, Hydraulic Hose

$

$

Not available

23

Gravely 02155800

Adapter, Male Straight

$

$

Not available

24

Gravely 05900704

Cap Screw, Hex Head .625-11 x 1.75

$

$

Not available

25

Gravely 06300038

Washer, Lock .625

$

$

Not available

26

Gravely 06500426

Nut, Hex .625

$

$

Not available

27

Gravely 06400427

Washer, Flat .625

$

$

Not available

28

Gravely 02951551

Support, Hose

$

$

Not available

29

Gravely 02929200

Pin, 1-Inch Diameter

$

$

Not available

30

Gravely 06700120

Pin, Cotter .187 x 1.5

$

$

Not available

31

Gravely 02948100

Cylinder, Hydraulic Wing 3 x 12" (see Deck-Lift Cylinders on page 52)

Note: (see Deck-Lift Cylinders on page 52)

$

$

Not available

32

Gravely 02241700

Cylinder, Hydraulic Rear 3 x 8" (see Deck-Lift Cylinders on page 52)

Note: (see Deck-Lift Cylinders on page 52)

$

$

Not available

33

Gravely 02233000

Union, Restrictor

$

$

Not available
