895401 (FP-3132) - Gravely Tow-Behind Finishing Mower (SN: 000101 & Above) Blades, Belts And Pulleys - FP Parts Diagram

Tow-Behind Finishing Mower

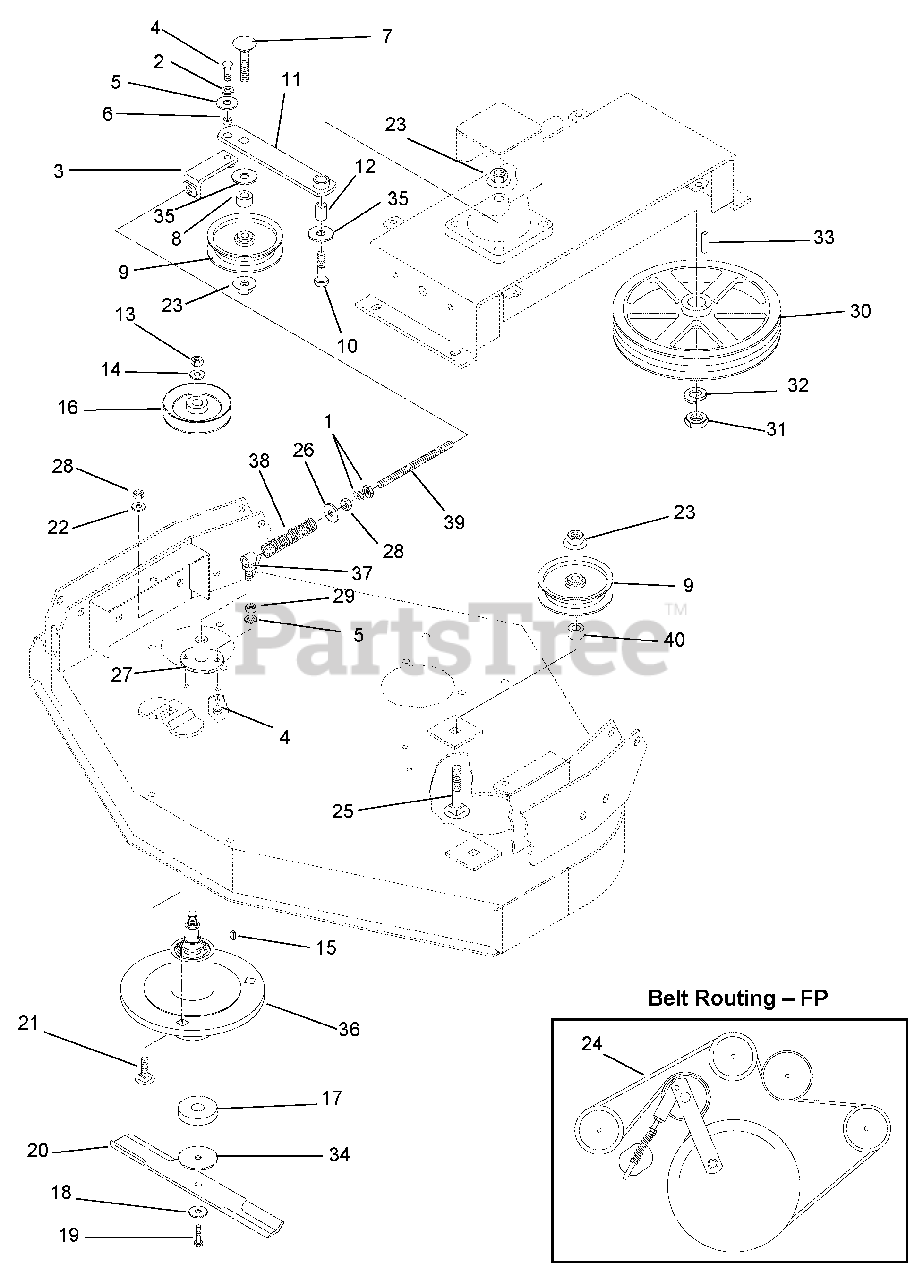

Blades, Belts And Pulleys - FP Parts Diagram

  • Title

1

Gravely 02116100

Nut, Jam .50-13

$

$

Not available

2

Gravely 06300030

Washer, Lock

$

$

Not available

3

Gravely 02935551

Weldment, Adjustment Rod

$

$

Not available

4

Gravely 05900623

Cap Screw, Hex Head .38-16 x 1.25

$

$

Not available

5

Gravely 06400421

Washer, Flat .38

$

$

Not available

6

Gravely 05500810

Bushing

$

$

Not available

7

Gravely 06200026

Bolt, Carriage .625-11 x 3

$

$

Not available

8

Gravely 03294551

Spacer .69

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 02885651

Assembly, Idler
(Superseded to 02885600)

$71.99

$

Usually ships in 4-12 days

0

10

Gravely 05901238

Bolt, Pivot

$

$

Not available

11

Gravely 02935451

Weldment, Idler Arm

$

$

Not available

12

Gravely 05500533

Sleeve, Pivot

$15.99

$

In Stock, only 3 left!

0

13

Gravely 02892600

Nut, Lock .625

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06400511

Washer, Flat .625

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 02145000

Key, Woodruff #606

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 02931400

Sheave 5.50 E.O.D.

$

$

Not available

17

Gravely 06400720

Washer, Blade

$59.48

$

Usually ships in 4-12 days

0

18

Gravely 06400531

Washer, Heavy Duty Safety

$

$

Not available

19

Gravely 05901004

Cap Screw, Hex Head .50-20 x 1.75

$

$

Not available

20

Gravely 02877900

Blade, C.W.

$

$

Not available

21

Gravely 06200107

Bolt, Carriage .50-13 x 1.50

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 06300028

Washer, Lock .50

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 02144400

Nut, Flange .625-11

$3.99

$

Usually ships in 4-12 days

0

24

Gravely 07200424

Belt, HB (115.0)

Note: (115.0)

$69.99

$

Usually ships in 4-12 days

0

25

Gravely 06200037

Bolt, Carriage .625 x 4.50

$9.49

$

In Stock, only 2 left!

0

26

Gravely 06400422

Washer, Flat .50

$3.49

$

Usually ships in 4-12 days

0

27

Gravely 02936000

Weldment, Pivot Mount

$

$

Not available

28

Gravely 06500612

Nut, Hex .50

$3.49

$

Usually ships in 4-12 days

0

29

Gravely 05901004

Cap Screw, Hex Head .50-20 x 1.75

$

$

Not available

30

Gravely 02899251

Sheave, Machined 15.16 Diameter

$924.99

$

Usually ships in 4-12 days

0

31

Gravely 02842800

Nut, Hex M30 x 2

$

$

Not available

32

Gravely 02842700

Washer, Spring Outer Tooth

$18.99

$

Usually ships in 4-12 days

0

33

Gravely 06600201

Key 6mm x 6mm x 30mm

$

$

Not available

34

Gravely 06400851

Spacer

$

$

Not available

35

Gravely 06400511

Washer, Flat .625 SAE

$3.49

$

Usually ships in 4-12 days

0

36

Gravely 02784451

Spindle Assembly (See See BLADE SPINDLE – FP on page 39.)

Note: (See See BLADE SPINDLE – FP on page 39.)

$

$

Not available

37

Gravely 02932551

Weldment, Pivot

$

$

Not available

38

Gravely 08300451

Spring 1.10 O.D.

$

$

Not available

39

Gravely 02936900

Rod, Threaded

$

$

Not available

40

Gravely 02786551

Spacer

$18.99

$

Usually ships in 4-12 days

0
