895033 - Gravely Trailette Sweeper (SN: 000101 & Above) Basket Assembly Parts Diagram

Trailette Sweeper

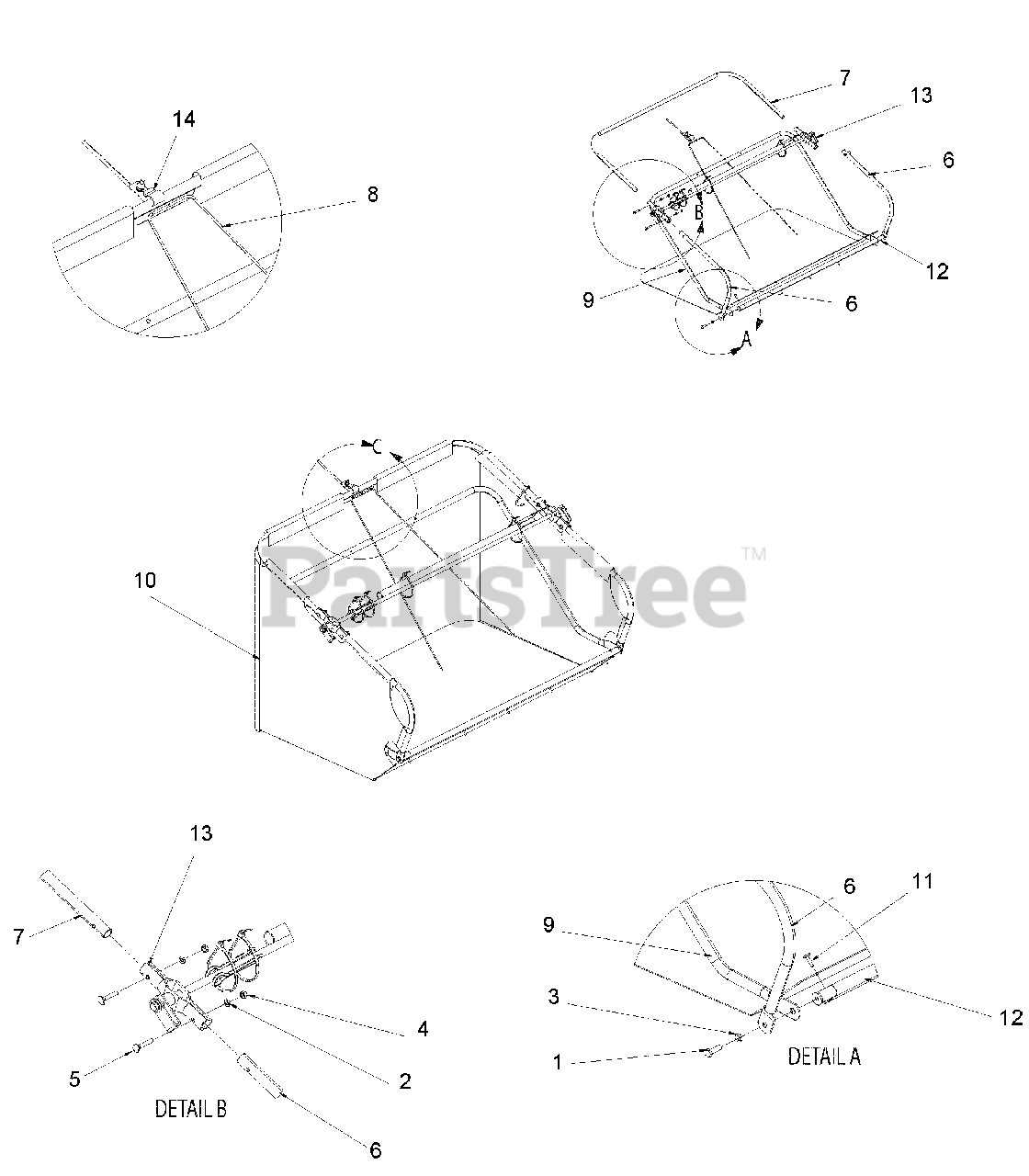

Basket Assembly Parts Diagram

  • Title

1

Gravely 05946900

Bolt .31-18 x 1.00 Hex 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 06308400

Washer, .250 Lock
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06308600

Washer, .313 Lock
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06533200

Nut, 1/4-20 Hex 5
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

5

Gravely P69-416-24

Bolt, 1/4-20 x 1.50 Contour Head

$5.99

$

Usually ships in 4-12 days

0

6

Gravely P76-285-B

Frame Basket, Front

$

$

Not available

7

Gravely P76-326-B

Frame Basket, Rear

$

$

Not available

8

Gravely P83-33-B

Spring, Basket

$

$

Not available

9

Gravely P83-82-C

Frame Basket, Lower

$

$

Not available

10

Gravely 04288400

Basket Bottom and Bag

$

$

Not available

11

Gravely P92-28

Rivet, Bulb Tite

$

$

Not available

12

Gravely PSA-1427-B

Basket Clamp Assembly

$90.99

$

Usually ships in 4-12 days

0

13

Gravely PSA-552-B

Pivot Rod Assembly

$

$

Not available

14

Gravely PSA-969-A

Rope and Clip Assembly

$34.99

$

In Stock, only 1 left!

0

-

Gravely 04295500

Wind Apron Assembly(not shown)

Note: (not shown)

$

$

Not available
