895029 - Gravely Tow-Behind Trailing Lawn Sweeper, Hard Bottom (SN: 000101 & Above) Sweeper Unit Assembly Parts Diagram

Tow-Behind Trailing Lawn Sweeper, Hard Bottom

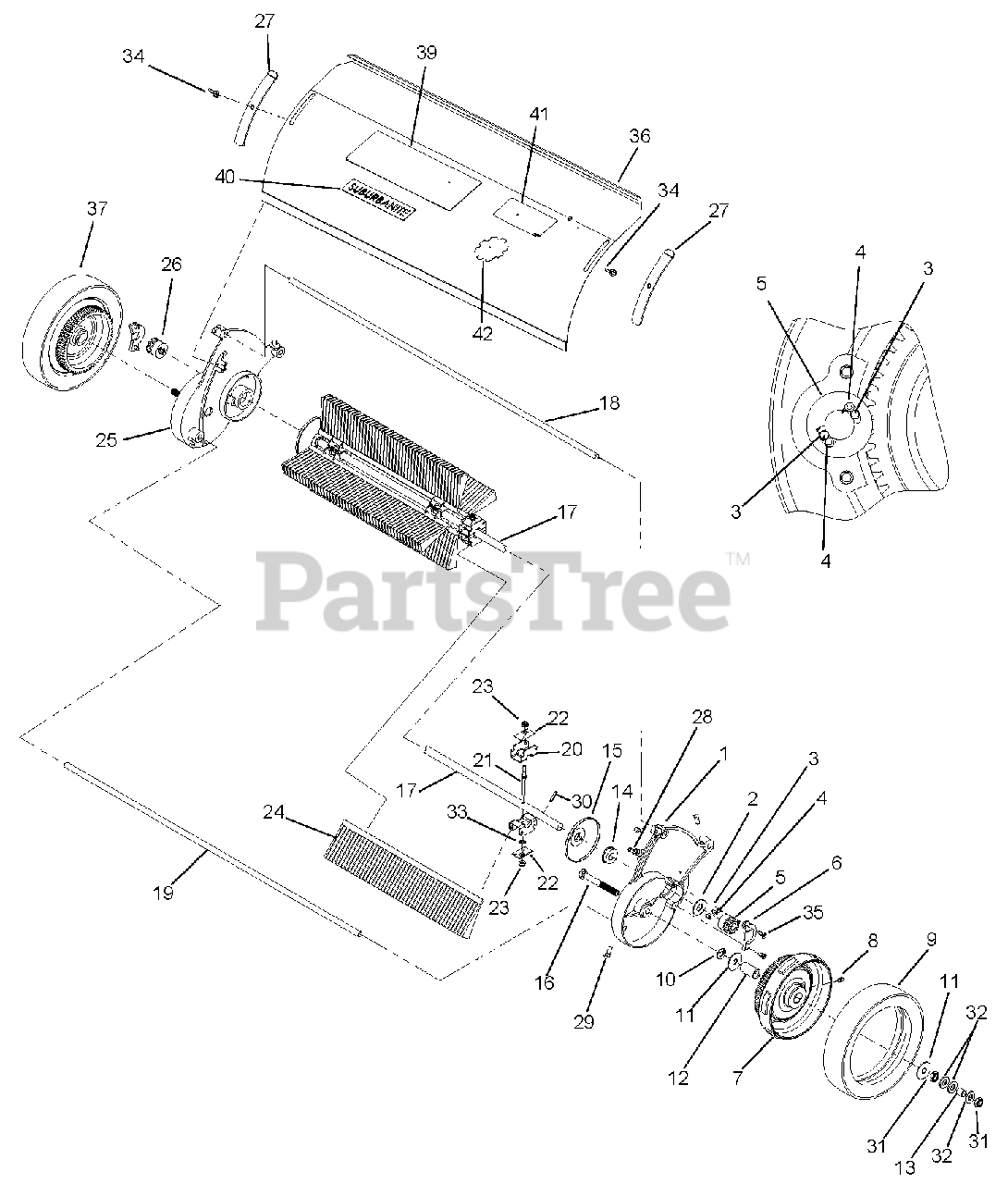

Sweeper Unit Assembly Parts Diagram

  • Title

1

Gravely P76-339-LF

Side Plate, Left Hand

$

$

Not available

2

Gravely P50-33-A

Washer, Flat .656 x 1.50 x .06

$

$

Not available

3

Gravely P74-80-A

Pin, Dowel .1875 OD x .4375

$5.99

$

Usually ships in 4-12 days

0

4

Gravely P76-37-A

Spring, Pawl .188 x .049 x .438

$12.99

$

In Stock, only 1 left!

0

5

Gravely P74-79-IB

Pinion, Left

$

$

Not available

6

Gravely P80-01-B

Casting, Cover Pinion

$

$

Not available

7

Gravely P58-14MCH

Wheel Hub, Drilled

$108.99

$

Usually ships in 4-12 days

0

8

Gravely 07000934

Grease Fitting, 3/16

$3.49

$

Usually ships in 4-12 days

0

9

Gravely P75-88-C

Tire

$36.99

$

Usually ships in 4-12 days

0

10

Gravely P946-816-16

Washer, Fiber

$3.99

$

In Stock, only 2 left!

0

11

Gravely P58-05-A

Washer, Flat .516 x 1.625 x .075
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

12

Gravely P58-06-A

Sleeve

$45.99

$

Usually ships in 4-12 days

0

13

Gravely P68-44-A

Spacer, Axle

$11.99

$

In Stock, only 1 left!

0

14

Gravely P68-60-A

Bearing, Flange Radial

$

$

Not available

15

Gravely P74-166-B

Dust Cover, Wheel Hub

$

$

Not available

16

Gravely P53-35-A

Bolt, Axle 1/2-20 x 4 Special Grade 2, 1-7/8 Thread

$11.99

$

Usually ships in 4-12 days

0

17

Gravely 04229100

Reel Shaft, Plated

$

$

Not available

18

Gravely P68-34-A

Tie Rod, Top

$

$

Not available

19

Gravely P68-33-A

Tie Rod, Front

$

$

Not available

20

Gravely P74-13-C

Bracket

$20.99

$

Usually ships in 4-12 days

0

21

Gravely P74-16-PLT

Plated Stud, Zinc

$

$

Not available

22

Gravely P69-04-A

Clamp, Brush Strip

$6.49

$

Usually ships in 4-12 days

0

23

Gravely 06530100

Nut, Flange Lock .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

24

P1200-17-B

Brush, Sweeper

$

$

Not available

25

Gravely P76-338-RF

Side Plate, Right Hand

$

$

Not available

26

Gravely P74-78-RB

Pinion, Right

$6.99

$

Usually ships in 4-12 days

0

27

Gravely P49-11-A

Clamp, Hood

$23.99

$

Usually ships in 4-12 days

0

28

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 06006125

Set Screw, Square Head
(Superseded to 06000220)

$2.99

$

Usually ships in 4-12 days

0

30

Gravely P67-521-A

Roll Pin, 3/16 x 1-3/4

$

$

Not available

31

Gravely 06544000

Nut, Jam Nylock 1/2-20 Grade 2 YWZC
(Superseded to 06500818)

$5.99

$

Usually ships in 4-12 days

0

32

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095 YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

33

Gravely P75-89-A

Nut, Speed 1/4

$4.76

$

In Stock, only 2 left!

0

34

Gravely 06503800

Nut, Wing 5/16-18 Steel Plated

$2.49

$

Usually ships in 4-12 days

0

35

Gravely 06006130

Screw, Flat Head 1/4-20 x 5/8

$1.49

$

Usually ships in 4-12 days

0

36

Gravely 04292100

Hood with Decals

$

$

Not available

37

Gravely PSA-609-C

Sweeper Tire/Wheel Assembly (includes items 7, 8 & 9)

Note: (includes items 7, 8 & 9)

$

$

Not available

38

Gravely PSA-1580-B

Pinion Kit (includes items 3, 4, 5 & 26)

Note: (includes items 3, 4, 5 & 26)

$

$

Not available

39

Gravely 05240000

Decal, Gravely Logo

$

$

Not available

40

Gravely 04199900

Decal, Suburbanite

$

$

Not available

41

Gravely 04147800

Decal, Danger Read Manual

$

$

Not available

42

Gravely 08000507

Decal, Gravely, Heritage Small

$28.99

$

Usually ships in 4-12 days

0
