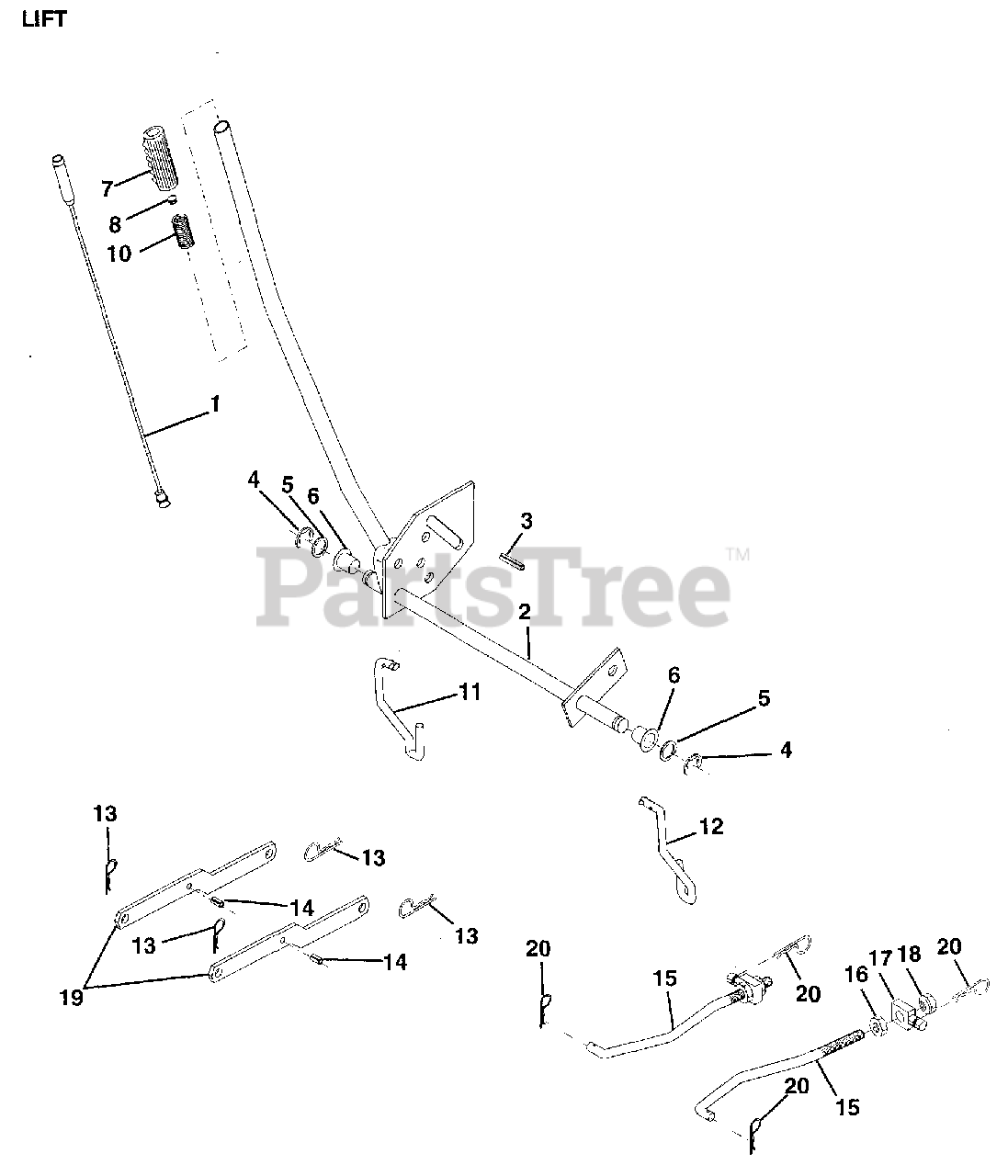

8927 B - Electrolux/AYP Lawn Tractor LIFT Parts Diagram

Lawn Tractor

LIFT Parts Diagram

  • Title
1

Electrolux/AYP 136973

WIRE ASM
(Superseded to 532136973)

$

$

Not available

2

Electrolux/AYP 137111

SHAFT.ASM.LIFT LH

$

$

Not available

3

Electrolux/AYP 138284

PIN GROOVE
(Superseded to 532138284)

$6.49

$

Usually ships in 3-10 days

0

$

$

Not available

5

Electrolux/AYP 19211416

WASHER
(Superseded to 819212016)

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 120183X

NYLON BEARING
(Superseded to 532120183)

$6.99

$

In Stock, only 3 left!

0

7

Electrolux/AYP 109413X

GRIP
(Superseded to 532109413)

$7.99

$

In Stock, only 1 left!

0

8

Electrolux/AYP 124526X

SUB= 125925X

$

$

Not available

10

Electrolux/AYP 122512X

SUB= 532122512

$

$

Not available

11

Electrolux/AYP 134619

LINK LIFT LH
(Superseded to 532134619)

$34.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 135388

LIFT LINK RH

$

$

Not available

13

Murray 4939M

SUB= 85902

$

$

Not available

14

Electrolux/AYP 135563

"PIN,SPRING"
(Superseded to 532135563)

$4.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 127218

LINK.FRONT
(Superseded to 532127218)

$17.99

$

In Stock, only 4 left!

0

16

Electrolux/AYP 73350800

NUT
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

17

Electrolux/AYP 130171

TRUNION
(Superseded to 532175689)

$

$

Not available

18

Electrolux/AYP 73800800

NUT.LK.W/WSH.1/2.
(Superseded to 596433401)

$3.99

$

In Stock, Qty 16

0

19

Electrolux/AYP 130832

SUB= 130833
(Superseded to 532130832)

$

$

Not available

20

Electrolux/AYP 3146R

RETAINER.SPRING
(Superseded to 532003146)

$3.99

$

In Stock, Qty 20+

0
