892055 - Gravely Rear 3-Bag Bagger for Pro-Turn 300/500/600 (SN: 000101 & Above) Blower Housing Assembly Parts Diagram

Rear 3-Bag Bagger for Pro-Turn 300/500/600

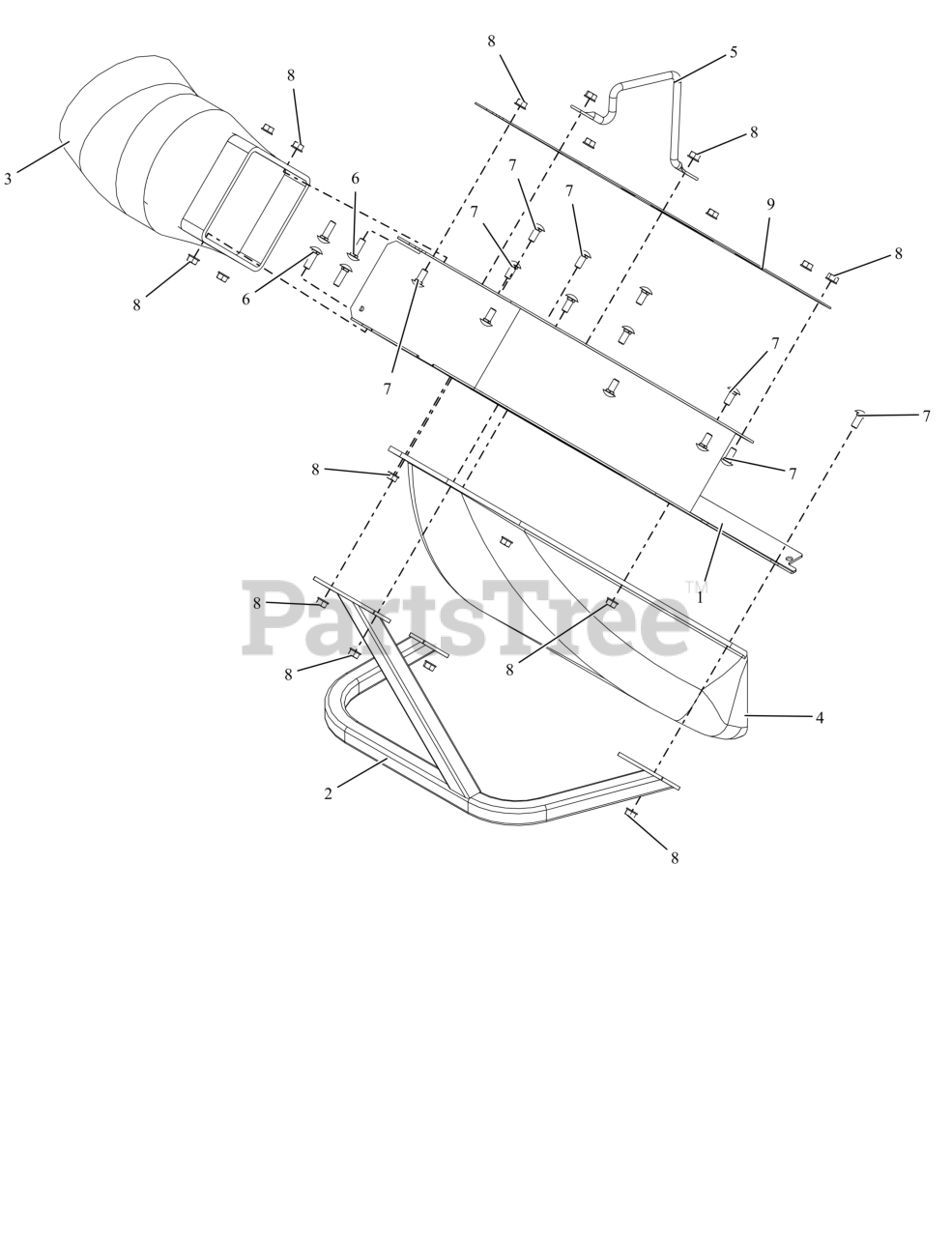

Blower Housing Assembly Parts Diagram

  • Title
Not Shown

Gravely 59112500

BLOWER ASSEBMLY, SERVICE

Note: Component Blower Service Assembly

$1086.99

$

Usually ships in 4-12 days

0

1

Gravely 05143651

WLDMT, HOUSING SCROLL (BLACK)

$297.99

$

Usually ships in 4-12 days

0

2

Gravely 09394851

WLDMT, BLOWER GUARD (BLACK)

$219.99

$

Usually ships in 4-12 days

0

3

Gravely 00452200

ADAPTER, HOSE

$

$

Not available

4

Gravely 05144600

PLENUM, GRASS PUMP

$122.99

$

Usually ships in 4-12 days

0

5

Gravely 05147051

HANDLE, BOLT-ON

$35.99

$

Usually ships in 4-12 days

0

6

Gravely 06200237

BLT,RHSSN .31-18X1.00 G5 ZCC

$2.49

$

In Stock, only 3 left!

0

7

Gravely 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

9

Gravely 59112900

PLT, BLOWER COVER (BLACK)

$

$

Not available
