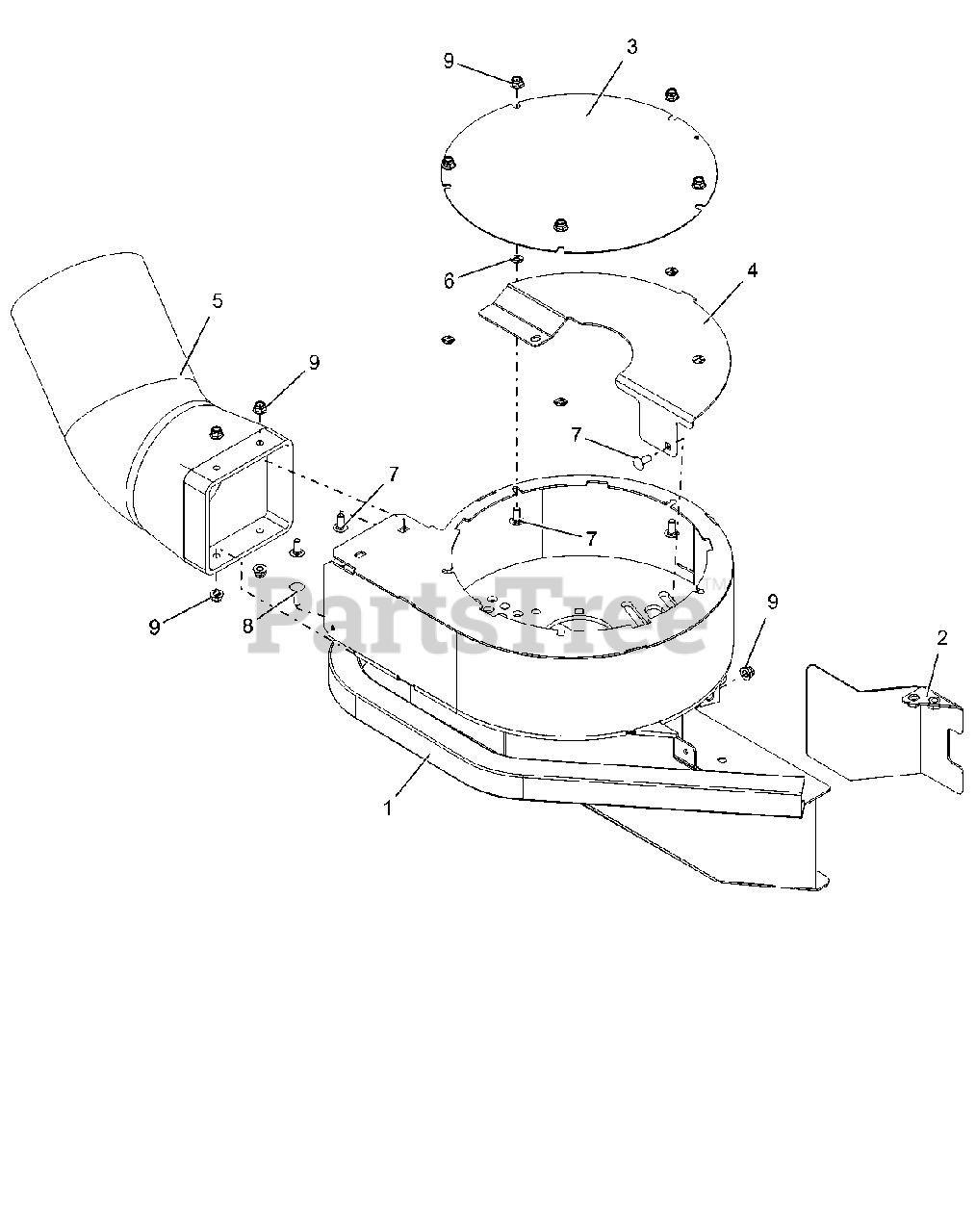

892051 - Gravely Peco 3-Bag Bagger (SN: 001000 & Above) Baffle And Blower Housing - 60" Parts Diagram

Peco 3-Bag Bagger

Baffle And Blower Housing - 60" Parts Diagram

  • Title
1

Gravely 59215900

BLOWER ASSEMBLY, SERVICE

Note: SERVICE PART - COMPLETE ASSEMBLY

$1612.99

$

Usually ships in 4-12 days

0

1

Gravely 04581053

COMM BAGGER BLOWER WLDMT - RED

$845.99

$

Usually ships in 4-12 days

0

2

Gravely 04589851

60" FRT BLOWER BAFFLE WMT -BLK

$36.99

$

Usually ships in 4-12 days

0

2

Gravely 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

Note: NOT SHOWN

$1.49

$

In Stock, Qty 20+

0

3

Gravely 00451953

COVER, BLOWER-RED

$30.99

$

Usually ships in 4-12 days

0

4

Gravely 04587900

COVER, BOTTOM

$

$

Not available

5

Gravely 04714700

ADAPTER-HOSE 52/60"

$142.99

$

In Stock, only 3 left!

0

6

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

8

Gravely 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0
