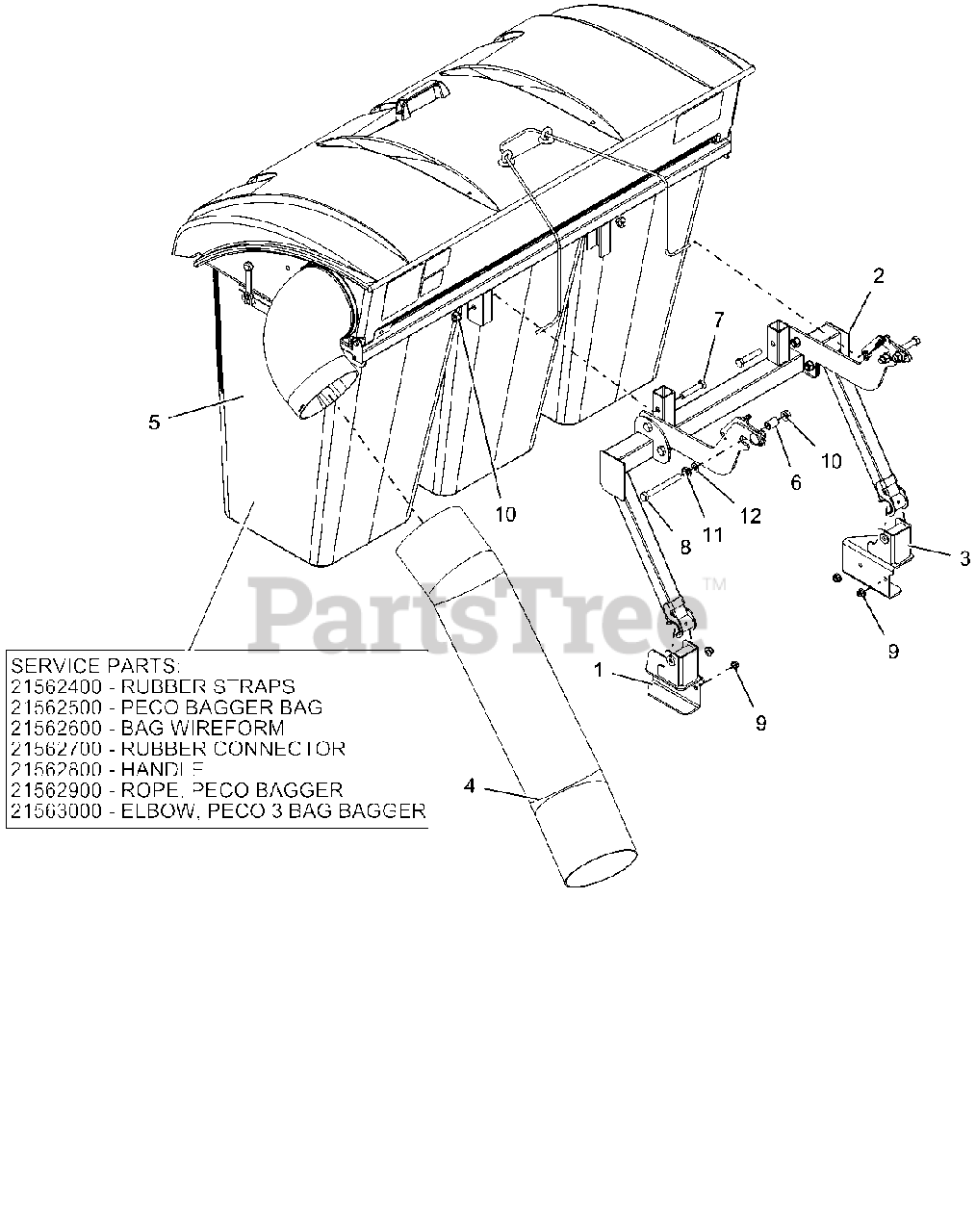

892051 - Gravely Peco 3-Bag Bagger (SN: 000101 - 000999) Bagger, Hose And Mount Parts Diagram

Peco 3-Bag Bagger

Bagger, Hose And Mount Parts Diagram

  • Title
1

Gravely 04958451

WLDMT, BAGGER MOUNT RH (BLACK)

$

$

Not available

2

Gravely 04958551

WLDMT, BAGGER POST (BLACK)

$258.99

$

In Stock, only 1 left!

0

3

Gravely 04958951

WLDMT, BAGGER MOUNT LH (BLACK)

$100.99

$

Usually ships in 4-12 days

0

4

Gravely 04588400

HOSE, BAGGER 7 X 49

$155.99

$

Usually ships in 4-12 days

0

5

Gravely 04989900

BAGGER, PECO 3 BAG RECEPTACLE

$

$

Not available

5

Gravely 21562400

RUBBER STRAPS

Note: SERVICE PART

$33.99

$

Usually ships in 4-12 days

0

5

Gravely 21562500

PECO BAGGER BAG
(Superseded to 05248800)

Note: SERVICE PART

$90.99

$

In Stock, only 4 left!

0

5

Gravely 21562600

BAG WIREFORM
(Superseded to 05194800)

Note: SERVICE PART

$45.99

$

In Stock, only 1 left!

0

5

Gravely 21562700

RUBBER CONNECTOR
(Superseded to 07500425)

Note: SERVICE PART

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 21562800

HANDLE

Note: SERVICE PART

$18.99

$

Usually ships in 4-12 days

0

5

Gravely 21562900

ROPE, PECO BAGGER

Note: SERVICE PART

$

$

Not available

5

Gravely 21563000

ELBOW, PECO 3 BAGGER

Note: SERVICE PART

$90.99

$

Usually ships in 4-12 days

0

6

Gravely 09357700

SPACER, .510 X .750 X 1.148

$4.99

$

In Stock, only 3 left!

0

7

Gravely 05966600

BLT-HEX .50-13X2.50 GR5 YWZC
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

8

Gravely 05900102

BLT-HEX .50-13X4.50 GR8 FULL THD YWZC
(Superseded to 05901736)

$9.49

$

In Stock, only 1 left!

0

9

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06543600

NUT, LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06543300

NUT .50-13 WIZ FLANGE
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZC
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 59215900

BLOWER ASSEMBLY

Note: SERVICE PART (NOT SHOWN)

$1612.99

$

Usually ships in 4-12 days

0
