892049 - Gravely Bagger, 12 Cu. Ft. Hopper Bagger (SN: 040000 & Above) Hopper Assembly Parts Diagram

Bagger, 12 Cu. Ft. Hopper Bagger

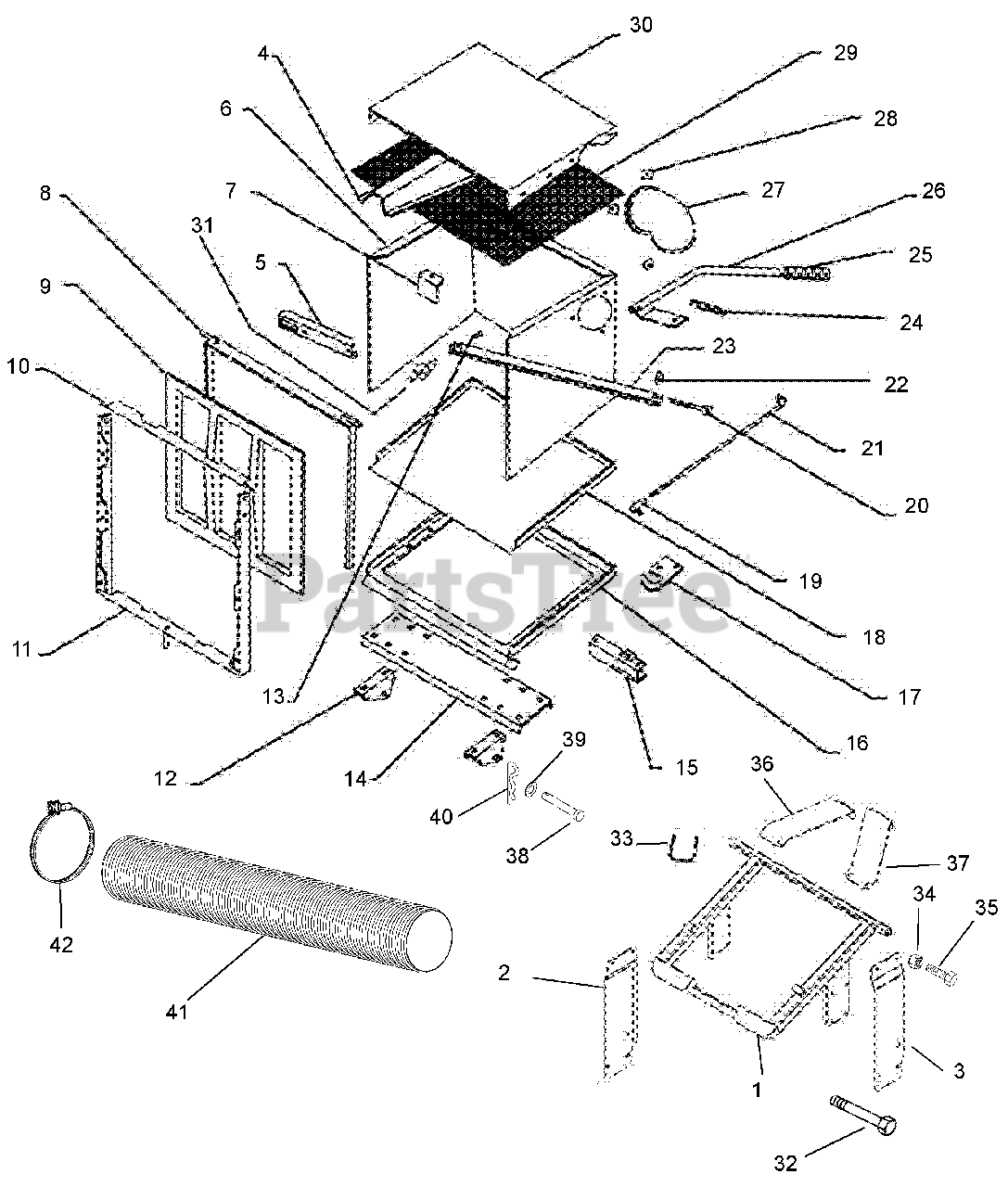

Hopper Assembly Parts Diagram

  • Title

1

Gravely 04813701

Frame, Main

$

$

Not available

2

Gravely 04813702

Frame, Main Left Leg

$

$

Not available

3

Gravely 04813703

Frame, Main Right Leg

$

$

Not available

4

Gravely 00193700

Screen Support

$

$

Not available

5

Gravely 00193500

Handle Mount

$149.99

$

Usually ships in 4-12 days

0

6

Gravely 00193600

Box Back and Sides

$

$

Not available

7

Gravely 00194000

Fill Gauge

$45.99

$

Usually ships in 4-12 days

0

8

Gravely 00193400

Box Door/Frame

$

$

Not available

9

Gravely 00193000

Plastic Door

$756.99

$

Usually ships in 4-12 days

0

10

Gravely 00193300

Upper Door Member

$162.99

$

Usually ships in 4-12 days

0

11

Gravely 00192900

Door Frame Assembly

$

$

Not available

12

Gravely 00192800

Pivot Bracket

$

$

Not available

13

Gravely 00194100

Linkage Pin

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 00192700

Base Frame Pivot Mount

$168.99

$

Usually ships in 4-12 days

0

15

Gravely 00192600

Latch Hook Plate

$

$

Not available

16

Gravely 00193100

Base Frame

$

$

Not available

17

Gravely 00192500

Latch Hook

$

$

Not available

18

Gravely 00193200

Box Bottom

$598.99

$

Usually ships in 4-12 days

0

19

Gravely 00192400

Ball Joint

$

$

Not available

20

Gravely 07068800

Adjusting Screw

$8.49

$

Usually ships in 4-12 days

0

21

Gravely 00192300

Latch Rod

$168.99

$

Usually ships in 4-12 days

0

22

Gravely 06545600

Nut, Adjusting

$10.99

$

Usually ships in 4-12 days

0

23

Gravely 00192200

Rod, Linkage

$149.99

$

Usually ships in 4-12 days

0

24

Gravely 08354400

Spring, Latch

$16.99

$

Usually ships in 4-12 days

0

25

Gravely 07538700

Grip, Handle

$26.99

$

Usually ships in 4-12 days

0

26

Gravely 00192100

Handle, Box

$336.99

$

Usually ships in 4-12 days

0

27

Gravely 00192000

Inlet

$94.99

$

Usually ships in 4-12 days

0

28

Gravely 00191900

Clamp, Inlet

$11.99

$

Usually ships in 4-12 days

0

29

Gravely 00193800

Screen

$

$

Not available

30

Gravely 00193900

Box Top, Aluminum

$639.99

$

Usually ships in 4-12 days

0

31

Gravely 06715100

Rue-Lock Pins

$

$

Not available

32

Gravely 05961400

Bolt, Hex ..38-16 x 2.75
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

33

Gravely 04813707

U-Bolt, ROPS Mounting

$

$

Not available

34

Gravely 06545500

Nut, Nylon Lock .375-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 04813704

Bracket, LH ROPS Support

$

$

Not available

37

Gravely 04813705

Bracket, RH ROPS Support

$

$

Not available

38

Gravely 00673600

Pin, Detent .625 x 3.00

$

$

Not available

39

Gravely 06442800

Washer Flat Steel .656 x 1.31 .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

40

Gravely 06715000

Pin, Hair .156 x 2.625

$

$

Not available

41

Gravely 00486100

Hose, 7 x 63" Kanaflex 165CL

$252.99

$

Usually ships in 4-12 days

0

42

Gravely 02770200

Clamp, Tool-Less Hose

$45.99

$

Usually ships in 4-12 days

0
