892043 - Gravely Pro Series, 60", 66" Decks (SN: 000101 & Above) 18" Blower Parts List - Pro Series Parts Diagram

Pro Series, 60", 66" Decks

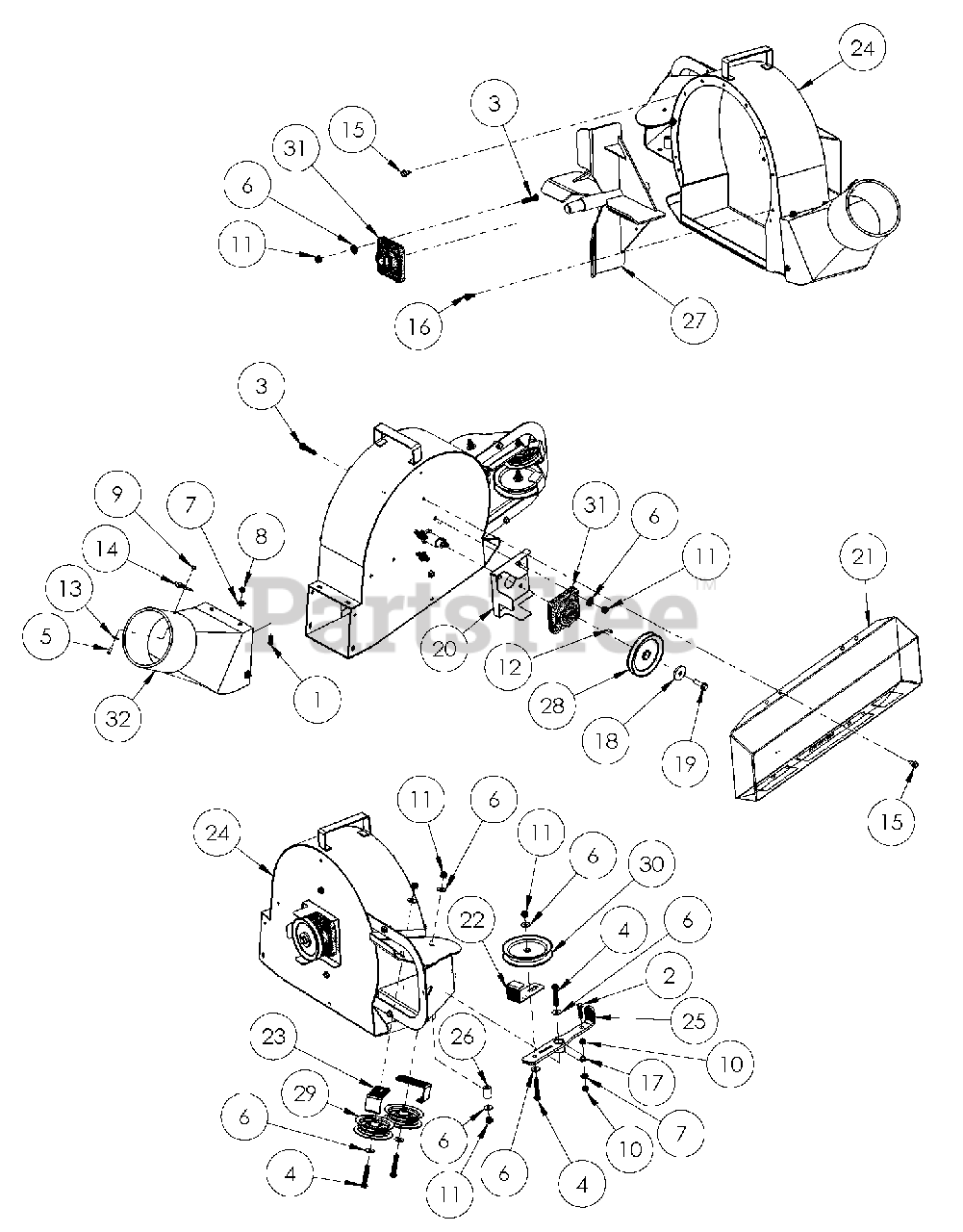

18" Blower Parts List - Pro Series Parts Diagram

  • Title

1

Gravely 05946800

Cap Screw 1/4-20 X .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 05947500

CS 5/16-18 X 1 1/4 G5
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

3

Gravely 05957900

Cap Screw 3/8-16 X 1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

4

Gravely 05963300

Cap Screw 3/8-16 X 2.00
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

5

Gravely 06116700

#10 X 1/2" Screw
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06437200

5/16" Flat Washer
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06437300

1/4" USS Washer
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06531000

1/4-20 Nylon Insert Nut
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 06536000

#10-24 Nylon Insert Nut
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06545400

5/16-18 Nylon Insert Nut
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06545500

3/8-16 Nylon Insert Nut
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 21700400

Key 3/16 Sq X .50

$

$

Not available

13

Gravely 21700500

#10 Fender Washer

$

$

Not available

14

Gravely 21700600

Spring Clip

$

$

Not available

15

Gravely 21700700

5/16 X 5/8" Selt Tap Screw

$

$

Not available

16

Gravely 21700800

Selt-Tapping Screw 5/16 - .750

$

$

Not available

17

Gravely 21700900

Belt Drive Tension Spring

$

$

Not available

18

Gravely 27100200

Flat Washer, .39 ID X 1.5 OD X .188", YZ

$

$

Not available

19

Gravely 27100300

Cap Screw Serrated Flange 3/8-16 X 1.25

$

$

Not available

20

Gravely 27100800

Driven Belt Guide

$

$

Not available

21

Gravely 27100900

Pulley/ Belt Cover

$

$

Not available

22

Gravely 27101000

Large Idler Belt Guide

$

$

Not available

23

Gravely 27101100

Belt Guide (Small Idler)

Note: (Small Idler)

$

$

Not available

24

Gravely 27101200

Vertical Blower Housing

$

$

Not available

25

Gravely 27101300

Idler W/A

$

$

Not available

26

Gravely 27101400

Idler Bushing

$

$

Not available

27

Gravely 27101500

18" Bent Blade Impeller

$

$

Not available

28

Gravely 27103100

Pulley, 4 1/2" A, 3/4" ID

$

$

Not available

29

Gravely 27103200

Idler Pulley, 3" High Flange, 3/8" ID

$

$

Not available

30

Gravely 27103300

5" 'V' Groove Idler

$

$

Not available

31

Gravely 27103400

SQT Pillowblock BRG 1.0" I.D.

$

$

Not available

32

Gravely 27103500

Transition Chute - Revised

$

$

Not available
