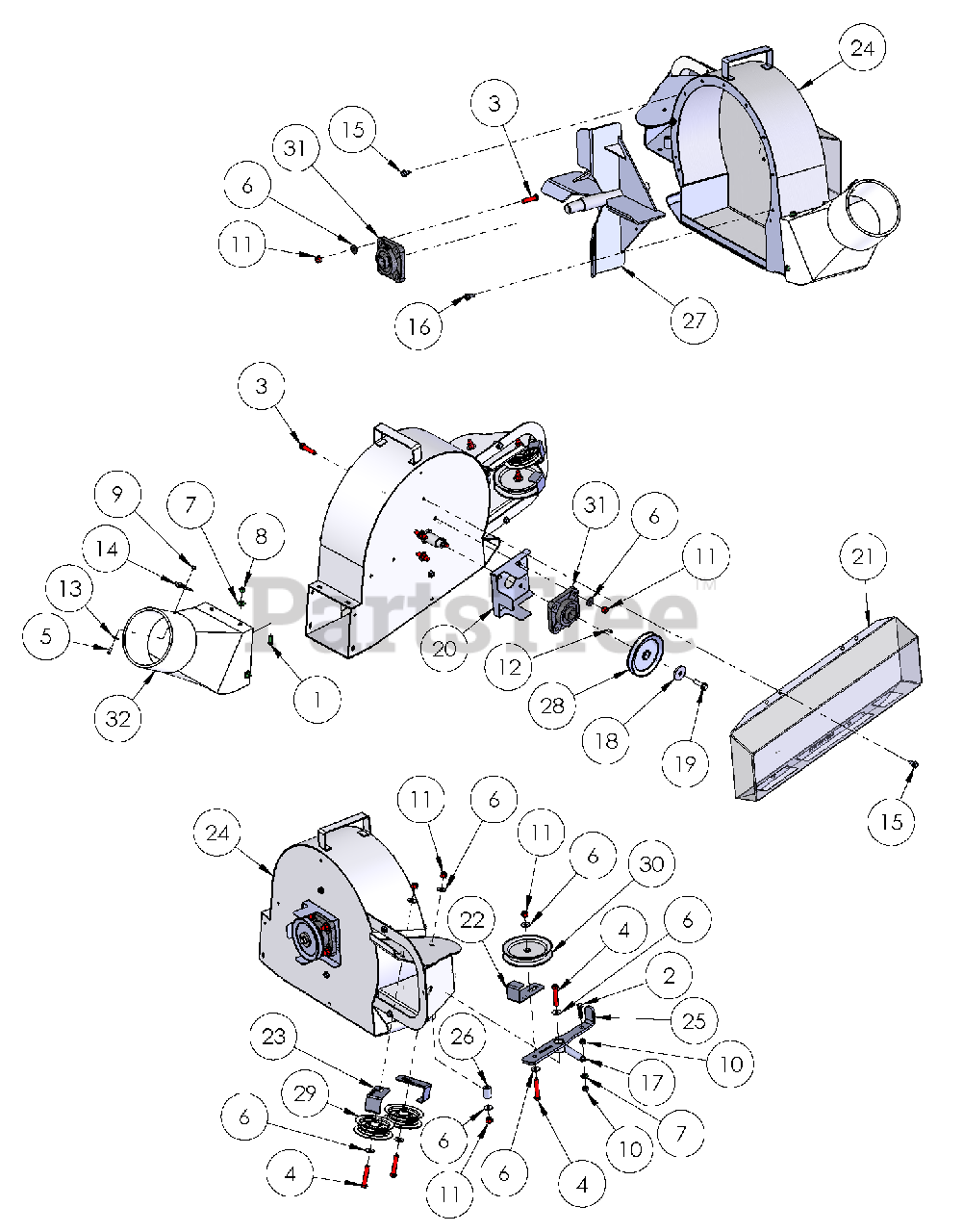

892043 - Ariens Pro Series 3-Bag Bagger for 60" and 66" Decks (SN: 000101 & Above) 18" Blower Parts List - Pro Series Parts Diagram

Pro Series 3-Bag Bagger for 60" and 66" Decks

18" Blower Parts List - Pro Series Parts Diagram

  • Title

1

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

3

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

4

Ariens 05963300

@BLT-HEX .38-16X2.00 GR5 YWZC
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

5

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

9

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 21700400

KEY 3/16 SQ X .50

$

$

Not available

13

Ariens 21700500

#10 FENDER WASHER

$

$

Not available

14

Ariens 21700600

SPRING CLIP

$

$

Not available

15

Ariens 21700700

5/16 X 5/8" SELF TAP SCREW

$

$

Not available

16

Ariens 21700800

SELF-TAPPING SCREW 5/16 - .750

$

$

Not available

17

Ariens 21700900

BELT DRIVE TENSION SPRING

$

$

Not available

18

Ariens 27100200

FLAT WASHER, .39 ID X 1.5 OD

$

$

Not available

19

Ariens 27100300

CAP SCREW SERRATED 3/8-16X1.25

$

$

Not available

20

Ariens 27100800

DRIVEN BELT GUIDE

$

$

Not available

21

Ariens 27100900

PULLEY / BELT COVER

$

$

Not available

22

Ariens 27101000

LARGE IDLER BELT GUIDE

$

$

Not available

23

Ariens 27101100

BELT GUIDE (SMALL IDLER)

Note: (Small Idler)

$

$

Not available

24

Ariens 27101200

VERTICAL BLOWER HOUSING

$

$

Not available

25

Ariens 27101300

IDLER W/A

$

$

Not available

26

Ariens 27101400

IDLER BUSHING

$

$

Not available

27

Ariens 27101500

18" BENT BLADE IMPELLER

$

$

Not available

28

Ariens 27103100

PULLEY, 4 1/2" A, 3/4" ID

$

$

Not available

29

Ariens 27103200

IDLER PULLEY, 3" HIGH FL 3/8ID

$

$

Not available

30

Ariens 27103300

5" 'V' GROOVE IDLER

$

$

Not available

31

Ariens 27103400

SQT PILLOWBLOCK BRG 1.0" I.D.

$

$

Not available

32

Ariens 27103500

TRANSITION CHUTE - REVISED

$

$

Not available
