892040 - Gravely Grass Collection System (SN: 000101 & Above) Blower Housing Assembly Parts Diagram

Grass Collection System

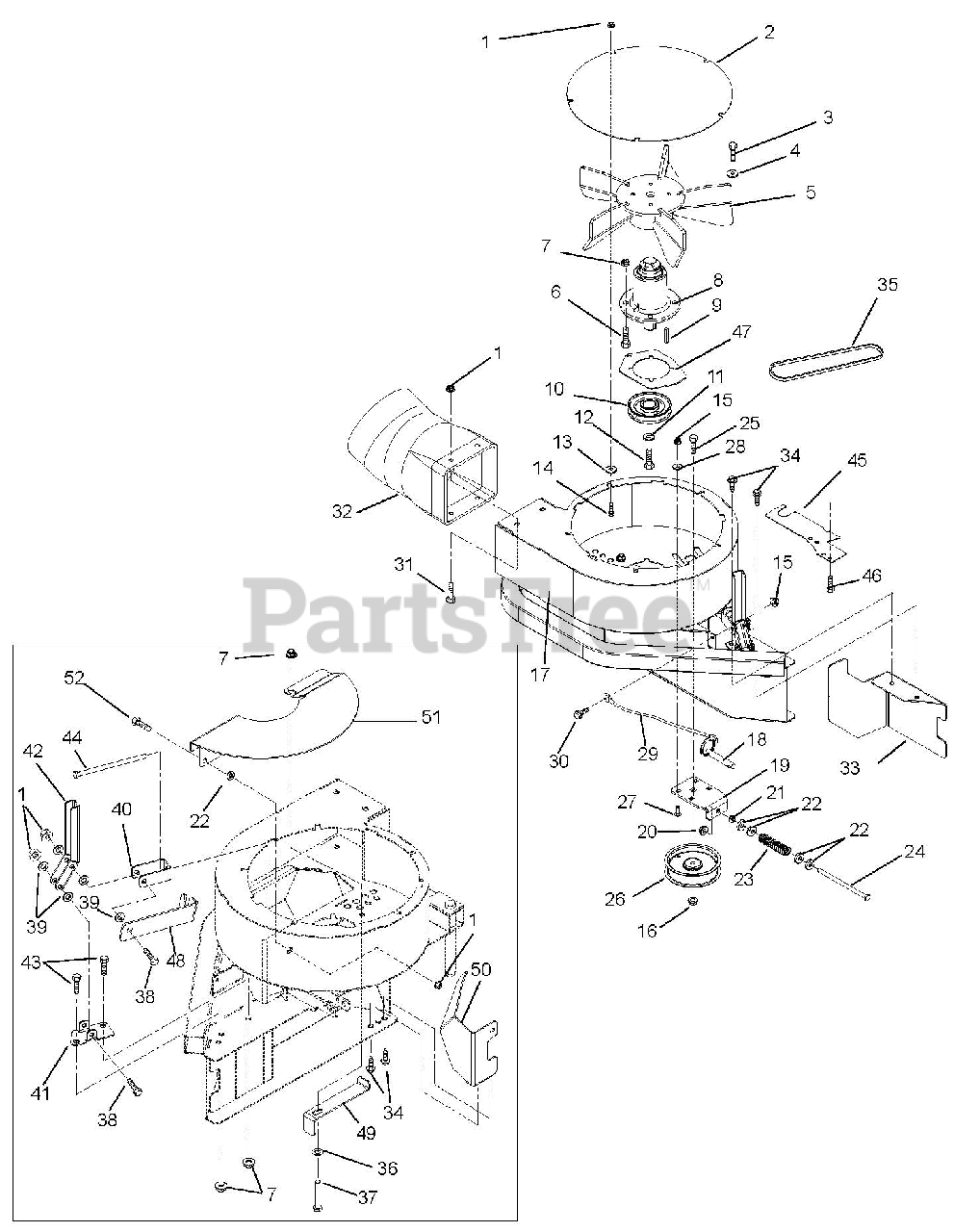

Blower Housing Assembly Parts Diagram

  • Title

1

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 00451951

Cover, Blower

$34.99

$

Usually ships in 4-12 days

0

3

Gravely 05978900

Bolt, Hex .62-18 x 1.75
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

4

Gravely 06445700

Washer, Bevelled .63 x 1.625 x .14

$4.99

$

In Stock, only 3 left!

0

5

Gravely 00468200

Weldment, Impeller

$238.99

$

Usually ships in 4-12 days

0

6

Gravely 05958000

Bolt, Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 58803600

Maintenance Free Spindle Assembly

$262.99

$

In Stock, only 1 left!

0

9

Gravely 06611200

Key, Square .25 x .25 x 1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

10

Gravely 04903900

Weldment, Pulley-V 3.50 x 1.004 with Key
(Superseded to 07333467)

$67.99

$

In Stock, only 1 left!

0

11

Gravely 06441700

Washer, Flat Steel .39 x 1.5 x .125

$3.99

$

In Stock, only 1 left!

0

12

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06514900

Nut, Push .312

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06220800

Bolt, Round Head Square Short Neck .31-18 x .75 Grade 5
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

15

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 00469851

Weldment, Blower Housing

$597.99

$

Usually ships in 4-12 days

0

18

Gravely 01593500

Pin, Spring Ball .375OD x 1.50

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 00168100

Bracket, Adjustable Idler

$

$

Not available

20

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 06530400

Nut, Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06439100

Washer, Flat Steel .38 x .87 x .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

23

Gravely 08312100

Spring, Compression .092 x .77 x 3.13

$11.99

$

In Stock, Qty 6

0

24

Gravely 05957600

Bolt, Hex .31-18 x 5.50 Grade 5
(Superseded to 05901926)

$3.49

$

Usually ships in 4-12 days

0

25

Gravely 05958500

Bolt, Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 07327100

Pulley, Idler 4.00

$37.99

$

In Stock, Qty 16

0

27

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 13

0

28

Gravely 05513400

Bushing, Flange .265 x .437 x .250 x .750

$2.49

$

In Stock, only 3 left!

0

29

Gravely 06927100

Cable, Hood

$14.99

$

In Stock, only 1 left!

0

30

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 00452200

Adapter, Hose

$

$

Not available

33

Gravely 00469551

Baffle, Blower 52"

$50.99

$

Usually ships in 4-12 days

0

33

Gravely 00469600

Baffle, Blower 60"

$

$

Not available

34

Gravely 07415400

Screw, Tapping .38-16 x .50 Hex Washer Head
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 07236200

V-Belt, 52" Mower Deck

$34.99

$

In Stock, Qty 10

0

35

Gravely 07213200

V-Belt, 60" Mower Deck

$44.99

$

Usually ships in 4-12 days

0

35

Gravely 07235800

V-belt, 66" Mower Deck

$39.99

$

In Stock, only 2 left!

0

36

Gravely 06436200

Washer, Flat, STL .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 05957200

Bolt, Hex .31-18 x 2.00 Grade 5
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 06433600

Washer, Flat - Nylon .375 x .75 x .060

$0.99

$

In Stock, Qty 11

0

40

Gravely 00474251

Link, Idler Release

$18.99

$

Usually ships in 4-12 days

0

41

Gravely 00474451

Mount, Idler Release Lever

$19.99

$

Usually ships in 4-12 days

0

42

Gravely 00474351

Lever, Idler Release

$26.99

$

Usually ships in 4-12 days

0

43

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 05957600

Bolt, Hex .31-18 x 5.50 Grade 5
(Superseded to 05901926)

$3.49

$

Usually ships in 4-12 days

0

45

Gravely 04146851

Finger Guard

$

$

Not available

46

Gravely 05947900

Bolt, Hex .25-20 x .50 Grade 5
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

47

Gravely 00583851

Plate, Bearing Housing Support

$23.99

$

Usually ships in 4-12 days

0

48

Gravely 00952451

Lock, Idler Release Lever

$11.99

$

Usually ships in 4-12 days

0

49

Gravely 00956151

Finger - Belt

$13.99

$

Usually ships in 4-12 days

0

50

Gravely 00887651

Baffle, Blower - Rear - 52"/60"/66"
(Superseded to 59209500)

$57.99

$

Usually ships in 4-12 days

0

51

Gravely 03266751

Cover, Bottom Plate

$54.99

$

Usually ships in 4-12 days

0

52

Gravely 05947000

Bolt, Hex .31-18 x 0.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0
