892030 - Gravely Grass Collection System 200 Series Bagger (SN: 002000 & Above) Bagger Mount Parts Diagram

Grass Collection System 200 Series Bagger

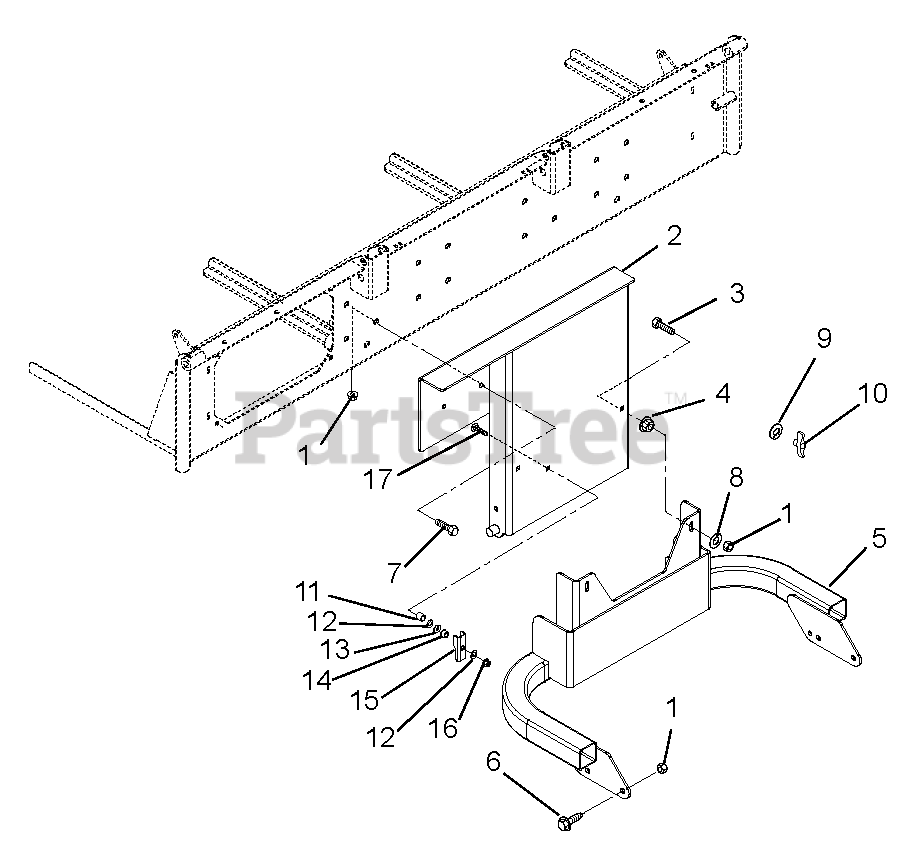

Bagger Mount Parts Diagram

  • Title

1

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 00460951

Upper Mount, 3-Bag

$258.99

$

Usually ships in 4-12 days

0

3

Gravely 06223800

Bolt, Round Head Square Neck .38-16 x 1.75 Grade 5
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

4

Gravely 06534900

Nut, Spinlock Flange .375
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 00455851

Mount, Bagger 200 Series

$355.99

$

Usually ships in 4-12 days

0

6

Gravely 05961100

Bolt, Hex .38-16 x 3.25 Grade 5
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

7

Gravely 05948700

Bolt, Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

9

Gravely 06306500

Washer, Locking .375 x .115 Heavy (Tool-less hardware option)
(Superseded to 06300120)

Note: (Tool-less hardware option)

$3.49

$

In Stock, only 1 left!

0

10

Gravely 07500109

Knob, Wing .38-16 UNC NYL/TALC (Tool-less hardware option)

Note: (Tool-less hardware option)

$4.99

$

In Stock, only 1 left!

0

11

Gravely 00186400

Spacer .41 x .75 x .88

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 06435900

Washer, Flat Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 03704900

Wave Washer .640 x .875 x .125 Free Height

$2.49

$

In Stock, only 4 left!

0

14

Gravely 05508900

Bushing, Sleeve .377 x .624 x .235

$9.49

$

In Stock, only 1 left!

0

15

Gravely 00610751

Latch, Bagger Upper Mount

$18.99

$

Usually ships in 4-12 days

0

16

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06224300

Bolt, Round Head Square Neck .38-16 x 2.00 Grade 5
(Superseded to 06200314)

$3.99

$

In Stock, only 4 left!

0
