892026 - Gravely 50" Bagger (SN: 000101 & Above) Pulleys And Covers Parts Diagram

50" Bagger

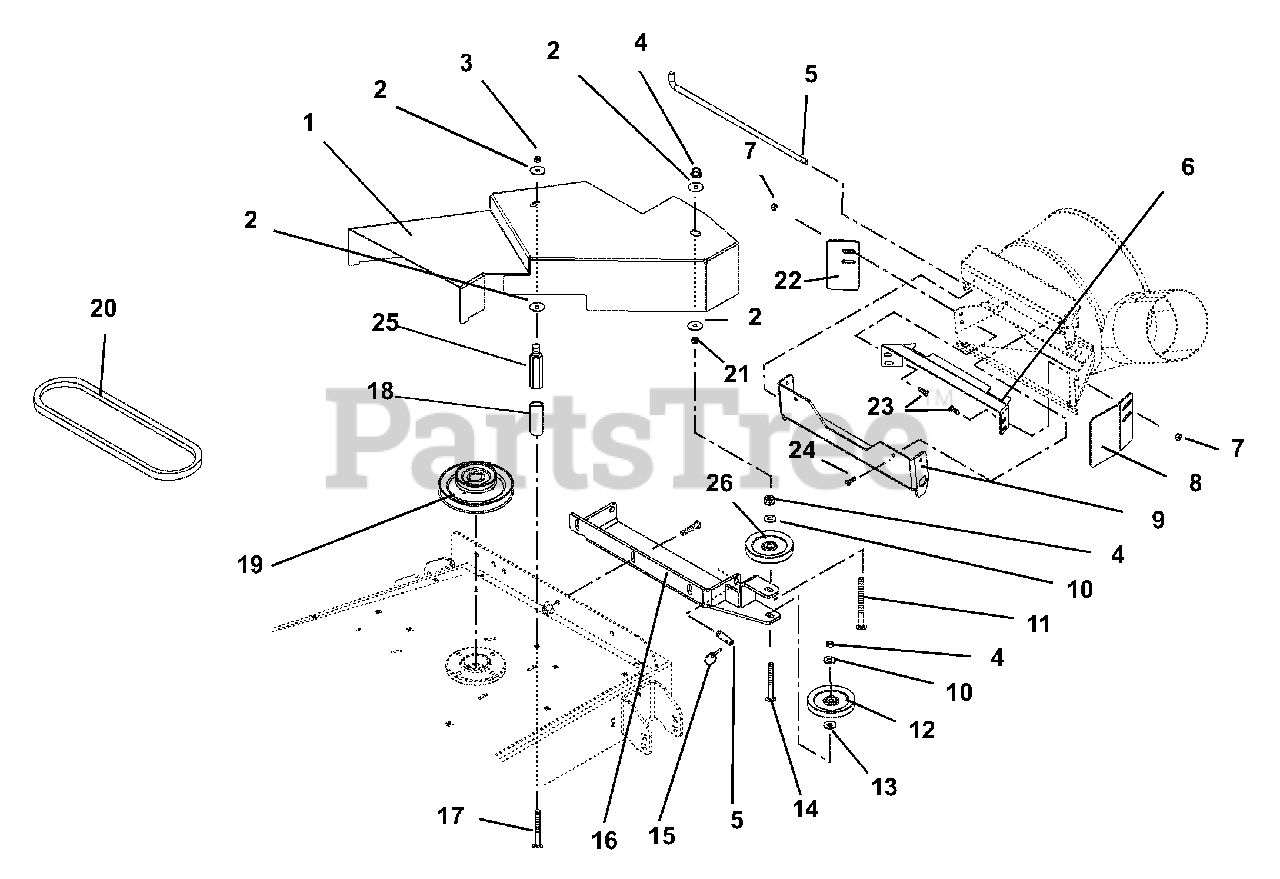

Pulleys And Covers Parts Diagram

  • Title

1

Gravely 09277053

Weldment, Belt Guard

$

$

Not available

2

Gravely 06439300

Washer-Flat-Steel .38 x 1.50 x .062
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

3

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 09229800

Rod-Pivot

$

$

Not available

6

Gravely 09276751

Guard, Pump Inlet

$

$

Not available

7

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 09276651

Bracket, Formed

$

$

Not available

9

Gravely 09279700

Weldment, Blower Mount

$

$

Not available

10

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06224400

Bolt-Round Head Square Neck .38-16 x 2.5 Grade 5
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 07311400

Idler-V, 4.00 x .38
(Superseded to 07300528)

$39.99

$

In Stock, only 2 left!

0

13

Gravely 06444000

Washer-Flat-Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 06223800

Bolt-Round Head Square Neck .38-16 x 1.75 Grade 5
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

15

Gravely 07014500

Pin-Klik 1.00 x .188 x 1.25

$5.99

$

Usually ships in 4-12 days

0

15

Gravely 023468

(Gravely Part Number)
(Superseded to 07014500)

Note: (Gravely Part Number)

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 09276951

Weldment, Pivot Mount Bracket

$

$

Not available

17

Gravely 06225800

Bolt-Round Head Square Neck .31-18 x 2.0 Grade 5

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 02752800

Tube .380 x .625 x 1.26

$

$

Not available

19

Gravely 09261500

Pulley, Double V 3.50/5.25 Dia.

$161.99

$

Usually ships in 4-12 days

0

20

Gravely 07240800

V-Belt, 48-780 78" Outer Circle)

Note: V-Belt, 48-780 78" Outer Circle)

$39.99

$

Usually ships in 4-12 days

0

21

Gravely 06535900

Nut-Hex-Jam .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 09263051

Bar, Extension

$

$

Not available

23

Gravely 06219900

Bolt-Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 00271200

Standoff, 2.75 x 5/16-18

$34.99

$

In Stock, only 2 left!

0

26

Gravely 07324100

Idler, Flanged 3.50
(Superseded to 07300028)

$39.99

$

In Stock, Qty 20+

0
