892025 - Ariens Compact-Z Bagger (SN: 000101 & Above) Blower Assembly To Mower Deck Parts Diagram

Compact-Z Bagger

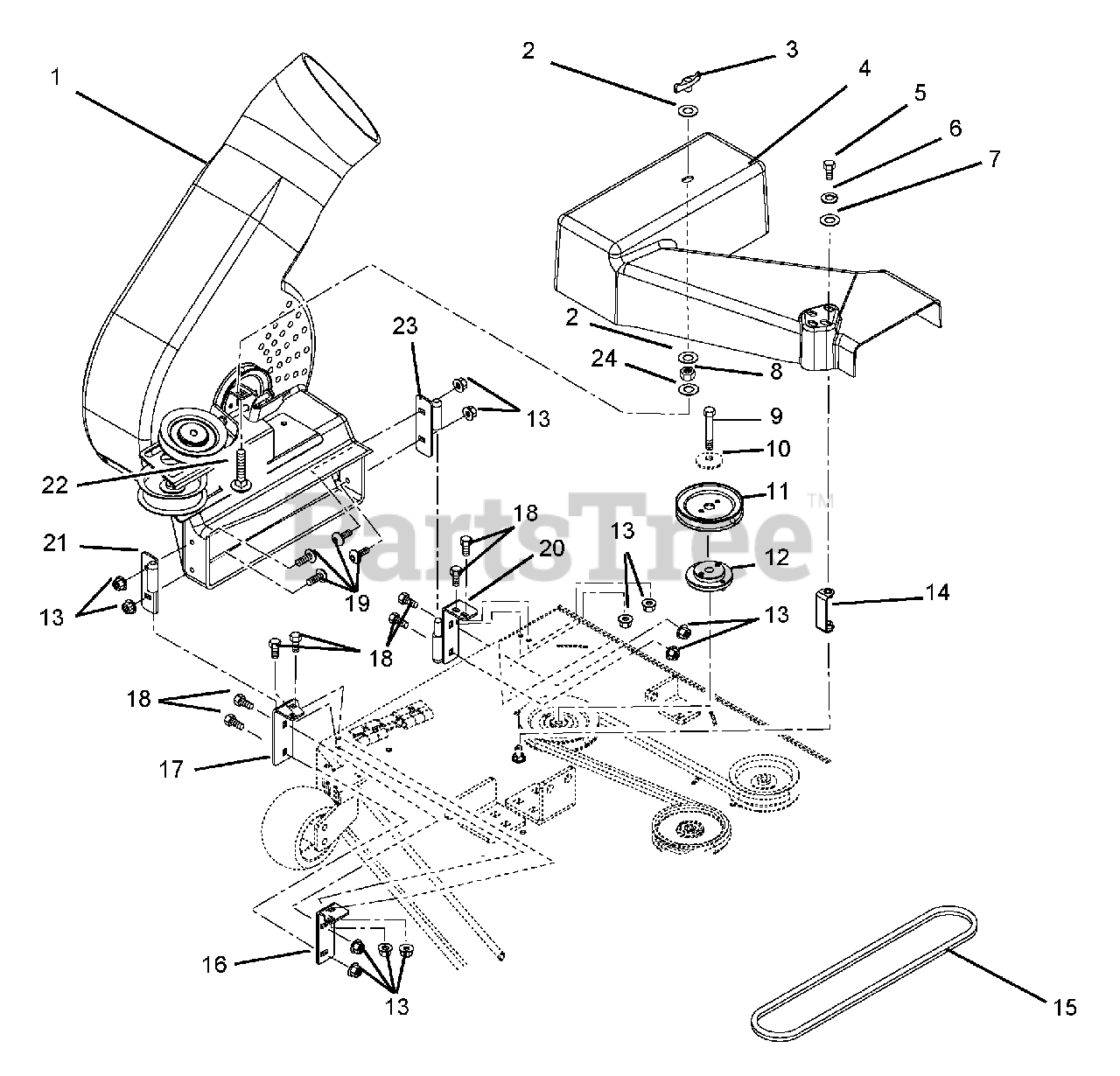

Blower Assembly To Mower Deck Parts Diagram

  • Title

1

Ariens 51511700

BLOWER HSG W/DECAL
(Superseded to 51586600)

$319.99

$

Usually ships in 4-12 days

0

2

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

$3.49

$

In Stock, Qty 20+

0

3

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

4

Ariens 59206300

ASSM, BELT COVER

$

$

Not available

5

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 05980600

BLT-HEX .38-16X1.75 GR8 M-EPYZ

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 00597000

WASHER, CUPPED SERRATED, .375
(Superseded to 06401110)

Note: (comes with mower deck)

$3.99

$

In Stock, Qty 20+

0

11

Ariens 00169500

SHEAVE, 3.00 DIA.

Note: (44-inch Mower Decks)

$20.99

$

In Stock, only 2 left!

0

11

Ariens 00169600

SHEAVE, 4.00 DIA.

Note: (48-inch Mower Decks)

$20.99

$

In Stock, only 1 left!

0

12

Ariens 00169800

ASSEMBLY, SHEAVE ADAPTER

$143.99

$

In Stock, only 2 left!

0

13

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 00595800

SPACER, COVER

$77.99

$

Usually ships in 4-12 days

0

15

Ariens 07217800

V-BELT, HA-RAW EDGE

Note: (44-Inch Mower Decks) (035896 - Gravely Part Number)

$48.99

$

In Stock, only 1 left!

0

15

Ariens 07217800

V-BELT, HA-RAW EDGE

Note: (48-Inch Mower Decks)

$48.99

$

In Stock, only 1 left!

0

16

Ariens 00169151

BRACKET, FRONT

$34.99

$

Usually ships in 4-12 days

0

17

Ariens 00168800

WELDMENT, FRONT MOUNT BRACKET

$77.99

$

Usually ships in 4-12 days

0

18

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$0.99

$

In Stock, Qty 10

0

20

Ariens 00168600

WELDMENT, REAR MOUNT BRACKET

$76.99

$

Usually ships in 4-12 days

0

21

Ariens 00168900

WELDMENT, HOUSING MOUNT RH

$81.99

$

Usually ships in 4-12 days

0

22

Ariens 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 00169000

WELDMENT, HOUSING MOUNT LH

$100.99

$

Usually ships in 4-12 days

0

24

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0
