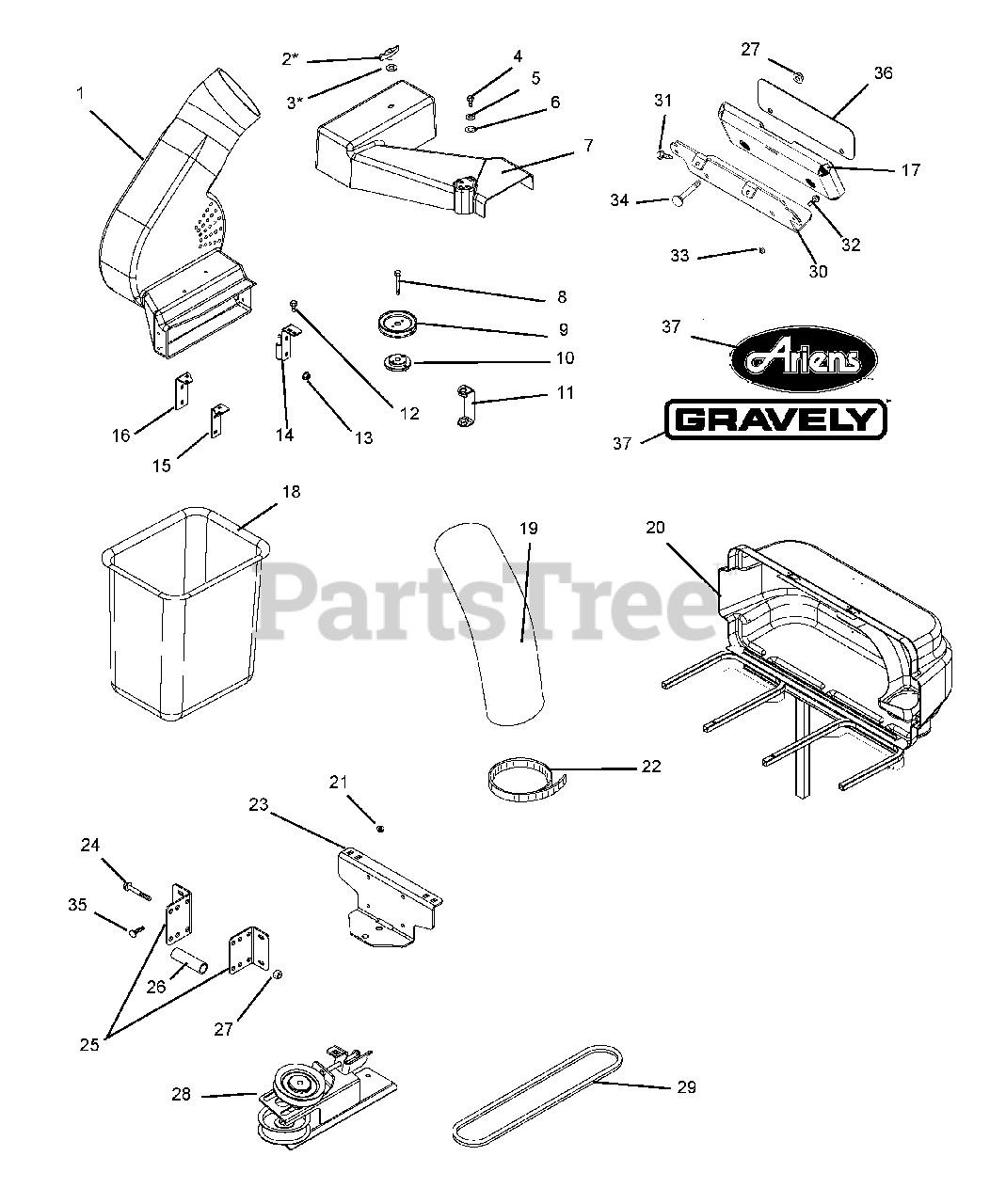

892025 - Ariens Compact-Z Bagger (SN: 000101 & Above) Assembly Parts Diagram

Compact-Z Bagger

Assembly Parts Diagram

  • Title

1

Ariens 51514700

BLOWER (SERVICE ASSEMBLY)

$853.99

$

Usually ships in 4-12 days

0

2

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

Note: Installed on blower assembly (item 1) when shipped.

$3.49

$

In Stock, Qty 20+

0

3

Ariens 06439300

WSHR-FL-STL .380X1.50X.062 YWZ
(Superseded to 06401028)

Note: Installed on blower assembly (item 1) when shipped.

$3.49

$

In Stock, Qty 20+

0

4

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

s

Ariens 59206300

ASSM, BELT COVER

$

$

Not available

8

Ariens 05980600

BLT-HEX .38-16X1.75 GR8 M-EPYZ

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 00169500

SHEAVE, 3.00 DIA.

Note: (44-Inch Mower Decks)

$20.99

$

In Stock, only 2 left!

0

9

Ariens 00169600

SHEAVE, 4.00 DIA.

Note: (48-Inch Mower Decks)

$20.99

$

In Stock, only 1 left!

0

10

Ariens 00169800

ASSEMBLY, SHEAVE ADAPTER

$143.99

$

In Stock, only 2 left!

0

11

Ariens 00595800

SPACER, COVER

$77.99

$

Usually ships in 4-12 days

0

12

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 00168600

WELDMENT, REAR MOUNT BRACKET

$76.99

$

Usually ships in 4-12 days

0

15

Ariens 00169151

BRACKET, FRONT

$34.99

$

Usually ships in 4-12 days

0

16

Ariens 00168800

WELDMENT, FRONT MOUNT BRACKET

$77.99

$

Usually ships in 4-12 days

0

17

Ariens 00172000

WEIGHT, CAST IRON

$297.99

$

Usually ships in 4-12 days

0

18

Ariens 02724400

GRASS BAGGER BASKET

$79.99

$

Usually ships in 4-12 days

0

19

Ariens 04222900

HOSE, FLEXIBLE-47"

$129.99

$

In Stock, Qty 10

0

20

Cover Assembly

$

$

Not available

21

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 02770200

CLAMP, 7" TOOL-LESS HOSE

$45.99

$

Usually ships in 4-12 days

0

23

Ariens 59206400

ASSM, TRAILER HITCH

$

$

Not available

24

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

25

Ariens 00200051

BKT,BAGGER MOUNT

$46.99

$

Usually ships in 4-12 days

0

26

Ariens 03433800

SPACER, PIVOT .500X.750X1.805

$

$

Not available

27

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

28

Idler Assembly

$

$

Not available

29

Ariens 07212800

V-BELT, HA-WRAPPED

$39.99

$

In Stock, only 1 left!

0

29

Ariens 07217800

V-BELT, HA-RAW EDGE

$48.99

$

In Stock, only 1 left!

0

30

Ariens 00372651

BKRT, CZ WEIGHT

$129.99

$

Usually ships in 4-12 days

0

31

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

35

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

36

Ariens 00389551

PANEL, DECAL

$81.99

$

Usually ships in 4-12 days

0

37

Ariens 07800001

DECAL, ARIENS JEWEL
(Superseded to 07800337)

$11.99

$

Usually ships in 4-12 days

0
