892021 - Gravely 52" Bagger for PM252Z (SN: 000101 & Above) Counterweights Parts Diagram

52" Bagger for PM252Z

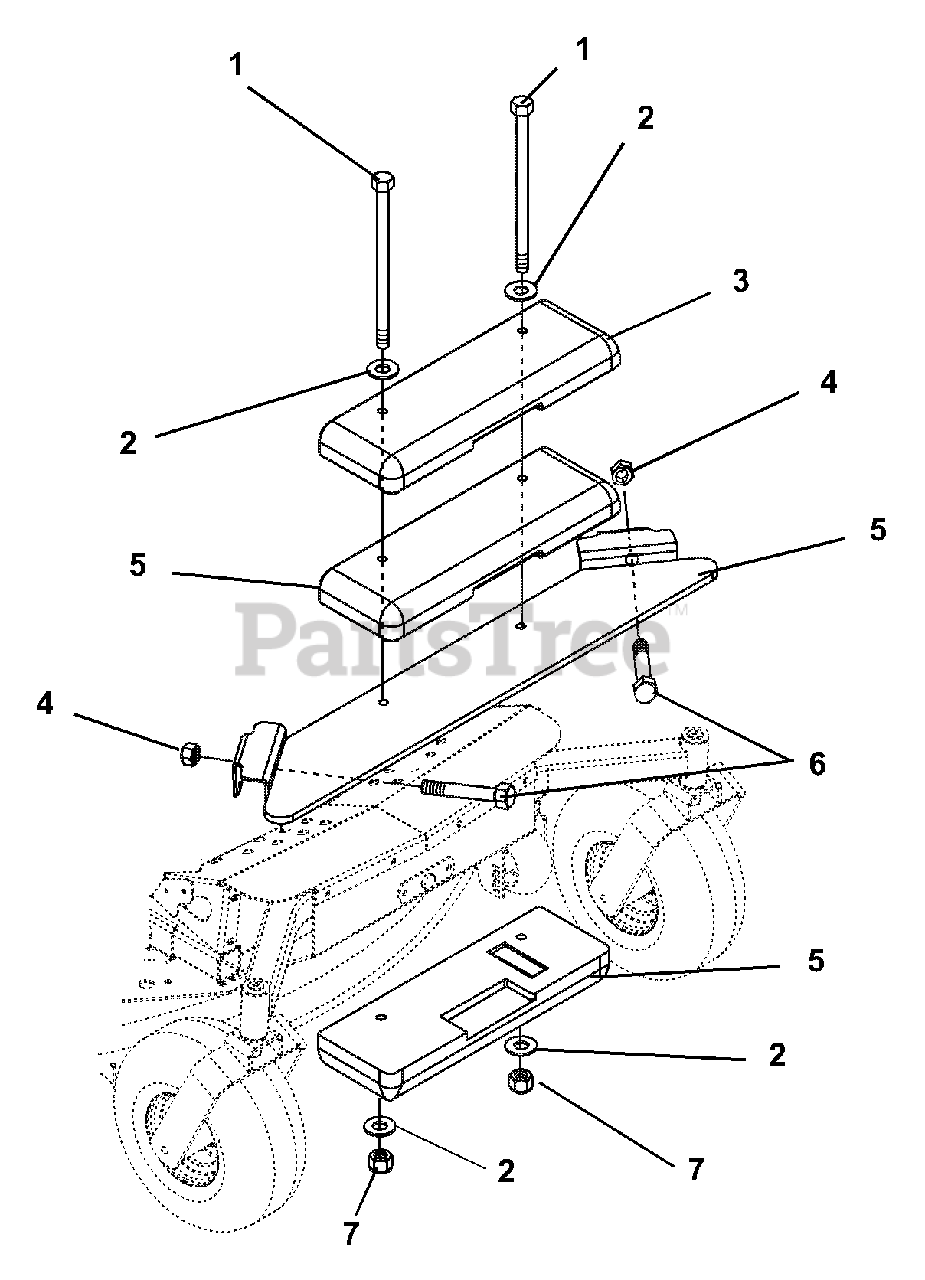

Counterweights Parts Diagram

  • Title

1

Gravely 05978200

Bolt-Hex .50-13 x 7.50 Grade 5
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

2

Gravely 06439200

Washer-Flat-Steel .51 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 09054751

Counterweight
(Superseded to 00172000)

$297.99

$

Usually ships in 4-12 days

0

4

Gravely 06535800

Nut-Locking .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

5

Gravely 09285951

Weldment, Weight Plate

$

$

Not available

6

Gravely 05957800

Bolt-Hex .38-16 x 3.00 Grade 5
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

7

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0
