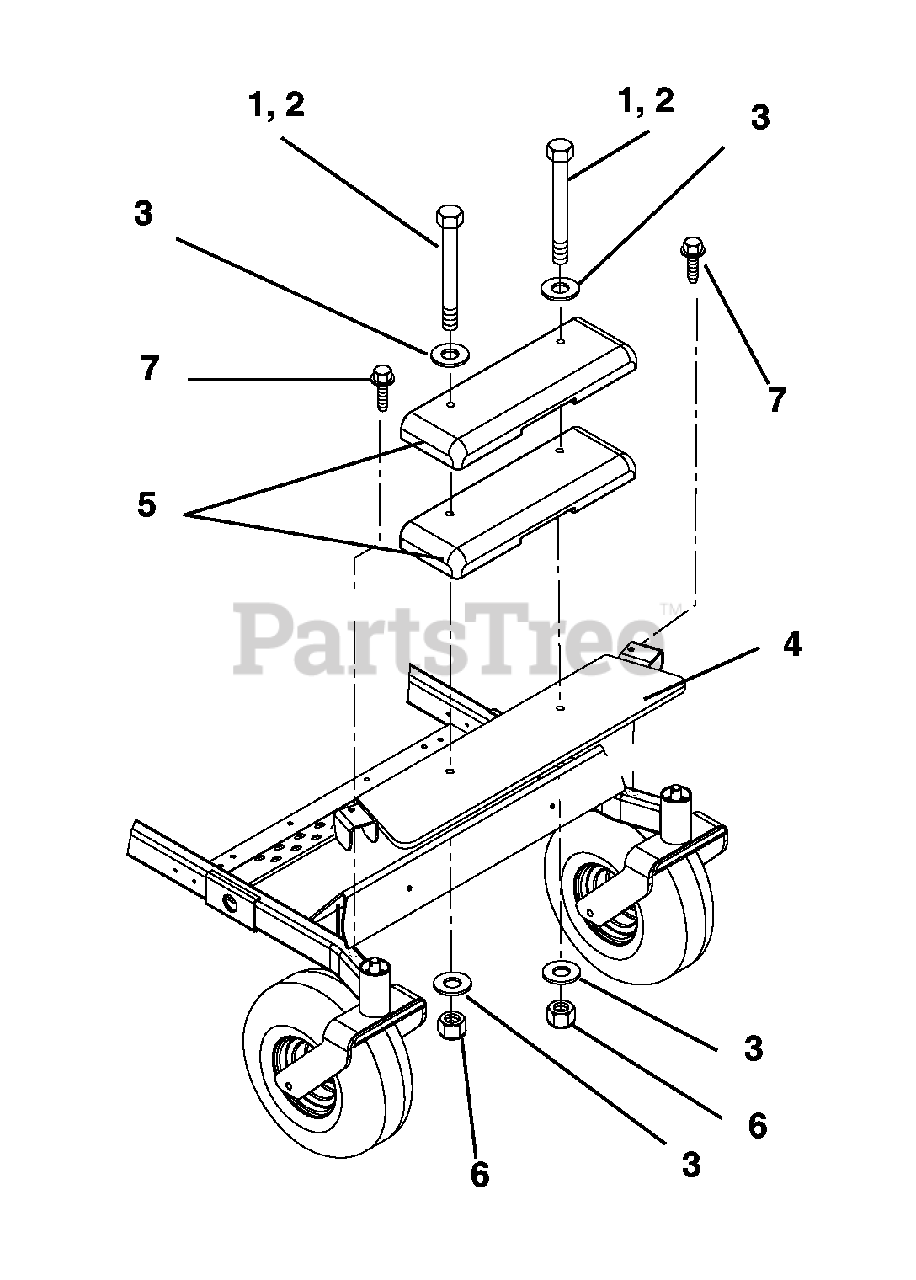

892017 - Gravely 44", 48", 52" Grass Bagger for PM100Z (SN: 000101 & Above) Counterweights Parts Diagram

44", 48", 52" Grass Bagger for PM100Z

Counterweights Parts Diagram

  • Title

1

Gravely 05978200

Bolt-Hex .50-13 x 7.50 Grade 5
(Superseded to 05902023)

$7.99

$

In Stock, only 2 left!

0

2

Gravely 05964100

Bolt-Hex .50-13 x 5.50 Grade 5
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

3

Gravely 06439200

Washer-Flat-Steel .51 x 1.00 x .062
(Superseded to 06401112)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 09286851

Weldment, Weight Plate

$

$

Not available

5

Gravely 09054751

Counterweight
(Superseded to 00172000)

$297.99

$

Usually ships in 4-12 days

0

6

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

7

Gravely 07412900

Tapping Screw, 3/8'-16 x 1/2'(892016)
(Superseded to 07400126)

Note: (892016)

$1.49

$

In Stock, Qty 20+

0
