892017 - Ariens PM-144Z, 148Z, 152Z Bagger (SN: 000101 & Above) Bags And Cover Parts Diagram

PM-144Z, 148Z, 152Z Bagger

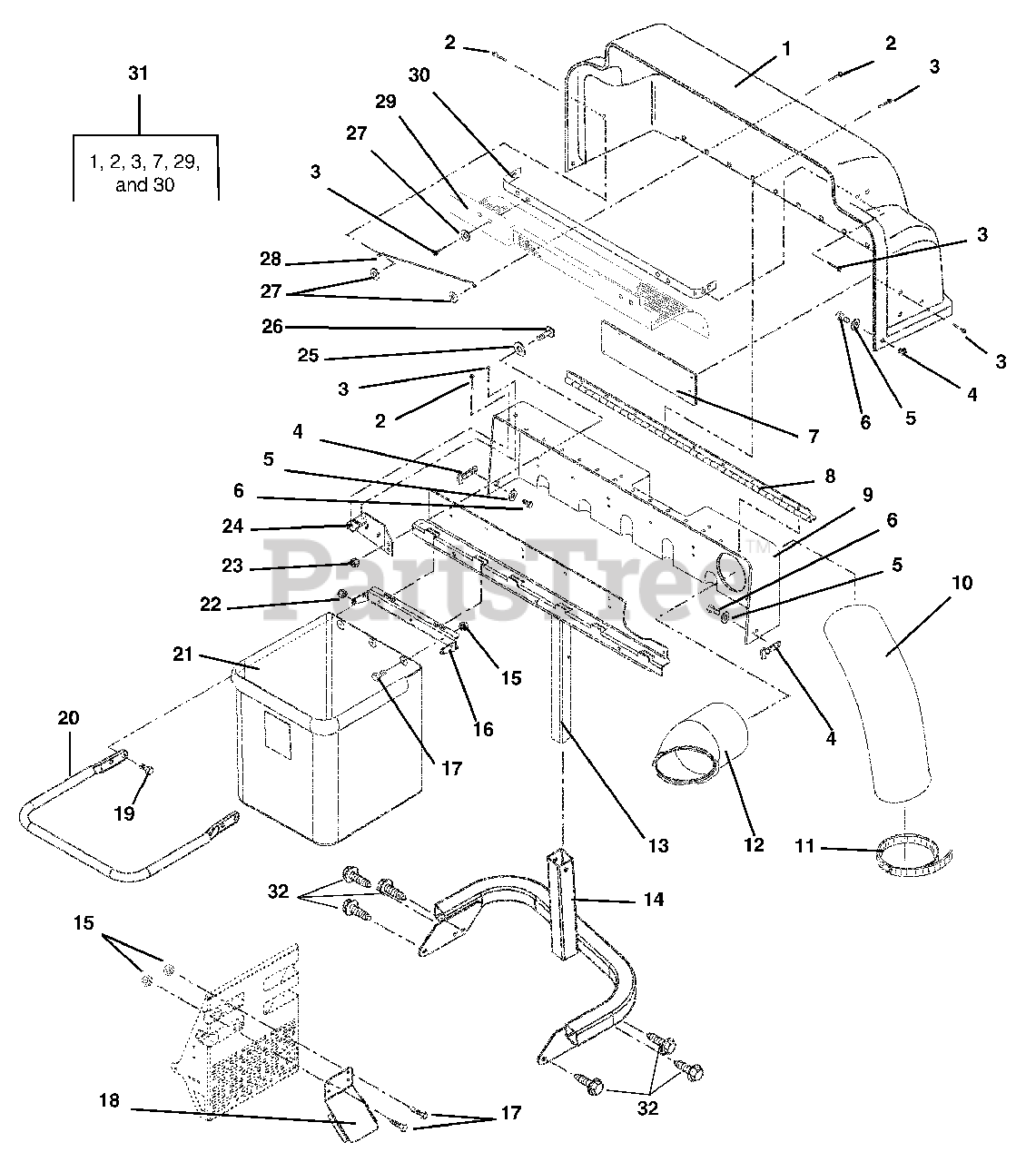

Bags And Cover Parts Diagram

  • Title

1

Ariens 03569200

HINGED COVER

$

$

Not available

2

Ariens 06803800

RVT-POP.187X.527 DOME ST

$1.49

$

In Stock, Qty 20+

0

3

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 10

0

4

Ariens 09079500

LATCH, RUBBER

$34.99

$

In Stock, only 1 left!

0

5

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

6

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 02731200

BAFFLE

$

$

Not available

8

Ariens 03325200

HINGE- 2.0"X35.0"

$

$

Not available

9

Ariens 03569100

STATIONARY COVER

$

$

Not available

10

Ariens 01585800

HOSE 7 X 45
(Superseded to 04222900)

$129.99

$

In Stock, Qty 10

0

11

Ariens 03022400

CLAMP-HOSE WRM 2.13/8.62X.56

$17.99

$

Usually ships in 4-12 days

0

12

Ariens 03599600

BAGGER BOOT - UPPER

$

$

Not available

13

Ariens 03685751

WELDMENT-BAGGER FRAME

$

$

Not available

14

Ariens 09292351

WMT, BAGGER MNT (IZ)

$

$

Not available

15

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 09283751

WMT, HANGER FRAME

$115.99

$

Usually ships in 4-12 days

0

17

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 09263251

DEFLECTOR, EXHAUST

$44.99

$

Usually ships in 4-12 days

0

19

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

20

Ariens 03691300

FRAME-BAG SUPPORT

$

$

Not available

21

Ariens 03686300

BAG-MESH ASSIST BAGGER

$91.99

$

Usually ships in 4-12 days

0

22

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 02725200

BRACE

$

$

Not available

25

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 06444400

@WSHR-FL-STL .188X.438X.049 YZ

$1.99

$

Usually ships in 4-12 days

0

28

Ariens 03552900

BRACE

$

$

Not available

29

Ariens 09218800

SCREEN

$

$

Not available

30

Ariens 09224351

SCREEN MOUNTING BRACKET

$

$

Not available

31

Ariens 59203500

HINGED COVER W/DECAL

Note: (Includes items 1, 2, 3, 7, 29, and 30)

$

$

Not available

32

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0
