892015 - Gravely 52" Deck Grass Bagger for PM260Z (SN: 000101 & Above) Pulleys And Cover Parts Diagram

52" Deck Grass Bagger for PM260Z

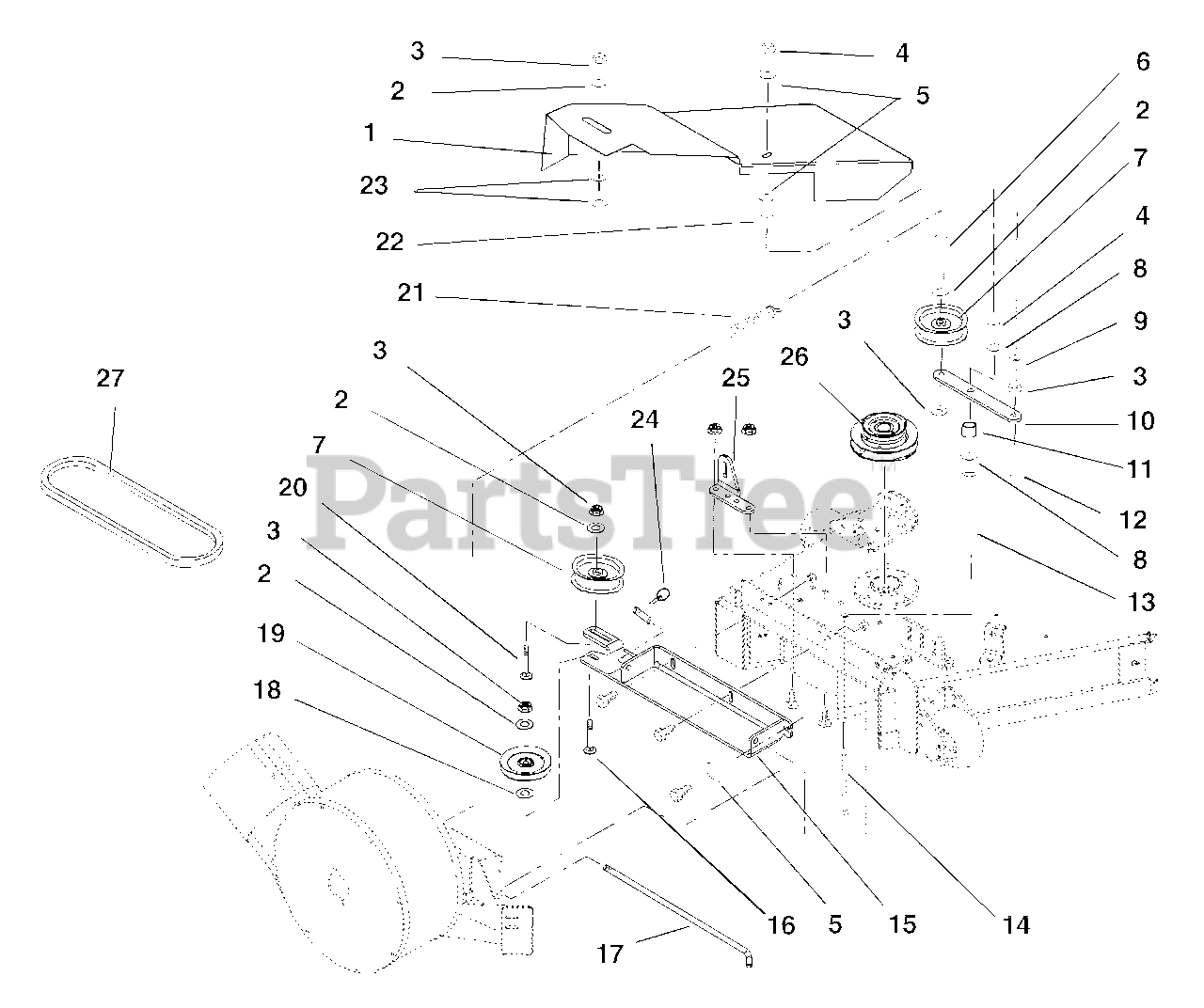

Pulleys And Cover Parts Diagram

  • Title

1

Gravely 09294053

Weldment, Belt Guard
(Superseded to 09294051)

$

$

Not available

2

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07324100

Idler Flanged 3.50
(Superseded to 07300028)

$39.99

$

In Stock, Qty 20+

0

8

Gravely 06446300

Washer-Flat-Steel .344 x 1.125 x .13
(Superseded to 06401104)

$3.99

$

In Stock, only 2 left!

0

9

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 09261351

Arm, Idler

$

$

Not available

11

Gravely 03009200

Spacer .380 x .503 x .281

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 05958000

Bolt-Hex .38-16 x 1.25 Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 08874100

Spacer .391 x .625 x 1

$

$

Not available

14

Gravely 06222500

Bolt .312-18 x 4.00

$3.99

$

In Stock, only 3 left!

0

15

Gravely 09294451

Weldment, Pivot Mount 44,48,52

$

$

Not available

16

Gravely 06223800

Bolt-Round Head Square Neck .38-16 x 1.75 Grade 5
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

17

Gravely 09229800

Rod, Pivot

$

$

Not available

18

Gravely 06444000

Washer-Flat-Steel .406 x 1.00 x .188
(Superseded to 06401108)

$2.49

$

In Stock, Qty 20+

0

19

Gravely 07311400

Idler-V 4.00 x .38
(Superseded to 07300528)

$39.99

$

In Stock, only 2 left!

0

20

Gravely 06224400

Bolt-Round Head Square Neck .38-16 x 2.50 Grade 5
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

21

Gravely 08311000

Spring-Tension .080 x .687 x 5.16

$14.99

$

In Stock, only 1 left!

0

22

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06442400

Washer-Flat-Steel .406 x 1.375 x .135
(Superseded to 06401121)

$5.99

$

In Stock, only 1 left!

0

24

Gravely 07014500

Pin-Klik 1.00 x .188 x 1.25

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 00176853

Bracket, 52-Inch Deck Mounting

$

$

Not available

26

Gravely 09261500

Pulley, Double V 3.50/5.25 Diameter

$161.99

$

Usually ships in 4-12 days

0

27

Gravely 07216300

V-Belt 52-Inch Mower Deck

$42.99

$

In Stock, only 4 left!

0
