892014 - Ariens PM100's ROPS (SN: 000101 & Above) Rollover Protection Kit Parts Diagram

PM100's ROPS

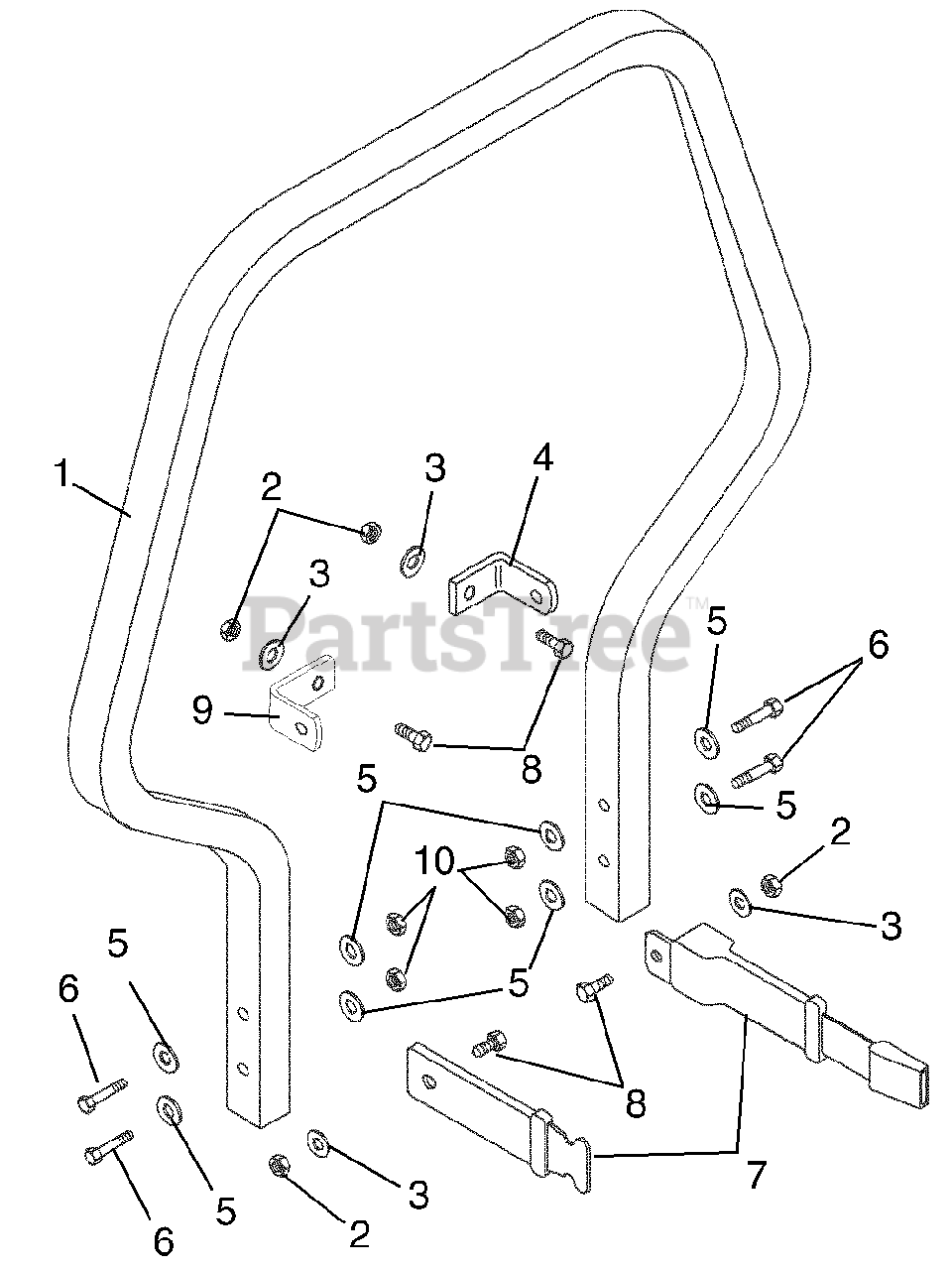

Rollover Protection Kit Parts Diagram

  • Title
1

Ariens 09289400

ROLLBAR ASSY, INT Z

$

$

Not available

2

Ariens 06536400

@NUT-LK-CTR .44-14 YWZC
(Superseded to 06500930)

$2.99

$

In Stock, Qty 12

0

3

Ariens 06441000

@WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

4

Ariens 21539800

BRACKET, SEAT BELT MOUNT, LH

$

$

Not available

5

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

6

Ariens 05959900

@BLT-HEX .50-13X3.00 GR5 YWZC
(Superseded to 05901737)

$4.99

$

In Stock, only 1 left!

0

7

Ariens 21538800

ASSY, SEAT BELT

$196.99

$

Usually ships in 4-12 days

0

8

Ariens 05958700

@BLT-HEX .44-14X1.00 GR5 YWZC
(Superseded to 05901913)

$2.99

$

In Stock, only 1 left!

0

9

Ariens 21539900

BRACKET, SEAT BELT MOUNT, RH

$

$

Not available

10

Ariens 06540600

@NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

Ariens 79202900

KIT, COUNTERWEIGHT (INT-Z)

$

$

Not available

Ariens 09054751

WEIGHT-REAR FRAME
(Superseded to 00172000)

$297.99

$

Usually ships in 4-12 days

0
