892007 - Gravely 50" Deck Grass Bagger for PM260Z (SN: 000101 & Above) Blower Housing Assembly Parts Diagram

50" Deck Grass Bagger for PM260Z

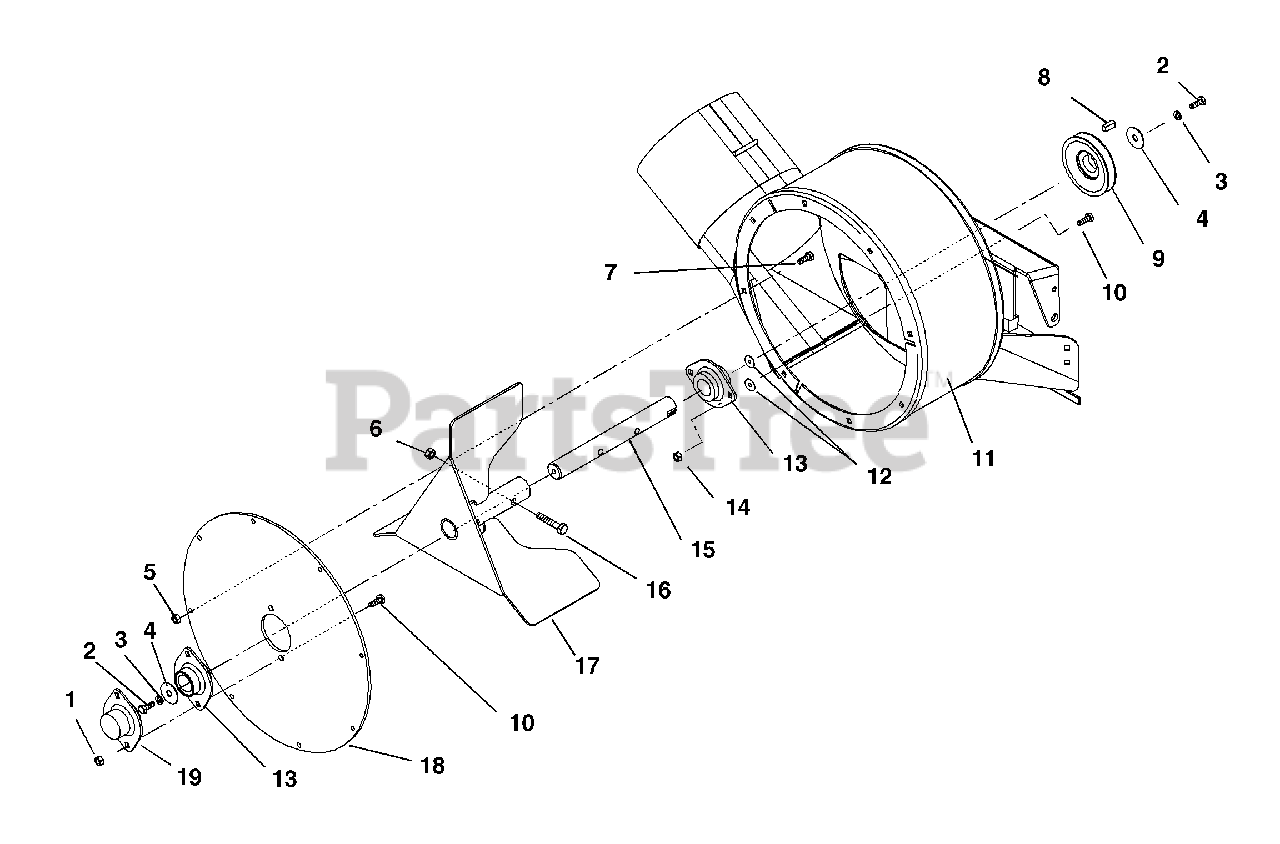

Blower Housing Assembly Parts Diagram

  • Title

1

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 06308400

Washer-Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06446900

Washer-Flat-Steel .35 x 1.25 x .048
(Superseded to 06401105)

$2.49

$

In Stock, only 2 left!

0

5

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06214300

Bolt-Round Head Square Neck .25-20 x .50
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06611100

Key-Square .25 x .38 x .25

$1.49

$

In Stock, Qty 20+

0

9

Gravely 09229200

Pulley-Driven 3.50 Dia.
(Superseded to 59206100)

$129.99

$

Usually ships in 4-12 days

0

10

Gravely 05946900

Bolt-Hex .31-18 x 1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09228543

Weldment, Blower Housing
(Superseded to 09228551)

$

$

Not available

12

Gravely 06435800

Washer-Flat-STL .312 x .734 x .06
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 09228900

Bearing-2 Bolt x 1.00 Shaft

$77.99

$

Usually ships in 4-12 days

0

14

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 09229100

Shaft-Impeller

$103.99

$

Usually ships in 4-12 days

0

16

Gravely 05957400

Bolt-Hex .31-18 x 1.75
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

17

Gravely 09229000

Impeller Complete

$341.99

$

Usually ships in 4-12 days

0

18

Gravely 09229343

Cover-Bearing Support
(Superseded to 09229351)

$90.99

$

Usually ships in 4-12 days

0

19

Gravely 03687400

Cover-Bearing

$41.99

$

Usually ships in 4-12 days

0
