892004 - Gravely 50" Deck Grass Bagger for PM100Z (SN: 000101 & Above) Blower Housing Assembly Parts Diagram

50" Deck Grass Bagger for PM100Z

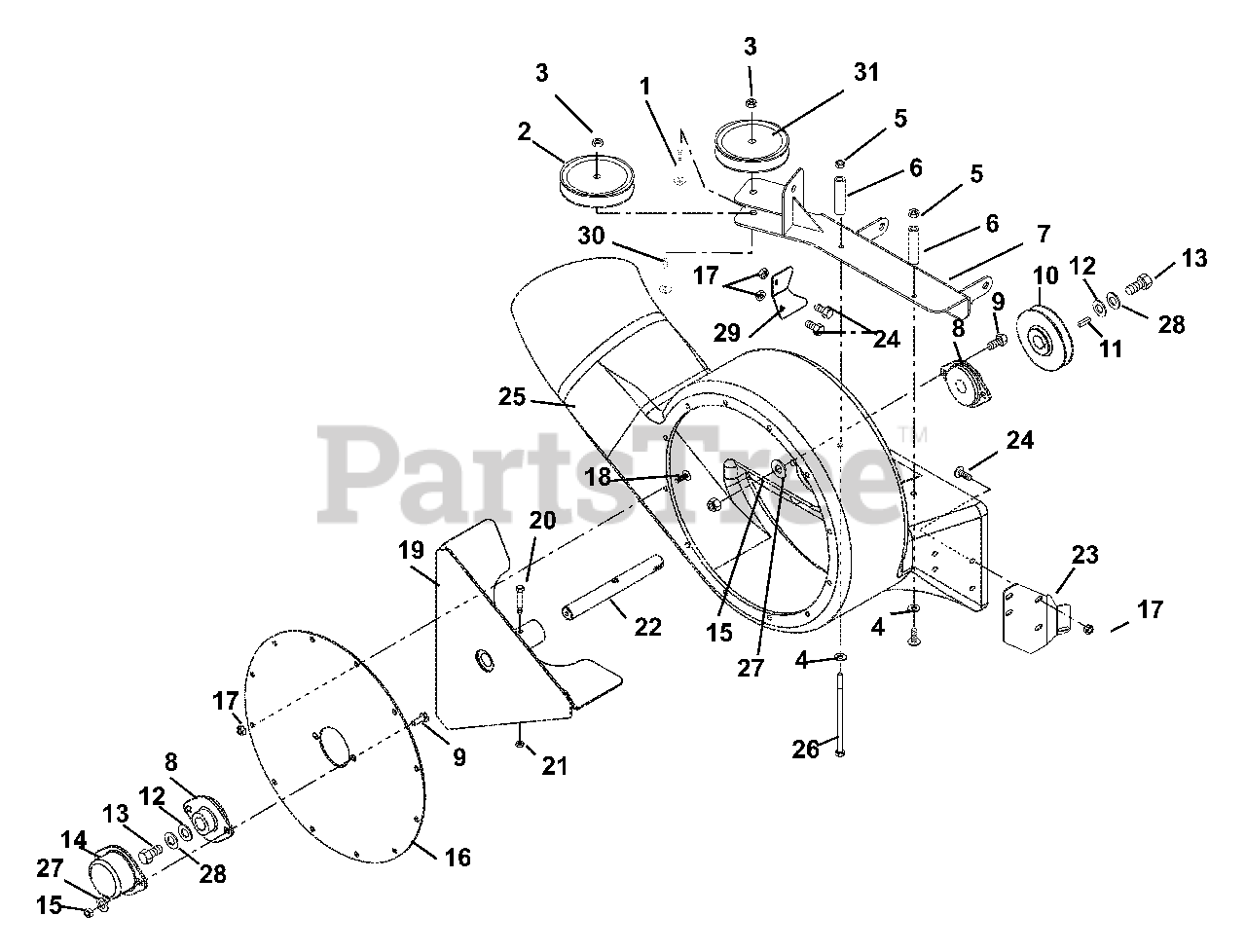

Blower Housing Assembly Parts Diagram

  • Title

1

Gravely 06224200

Bolt-Round Head Square Neck.38-16 x 1.50 Grade 5
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 07311400

Idler-V 4.00 x .38
(Superseded to 07300528)

$39.99

$

In Stock, only 2 left!

0

3

Gravely 06534900

Nut-Locking-Flange .38-16
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06437300

Washer-Flat-Steel .281 x .62 x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 09261000

Spacer-.33 ID x .50 OD x 4.63

$

$

Not available

7

Gravely 09287751

Weldment- Bracket- Mounting
(Superseded to 09287700)

$

$

Not available

8

Gravely 03685300

Bearing, 2 Bolt Flange-.75 ID

$45.99

$

In Stock, only 2 left!

0

9

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 03685400

Pulley, Driven 3.50

$

$

Not available

11

Gravely 06606000

Key-Square .187 x .50 x .187

$10.99

$

In Stock, only 1 left!

0

11

Gravely 026273

(Gravely Part Number)
(Superseded to 06606000)

Note: (Gravely Part Number)

$10.99

$

In Stock, only 1 left!

0

12

Gravely 06437500

Washer-.328 x 1.0 x .094
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

13

Gravely 05952300

Bolt-Hex .25-28 x .75 Grade 5

$1.99

$

Usually ships in 4-12 days

0

14

Gravely 03687400

Cover-Bearing

$41.99

$

Usually ships in 4-12 days

0

15

Gravely 06530200

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 03684900

Plate-Bearing Mount

$

$

Not available

17

Gravely 06530100

Nut-Locking-Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06114300

Screw-Machine .250-20 x .50

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 03685200

Impeller-Grass Pump

$

$

Not available

20

Gravely 05952500

Bolt-Hex .25-20 x 1.50 Grade 5
(Superseded to 05901739)

$1.49

$

In Stock, Qty 17

0

21

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 03685100

Shaft, Grass Pump

$68.99

$

Usually ships in 4-12 days

0

23

Gravely 09228300

Bracket, Mounting, Deck To Pump

$5.99

$

Usually ships in 4-12 days

0

24

Gravely 06114400

Screw-Machine .25-20 x .75

$0.99

$

In Stock, Qty 10

0

25

Gravely 09261100

Housing, Grass Pump

$

$

Not available

26

Gravely 05978100

Bolt-Hex .25-20 x 4.5 Grade 5

$

$

Not available

27

Gravely 06435800

Washer-Flat-Steel .31 x .73 x.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06308400

Washer-Lock .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 09260551

Bracket-Deck Stop

$

$

Not available

30

Gravely 06224100

Bolt-Round Head Square Neck.38-16X1.25 Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

31

Gravely 07324100

Idler Flanged 3.50
(Superseded to 07300028)

$39.99

$

In Stock, Qty 20+

0
