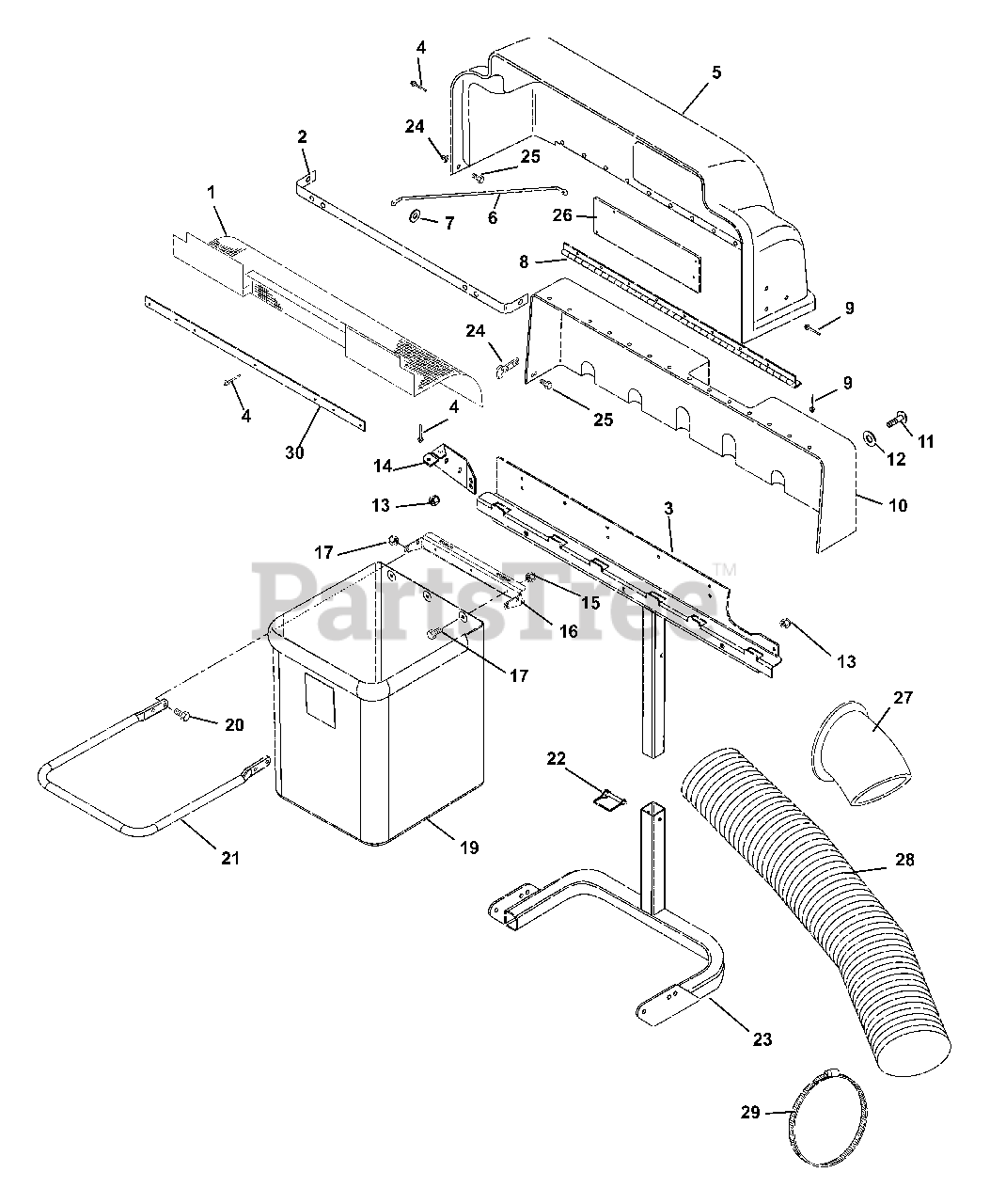

892004 - Ariens 50" Grass Bagger (SN: 000101 & Above) Bags & Cover Parts Diagram

50" Grass Bagger

Bags & Cover Parts Diagram

  • Title
1

$

$

Not available

2

Ariens 09224351

SCREEN MOUNTING BRACKET

$

$

Not available

3

Ariens 03685751

WELDMENT-BAGGER FRAME

$

$

Not available

4

Ariens 06803800

RVT-POP.187X.527 DOME ST

Note: (041098 - Gravely Part Number)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 59203500

HINGED COVER W/DECAL

$

$

Not available

6

Ariens 03552900

BRACE

Note: (041097 - Gravely Part Number)

$

$

Not available

7

Ariens 06444400

@WSHR-FL-STL .188X.438X.049 YZ

$1.99

$

Usually ships in 4-12 days

0

8

Ariens 03325200

HINGE- 2.0"X35.0"

$

$

Not available

9

Ariens 06802500

RVT-POP .187X.402 DOME ST

$1.49

$

In Stock, Qty 10

0

10

Ariens 03569100

STATIONARY COVER

Note: (045465 - Gravely Part Number)

$

$

Not available

11

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 02725200

BRACE

Note: (041092 - Gravely Part Number)

$

$

Not available

15

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 09283751

WMT, HANGER FRAME

$115.99

$

Usually ships in 4-12 days

0

17

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 03686300

BAG-MESH ASSIST BAGGER

$91.99

$

Usually ships in 4-12 days

0

20

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

21

Ariens 03691300

FRAME-BAG SUPPORT

$

$

Not available

22

Ariens 07065900

PIN-3/8 X 2.50 SQ LOCK

$

$

Not available

23

Ariens 09227551

WELDMENT-BUMPER & BAG HOLDER

$

$

Not available

24

Ariens 09079500

LATCH, RUBBER

$34.99

$

In Stock, only 1 left!

0

25

Ariens 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

26

$

$

Not available

27

Ariens 03599600

BAGGER BOOT - UPPER

Note: (050373 - Gravely Part Number)

$

$

Not available

28

Ariens 01585800

HOSE 7 X 45
(Superseded to 04222900)

$129.99

$

In Stock, Qty 10

0

29

Ariens 03022400

CLAMP-HOSE WRM 2.13/8.62X.56

Note: (038532 - Gravely Part Number)

$17.99

$

Usually ships in 4-12 days

0

30

Ariens 00429751

GUARD - SCREEN

$

$

Not available
