891008 - Ariens Peco 2-Bag Bagger (SN: 002000 & Above) Impeller Assembly Parts Diagram

Peco 2-Bag Bagger

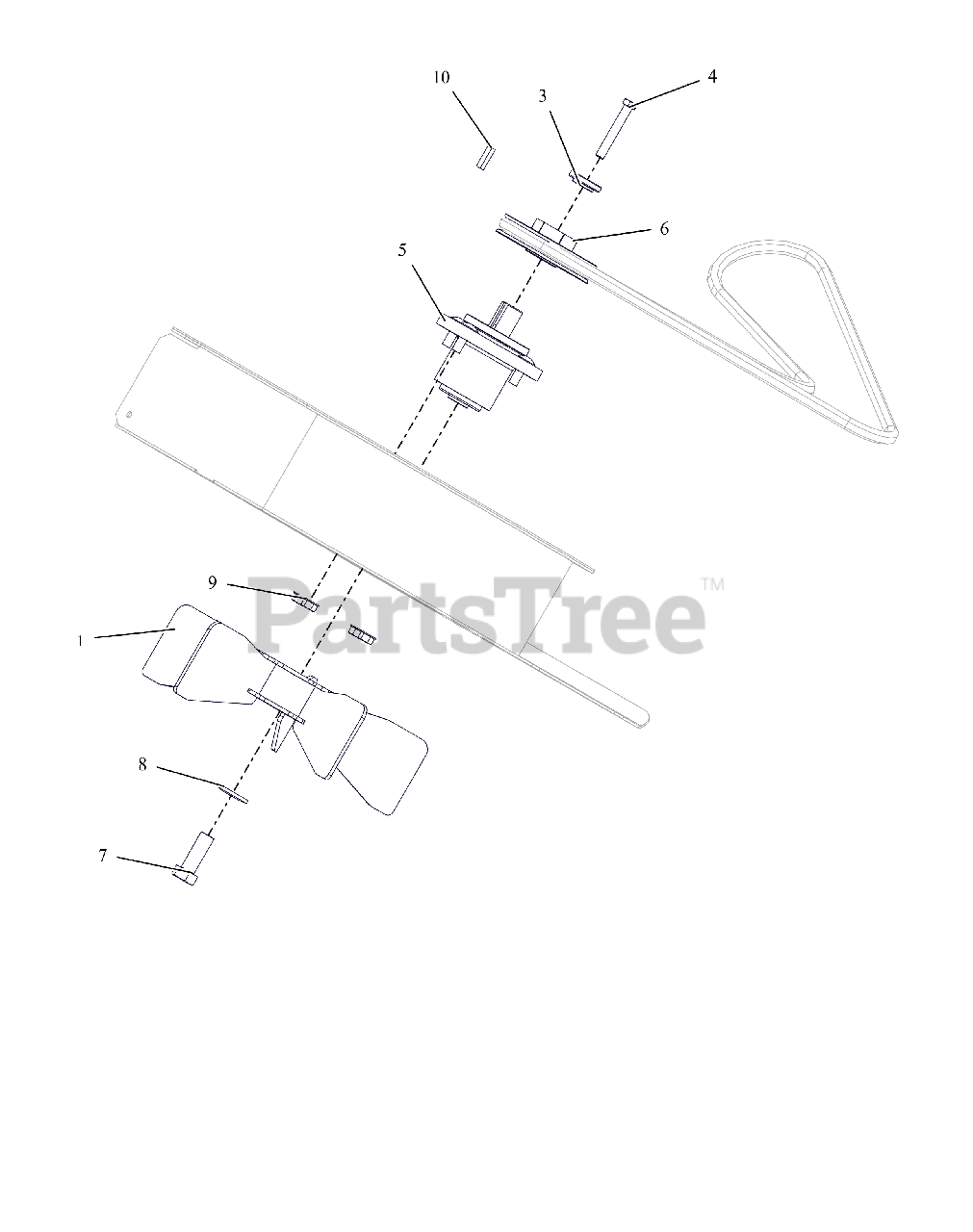

Impeller Assembly Parts Diagram

  • Title
1

Ariens 05137500

IMPELLER, HD BLOWER

$227.99

$

Usually ships in 4-12 days

0

3

Ariens 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

4

Ariens 05901601

BLT-HEX .38-16X2.50 GR8 YWZC

$

$

Not available

5

Ariens 59112600

SPINDLE ASSY, SERVICE (BLOWER)

$307.99

$

Usually ships in 4-12 days

0

6

Ariens 07347967

PULLEY, V-1.00"ID X 4.50" OD

$

$

Not available

7

Ariens 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

8

Ariens 06445700

WSHR-BLVL .669X1.535X.138

$4.99

$

In Stock, only 3 left!

0

9

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 06611200

KEY, SQ .25X.25X1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0
