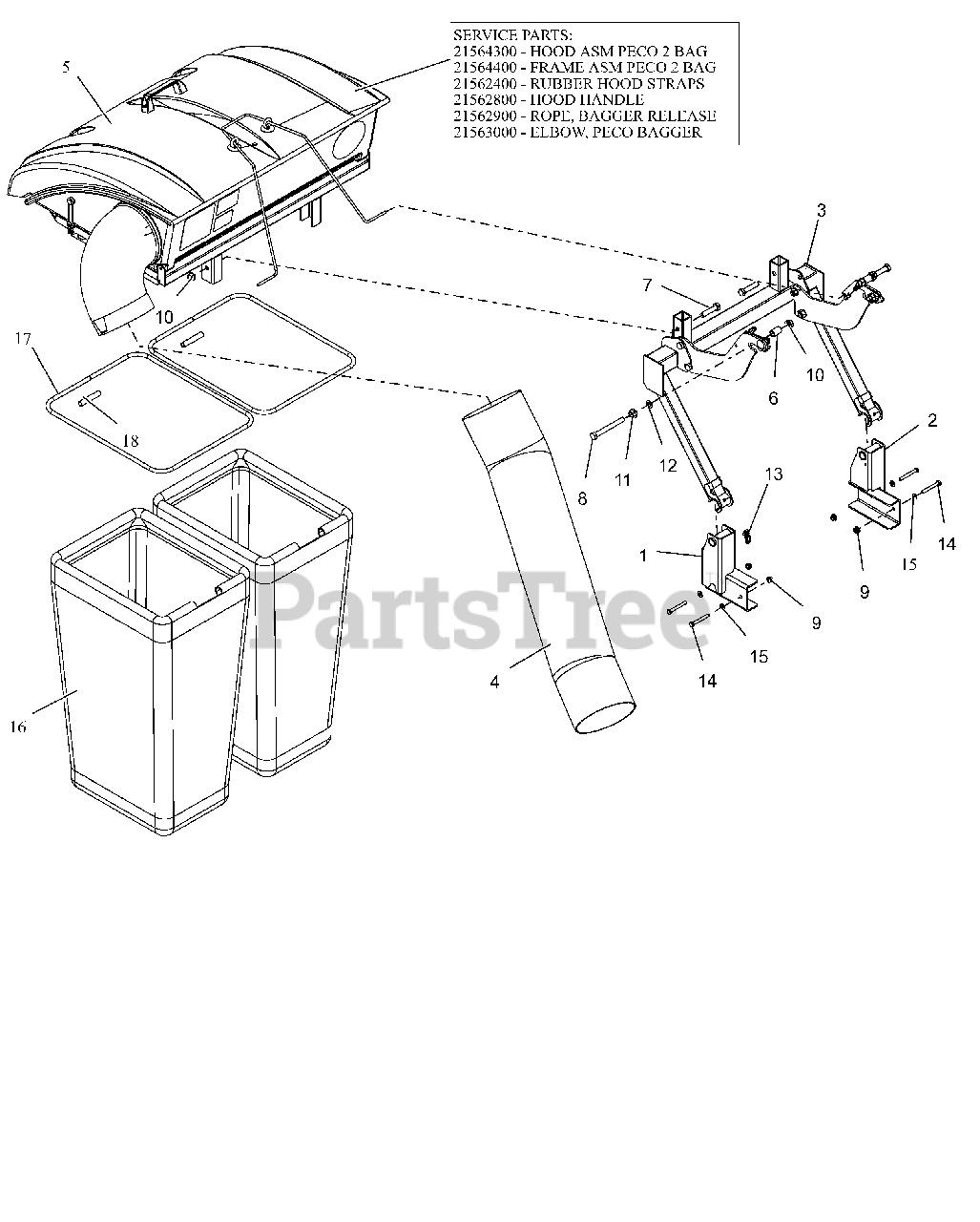

891007 - Gravely Peco 2-Bag Bagger (SN: 001000 & Above) Bagger, Hose, And Mount Parts Diagram

Peco 2-Bag Bagger

Bagger, Hose, And Mount Parts Diagram

  • Title

1

Gravely 05065251

WMT, BAGGER MNT RH PT/PT100

$103.99

$

Usually ships in 4-12 days

0

2

Gravely 05065351

WMT, BAGGER MNT LH PT/PT100

$103.99

$

Usually ships in 4-12 days

0

3

Gravely 05065451

WMT, BAGGER POST PT/PT100

$196.99

$

Usually ships in 4-12 days

0

4

Gravely 04588400

HOSE BAGGER, 49"

$155.99

$

Usually ships in 4-12 days

0

5

Gravely 05192000

BAGGER, PECO 2-BAG RECEPTACLE

$814.99

$

Usually ships in 4-12 days

0

5

Gravely 21564300

HOOD ASM PECO 2 BAG

$749.99

$

Usually ships in 4-12 days

0

5

Gravely 21564400

FRAME ASM PECO 2 BAG

$475.99

$

Usually ships in 4-12 days

0

5

Gravely 21562400

RUBBER HOOD STRAP

$33.99

$

Usually ships in 4-12 days

0

5

Gravely 21562800

HANDLE

$18.99

$

Usually ships in 4-12 days

0

5

Gravely 21562900

ROPE, BAGGER RELEASE

$19.99

$

Usually ships in 4-12 days

0

5

Gravely 21563000

ELBOW, PECO BAGGER

$90.99

$

Usually ships in 4-12 days

0

6

Gravely 09357700

SPACER .510 X .75 X 1.1485

$4.99

$

In Stock, only 2 left!

0

7

Gravely 05961000

@BLT-HEX .50-13X2.25 GR5 YWZC
(Superseded to 05901835)

$3.49

$

In Stock, Qty 5

0

8

Gravely 05900102

@BLT-HEX .5-13-4.5GR8 FULL THD
(Superseded to 05901736)

$9.49

$

In Stock, only 1 left!

0

9

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06543300

NUT-SPNLK-FLG .50-13 YWZC
(Superseded to 06500928)

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

In Stock, only 2 left!

0

13

Gravely 07500040

CABLE TIE W/ TREE (.25 HOLE)

$3.99

$

In Stock, only 1 left!

0

14

Gravely 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 05248800

BAG, DEBRIS COLLECTION

$91.99

$

In Stock, only 4 left!

0

17

Gravely 05194800

FRAME, BAG

$45.99

$

In Stock, only 1 left!

0

18

Gravely 07500425

HOSE, VINYL

$3.99

$

Usually ships in 4-12 days

0
