891007 - Gravely Peco 2-Bag Bagger (SN: 000101 - 000999) Blower Parts Diagram

Peco 2-Bag Bagger

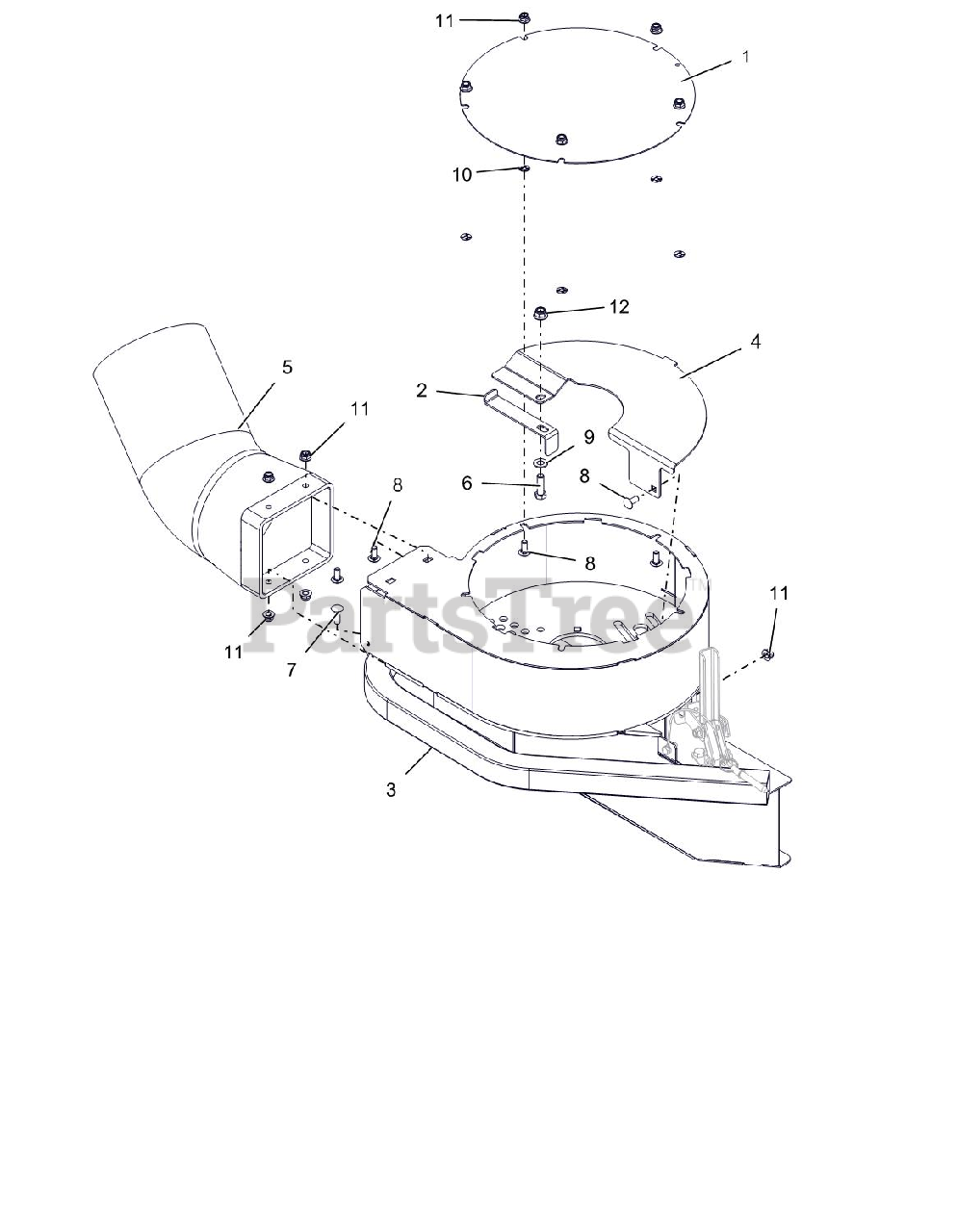

Blower Parts Diagram

  • Title
1

Gravely 00451953

COVER, BLOWER-RED

$30.99

$

Usually ships in 4-12 days

0

2

Gravely 00956151

FINGER - BELT

$13.99

$

Usually ships in 4-12 days

0

3

Gravely 04581053

COMM BAGGER BLOWER WLDMT - RED

$845.99

$

Usually ships in 4-12 days

0

4

Gravely 04587900

COVER, BOTTOM

$

$

Not available

5

Gravely 04714700

ADAPTER-HOSE 52/60"

$142.99

$

In Stock, only 3 left!

0

6

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06200007

@BLT-RHDSSQNK .31-18X1.00 G5YZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0
