891007 - Gravely Peco 2-Bag Bagger (SN: 000101 - 000999) Belt Drive Assembly Parts Diagram

Peco 2-Bag Bagger

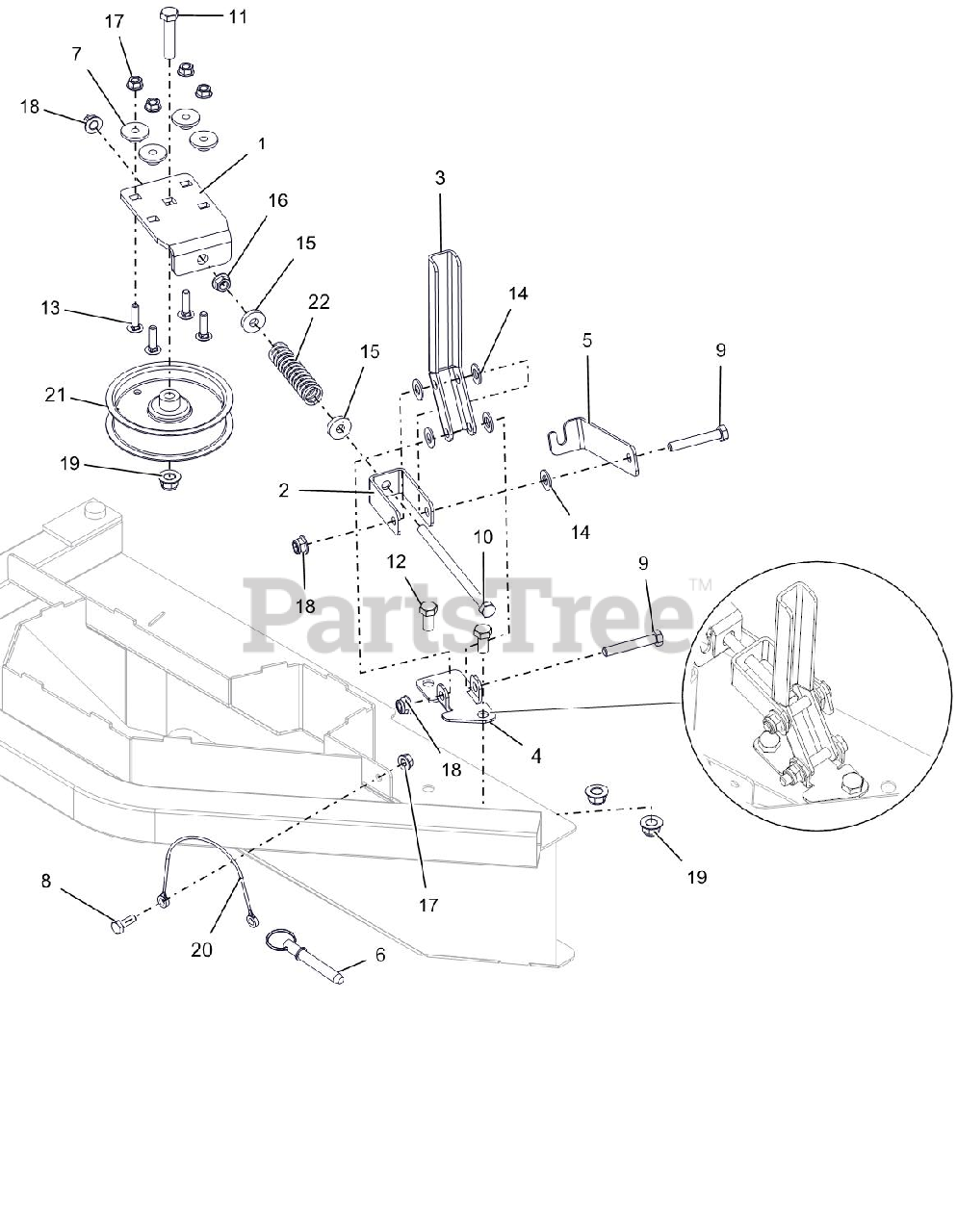

Belt Drive Assembly Parts Diagram

  • Title
1

Gravely 00168100

BRACKET, ADJUSTABLE IDLER

$

$

Not available

2

Gravely 00474251

LINK - IDLER RELEASE

$18.99

$

Usually ships in 4-12 days

0

3

Gravely 00474351

LEVER - IDLER RELEASE

$26.99

$

Usually ships in 4-12 days

0

4

Gravely 00474451

MOUNT - IDLER RELEASE LEVER

$19.99

$

Usually ships in 4-12 days

0

5

Gravely 00952451

LOCK - IDLER RELEASE LEVER

$11.99

$

Usually ships in 4-12 days

0

6

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 05500920

BSHG-FLG .265X.477X.375X1.00

$3.99

$

In Stock, Qty 18

0

8

Gravely 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 05957200

@BLT-HEX .31-18X2.00 GR5 YWZC
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 05957600

@BLT-HEX .31-18X5.50 GR5 YWZC
(Superseded to 05901926)

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 06219800

@BLT-RDHDSQNK .25-20X1.00 G5YZ
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 06433600

WSHR-FL-NY .375X.75X.060

$0.99

$

In Stock, Qty 11

0

15

Gravely 06439100

WSHR-FL-STL .328X.87X.179 YWZC
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

16

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$3.49

$

In Stock, only 2 left!

0

21

Gravely 07327100

PULLEY, IDLER 4.00

$37.99

$

In Stock, Qty 16

0

22

Gravely 08312100

SG-COMP .092X.77X3.13 WLD 36

$11.99

$

In Stock, Qty 6

0
