891006 - Gravely Bagger, Rear 2-Bag (SN: 000101 & Above) Blower Housing Assembly Parts Diagram

Bagger, Rear 2-Bag

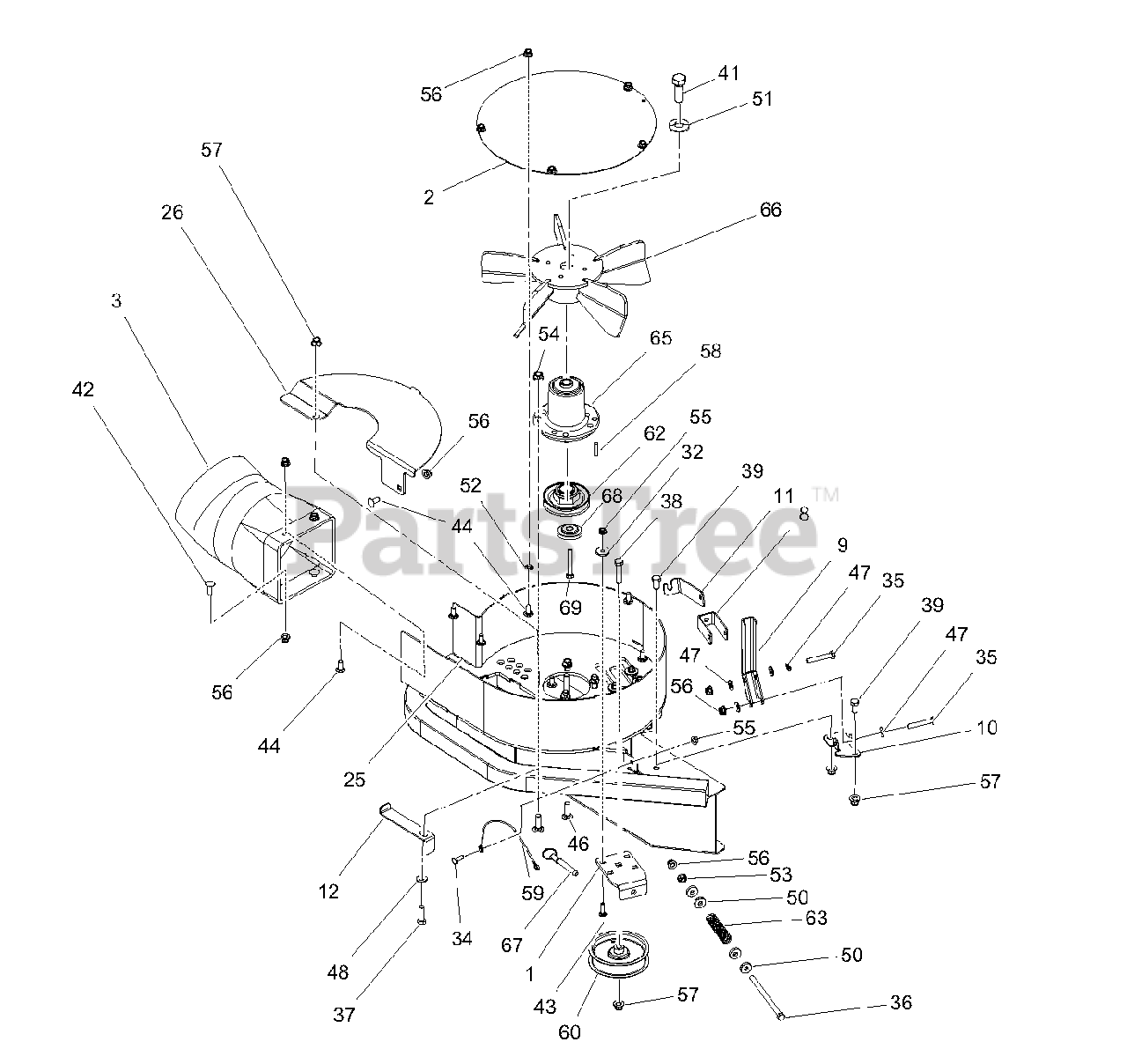

Blower Housing Assembly Parts Diagram

  • Title

1

Gravely 00168100

BRKT, ADJUSTABLE IDLER

$

$

Not available

2

Gravely 00451953

COVER, BLOWER-BLACK

$30.99

$

Usually ships in 4-12 days

0

3

Gravely 00452200

ADAPTER, HOSE

$

$

Not available

8

Gravely 00474251

LINK, IDLER RELEASE-BLACK

$18.99

$

Usually ships in 4-12 days

0

9

Gravely 00474351

LEVER, IDLER RELEASE-BLACK

$26.99

$

Usually ships in 4-12 days

0

10

Gravely 00474451

MOUNT, IDLER RELEASE LEVER-BLK

$19.99

$

Usually ships in 4-12 days

0

11

Gravely 00952451

LOCK, IDLER RELEASE LEVER-BLACK

$11.99

$

Usually ships in 4-12 days

0

12

Gravely 00956151

FINGER BELT-BLACK

$13.99

$

Usually ships in 4-12 days

0

25

Gravely 04581053

WELDMENT, BAGGER BLOWER-RED

$845.99

$

Usually ships in 4-12 days

0

26

Gravely 04587951

COVER, BOTTOM - BLK

$36.99

$

Usually ships in 4-12 days

0

32

Gravely 05500920

BSHG, FLG .265 X .477 X .375 X 1.00

$3.99

$

In Stock, Qty 16

0

34

Gravely 05946800

BLT-HEX .25-20 X .75
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 05957200

BLT-HEX .31-18 X 2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

36

Gravely 05957600

BLT-HEX .31-18 X 5.50
(Superseded to 05901926)

$3.49

$

Usually ships in 4-12 days

0

37

Gravely 05958000

BLT-HEX .38-16 X 1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 05958500

BLT-HEX .38-16 X 1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

39

Gravely 05959400

BLT-HEX .38-16 X .75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

41

Gravely 05978900

BLT, HEX .62-18 X 1.75
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

42

Gravely 06200007

BLT-RDHDSQSHNK .31-18 X 1.00
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

43

Gravely 06219800

BLT-RDHDSQNK .25-20 X 1.00
(Superseded to 06200402)

$2.49

$

In Stock, only 3 left!

0

44

Gravely 06220800

BLT-RHDSSQNK .31-18 X .75
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

46

Gravely 06224100

BLT-RDHDSQNK .38-16 X 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

47

Gravely 06433600

WSHR-FL-NYL .375 X .75 .060

$0.99

$

In Stock, Qty 11

0

48

Gravely 06436200

WSHR-FL-STL .406 X .812 X .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

50

Gravely 06439100

WSHR-FL-STL .328 X .87 X .179
(Superseded to 06401103)

$3.49

$

In Stock, only 2 left!

0

51

Gravely 06445700

WSHR, BLVL .63 X 1.625 X .14

$4.99

$

In Stock, only 3 left!

0

52

Gravely 06514900

NUT, PUSH .312

$0.99

$

In Stock, Qty 20+

0

53

Gravely 06530400

NUT-SPNLK-FLG .312-18
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

54

Gravely 06534800

NUT, LK-CTR-FLG .38-16
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

55

Gravely 06543500

NUT, LK-TOP-FLG .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

56

Gravely 06545400

NUT-LK-NYL-FLG .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

57

Gravely 06545500

NUT-LK-NYL-FLG .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

58

Gravely 06611200

KEY SQUARE .25 X .25 X 1.00 RC 40-50

$2.99

$

In Stock, Qty 15

0

59

Gravely 06900317

LANYARD, 12"

$3.49

$

In Stock, only 2 left!

0

60

Gravely 07327100

PULLEY, IDLER 4.00 X .375

$37.99

$

In Stock, Qty 16

0

62

Gravely 07340567

PULLEY, 1" OD X 3.50" OD-LOW FILM

$91.99

$

Usually ships in 4-12 days

0

63

Gravely 08312100

SPRG, COMPRESSION

$11.99

$

In Stock, Qty 6

0

65

Gravely 59216000

SPINDLE BLOWER ASSEMBLY

$517.99

$

Usually ships in 4-12 days

0

66

Gravely 04590100

WLDMT, IMPELLER FAN

$246.99

$

Usually ships in 4-12 days

0

67

Gravely 01593500

PIN, SPRING BALL .375 OD X 1.50

$5.99

$

Usually ships in 4-12 days

0

68

Gravely 04530500

RETAINER, SHEAVE

$7.99

$

In Stock, Qty 20+

0

69

Gravely 05963000

BLT-HEX .38-16 X 2.75
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0
