891004 - Gravely 100i Series Bagger (SN: 000101 & Above) Bagger Cover Assembly Parts Diagram

100i Series Bagger

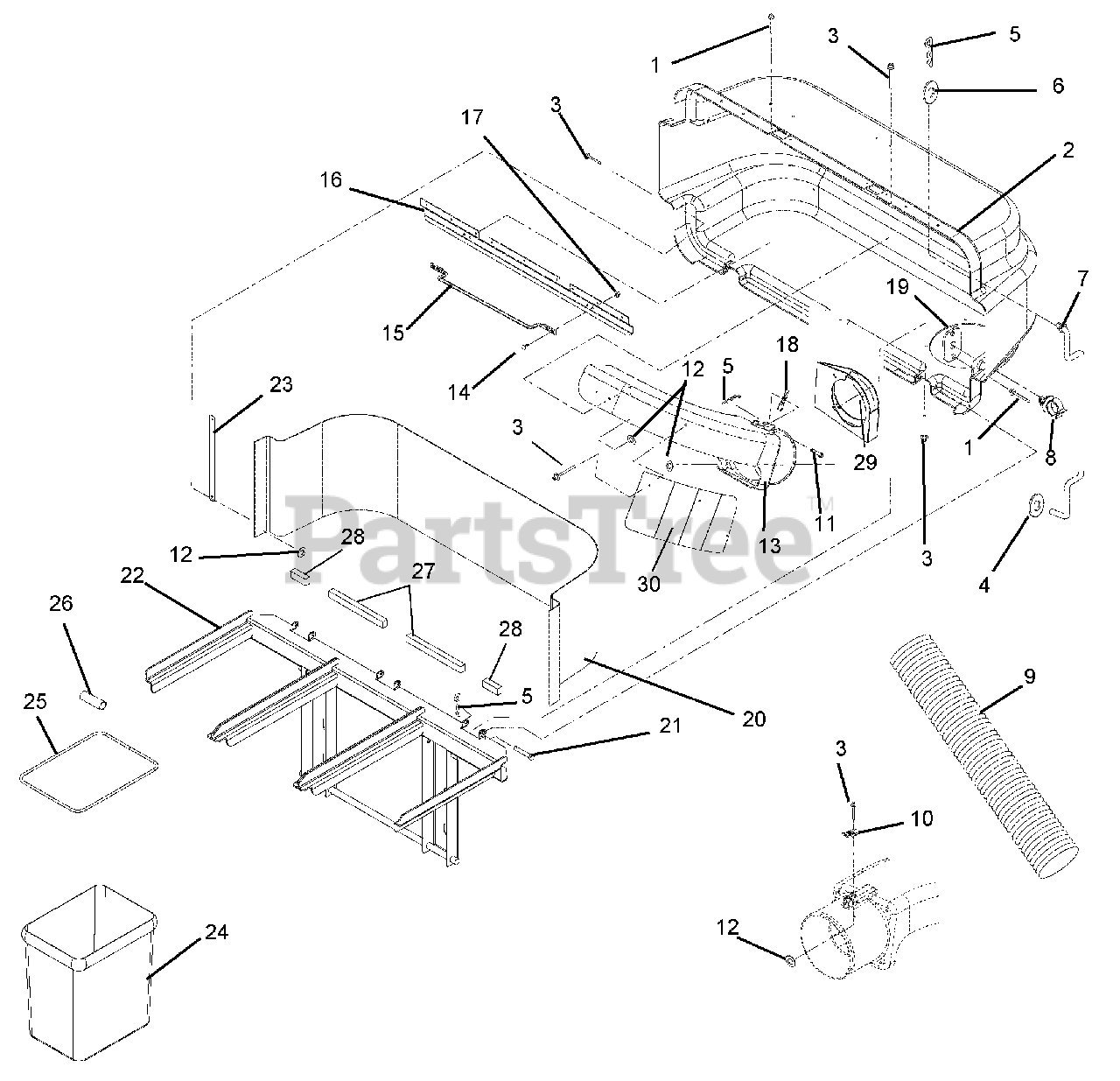

Bagger Cover Assembly Parts Diagram

  • Title

1

Gravely 06802500

Rivet, Pop .187 x .402

$1.49

$

In Stock, Qty 10

0

2

Gravely 59103100

Cover, Bagger with Decal

$452.99

$

Usually ships in 4-12 days

0

3

Gravely 06803800

Rivet, Pop .187 x .527 Dome Steel

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00548400

Retainer, .38 Push-On

$1.49

$

In Stock, only 2 left!

0

5

Gravely 06714800

Pin-Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 06436200

Washer-Flat-Steel .046 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 00292600

Prop Rod, Bagger

$58.99

$

Usually ships in 4-12 days

0

8

Gravely 07534100

Clip .38

$9.49

$

Usually ships in 4-12 days

0

9

Gravely 00486100

Hose, 7 x 63 Kanaflex 165 Clear

$252.99

$

Usually ships in 4-12 days

0

10

Gravely 07000026

Thumb Latch

$9.49

$

In Stock, only 2 left!

0

11

Gravely 06815300

Pin, Clevis .31 x 2.62 Grade 5

$3.99

$

Usually ships in 4-12 days

0

12

Gravely 06442700

Washer-Flat-Steel .219 x .50 x .049
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

13

Gravely 00165900

Boot, Upper

$121.99

$

Usually ships in 4-12 days

0

14

Gravely 06219900

Bolt, Round Head Square Neck .25-20 x .75 Grade 5
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 00453000

Bagger Handle

$40.99

$

Usually ships in 4-12 days

0

16

Gravely 00450851

Latch, Cover

$51.99

$

Usually ships in 4-12 days

0

17

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 00168300

Indicator, Flow

$24.99

$

In Stock, only 1 left!

0

19

Gravely 00294400

Plate, Rod Clip

$13.99

$

In Stock, only 1 left!

0

20

Gravely 00166900

Screen, Bagger

$

$

Not available

21

Gravely 02747500

Pin, Clevis .368/.373 x 3.25

$5.99

$

In Stock, only 1 left!

0

22

Gravely 03372951

Weldment, Bagger Frame

$563.99

$

Usually ships in 4-12 days

0

23

Gravely 00174851

Strap, Cover

$13.99

$

Usually ships in 4-12 days

0

24

Gravely 03370700

Bag, Mesh

$91.99

$

Usually ships in 4-12 days

0

25

Gravely 00663200

Frame, Bag

$40.99

$

Usually ships in 4-12 days

0

26

Gravely 00677000

Hose, .38 x .50 x 3.00 Vinyl

$

$

Not available

27

Gravely 03752800

Grass Block, 10.5-In. Foam

$20.99

$

In Stock, only 2 left!

0

28

Gravely 03752900

Grass Block, 4-In. Foam

$20.99

$

Usually ships in 4-12 days

0

29

Gravely 03765451

Hose Support Insert

$81.99

$

Usually ships in 4-12 days

0

30

Gravely 03765851

HD Bagger Deflector

$37.99

$

Usually ships in 4-12 days

0
