891003 - Gravely HD Three-Bag Bagger (SN: 000101 & Above) Counterweight Assembly Parts Diagram

HD Three-Bag Bagger

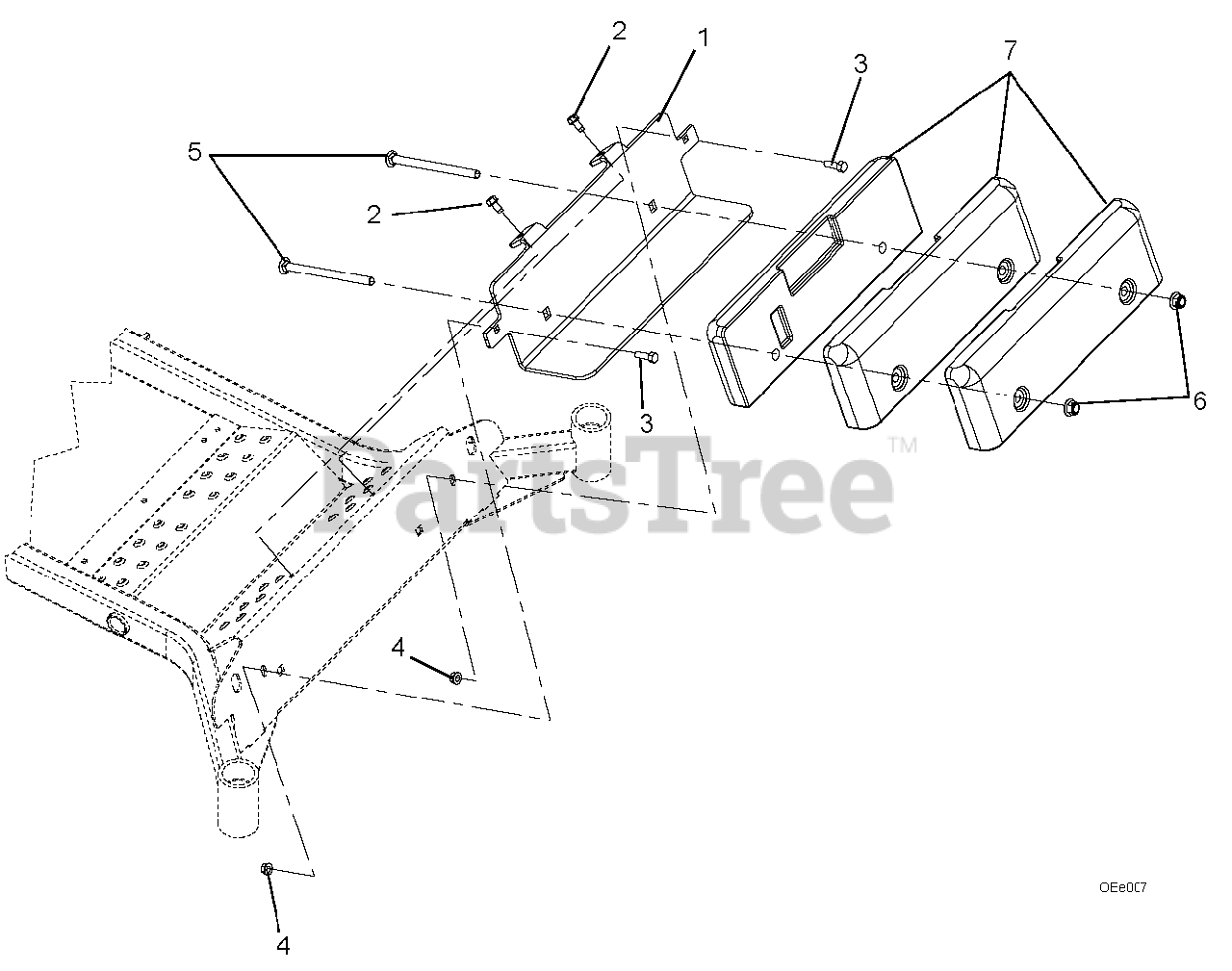

Counterweight Assembly Parts Diagram

  • Title
1

Gravely 03400051

Counterweight Bracket

$187.99

$

Usually ships in 4-12 days

0

2

Gravely 07415400

Screw, .38-16 x .75 Self-Tapping
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25, Grade 5
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

4

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06200113

Bolt, Round Head Square Neck .50-13 x 7.00

$9.49

$

Usually ships in 4-12 days

0

6

Gravely 06500010

Nut, Locking-Top-Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00172000

Counterweight

$297.99

$

Usually ships in 4-12 days

0
