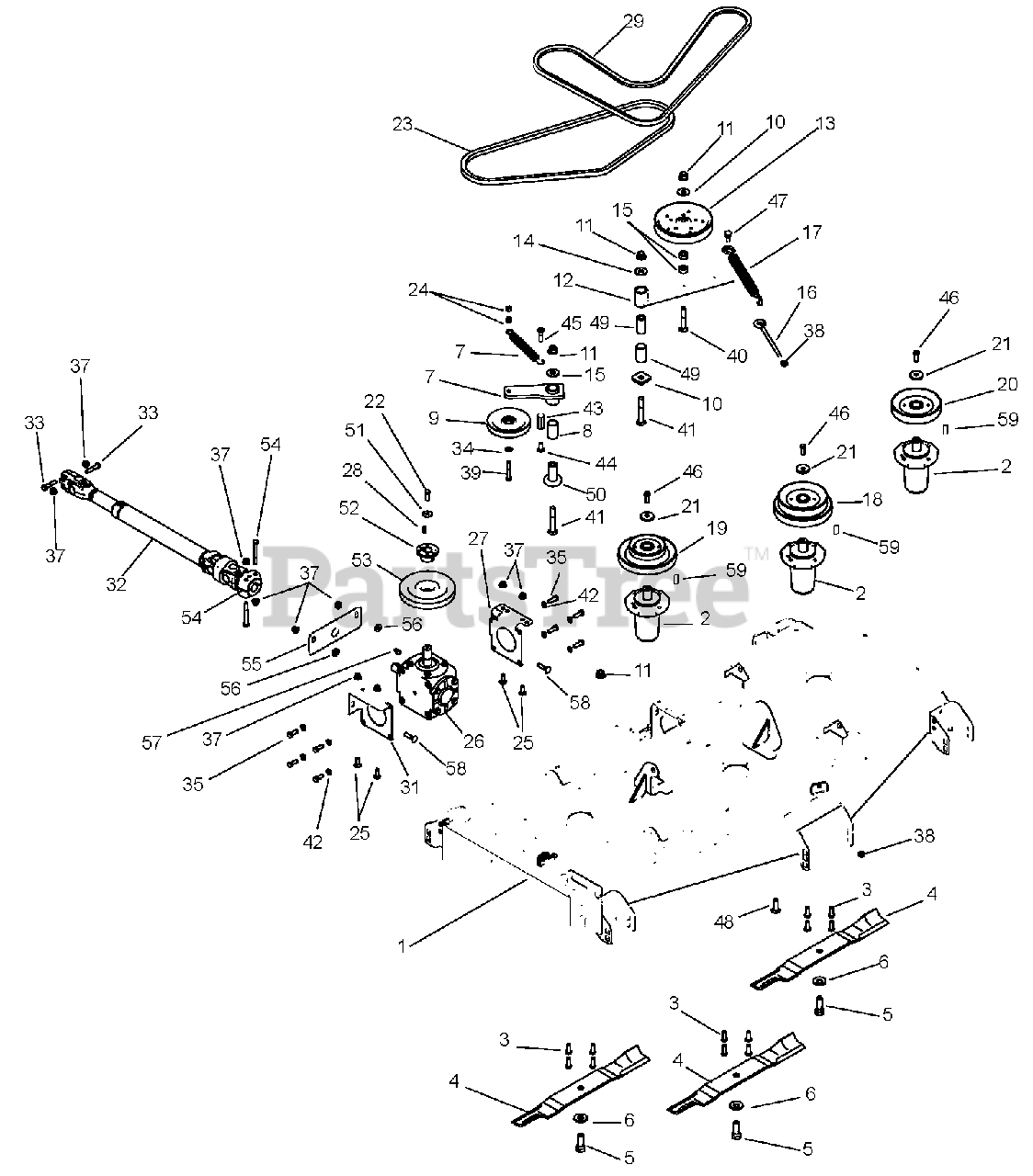

890110 - Gravely 60" X-Factor Zero-Turn Mower Deck (SN: 020000 & Above) Mower Deck Belts, Blades, Idlers Parts Diagram

60" X-Factor Zero-Turn Mower Deck

Mower Deck Belts, Blades, Idlers Parts Diagram

  • Title

1

04546731

Weldment, 60" Side Discharge Deck (OFM)

Note: (OFM)

$

$

Not available

2

Gravely 59215400

Assembly, Spindle
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

3

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 09081200

Blade, Mower (20.50")

Note: (20.50")

$29.99

$

In Stock, Qty 20+

0

Gravely 08866900

Blade, Mower Mulch

$37.99

$

In Stock, Qty 20+

0

5

Gravely 05978900

Bolt, Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 06445700

Washer, Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 20+

0

7

Gravely 00952700

Weldment, Idler Pivot Arm

$

$

Not available

Gravely 00459400

Assembly, Idler Pivot Arm (includes items 7 and 8)

Note: (includes items 7 and 8)

$83.99

$

Usually ships in 4-12 days

0

8

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

9

Gravely 07300526

Sheave, .38" ID x 5.00" OD V-Idler
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

10

Gravely 06400829

Washer, Flat .640 x 1.75 x .250

$3.99

$

In Stock, only 4 left!

0

11

Gravely 06500010

Nut, Nyloc Flange .50-13
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 03774251

Idler Pivot Arm Weldment- Black

$68.99

$

In Stock, only 1 left!

0

Gravely 03796300

Assembly, Idler Pivot Arm (includes items 12 and 8)
(Superseded to 59218300)

Note: (includes items 12 and 8)

$79.99

$

Usually ships in 4-12 days

0

13

Gravely 07316700

Idler, Flat-Pulley 6.75 x .510

$63.99

$

In Stock, only 2 left!

0

14

Gravely 06442000

Washer, Flat-Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.49

$

In Stock, only 2 left!

0

15

Gravely 05500905

Bushing, Spacer .502 x .997 x .50

$11.99

$

In Stock, Qty 18

0

16

Gravely 07001604

Bolt, .38-16 x 5.50 .62 Diameter Eye

$6.99

$

Usually ships in 4-12 days

0

17

Gravely 08300505

Spring, Extension

$25.99

$

In Stock, Qty 20+

0

18

Gravely 07335567

Pulley, Double 1" ID x 6.75" OD

$116.99

$

Usually ships in 4-12 days

0

19

Gravely 07329167

Pulley, Double 1.0" ID x 6.75" x 4.25" OD

$84.99

$

In Stock, Qty 7

0

20

Gravely 07329367

Pulley, V-1" ID x 6.75" OD
(Superseded to 07329300)

$68.99

$

In Stock, Qty 18

0

21

Gravely 04530500

Washer, Flat Steel .406 x 1.50 x .245

$7.99

$

In Stock, Qty 20+

0

22

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 07200038

Belt, B 63.00 Raw Cogged

$67.99

$

In Stock, Qty 20+

0

24

Gravely 06529600

Nut, Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

26

Gravely 04263800

Gear Box,Right Angle 1.05 x 1.0

$912.99

$

Usually ships in 4-12 days

0

27

Gravely 04269851

Bracket, Gear Box Mounting Left Hand

$

$

Not available

28

Gravely 06605500

Key, Straight .25 x .75 x .25

$2.99

$

In Stock, only 1 left!

0

29

Gravely 07200504

Belt, B 86.00 Wrapped

$68.99

$

In Stock, only 1 left!

0

30

Gravely 06436300

Washer, Flat Steel 1.00 x 1.505 x .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 04269951

Bracket, Gear Box Mounting Right Hand

$

$

Not available

32

Gravely 04297300

Shaft, PTO Drive Assembly

$725.99

$

Usually ships in 4-12 days

0

33

Gravely 05958500

Bolt, Hex .38-16 x 1.175
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 05900013

Bolt, Hex .38-16 x 1.00 Grade 8 EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 08300507

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

37

Gravely 06545500

Nut, Nylon Locking Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 06529400

Nut, Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 05962900

Bolt, Hex .38-16 x 2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

40

Gravely 06224900

Bolt, Roundhead Squareneck .50-13 x 3.00

$5.99

$

In Stock, Qty 20+

0

41

Gravely 06200003

Bolt, Roundhead Squareneck .50-13 x 3.50
(Superseded to 06200340)

$5.99

$

In Stock, only 4 left!

0

42

Gravely 06306500

Washer, Lock .375 x .115
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

43

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 6

0

44

Gravely 06212000

Bolt, Roundhead Squareneck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

45

Gravely 05957900

Bolt, Hex .38-16 x 1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

46

Gravely 05963000

Bolt, Hex 3/8-16 x 2.75 Grade 5
(Superseded to 05901813)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 07000034

Bolt, Shoulder Hex .38-16 x .30

$3.99

$

In Stock, only 2 left!

0

48

Gravely 06200006

Bolt, Roundhead Squareneck .50-13 x 1.50

$5.99

$

In Stock, only 1 left!

0

49

Gravely 01581700

Bushing, Spacer, .505/.500 x .999/.996 x 2.05/2.03

$5.99

$

In Stock, Qty 20+

0

50

Gravely 07000003

Pedestal, Bearing

$3.99

$

Usually ships in 4-12 days

0

51

Gravely 06425500

Washer, Flat Steel .375 x 1.125 x .065 YWZC
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

52

Gravely 07335900

Bushing, Taper 1" Shaft

$55.99

$

Usually ships in 4-12 days

0

53

Gravely 07335800

Sheave, Taper Bushing 6.45" O.D.

$

$

Not available

54

Gravely 05957800

Bolt, Hex .38-16 x 3.00 YWZC
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

55

Gravely 00959651

Cover, Gearbox Bearing

$

$

Not available

56

Gravely 06436800

Washer, Flat Steel .390 x .88 x 18 YWZX

$3.99

$

Usually ships in 4-12 days

0

57

Gravely 06600800

Key

$3.99

$

In Stock, only 2 left!

0

58

Gravely 06224200

Bolt, Roundhead Squareneck .38-16 x 1.50 YZ
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

59

Gravely 06611200

Key, Square .25 X .25 X 1.00

$2.99

$

In Stock, Qty 20+

0
