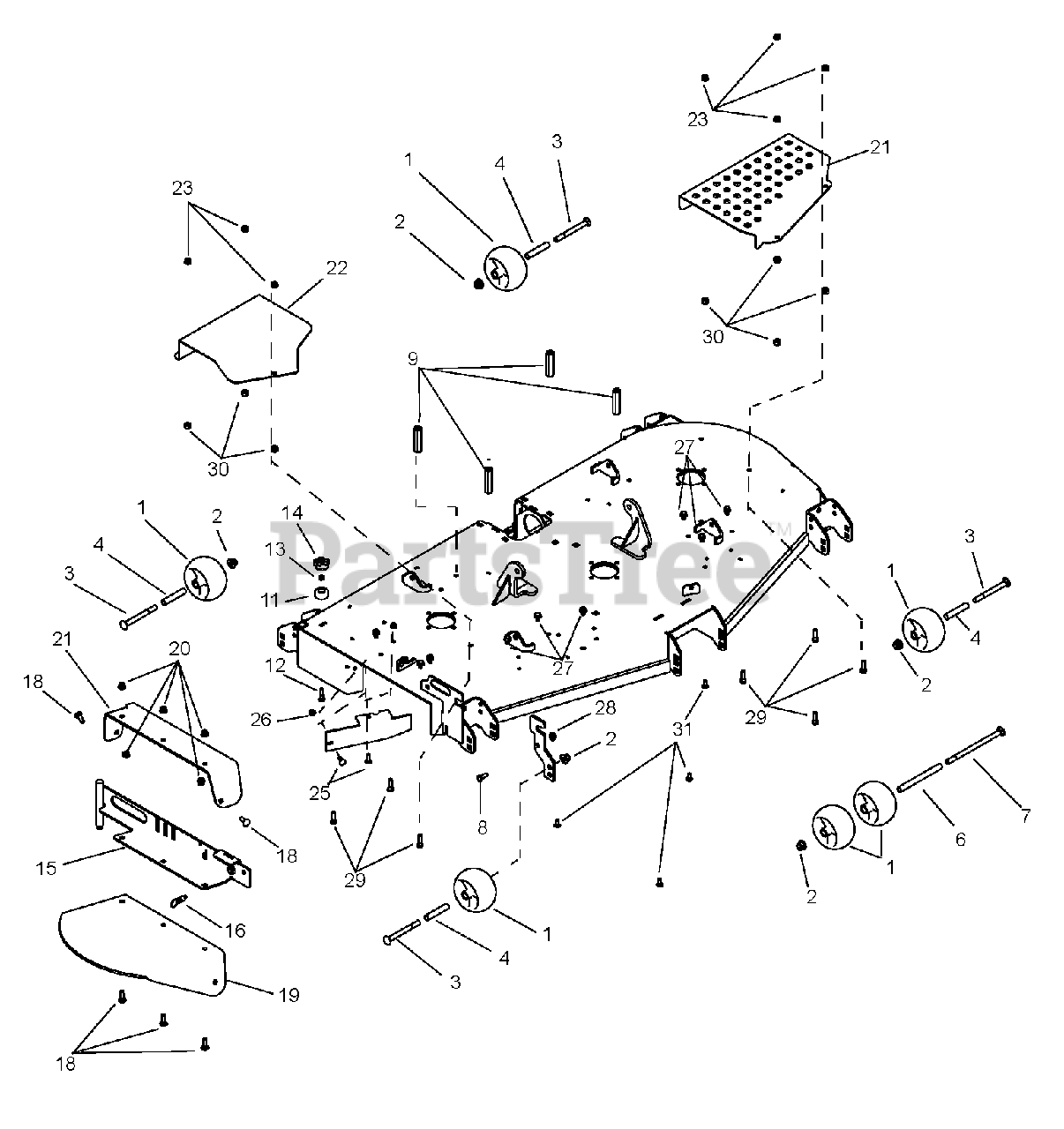

890110 - Gravely 60" X-Factor Zero-Turn Mower Deck (SN: 000101 - 019999) Mower Deck Belt Guards, Baffles And Rollers Parts Diagram

60" X-Factor Zero-Turn Mower Deck

Mower Deck Belt Guards, Baffles And Rollers Parts Diagram

  • Title

1

Gravely 03905900

Wheel, Antiscalp

$11.99

$

In Stock, Qty 20+

0

2

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06225900

Bolt-Round Head Square Neck .50-13 x 5.00 YZ
(Superseded to 06200505)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 00473700

Spacer, .510 x .625 x 3.35

$18.99

$

In Stock, Qty 20+

0

5

Gravely 00474753

Chute Storage Bracket- Red

$28.99

$

Usually ships in 4-12 days

0

6

Gravely 00473800

Spacer, .510 x .625 x 6.70

$21.99

$

In Stock, Qty 20+

0

7

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50
(Superseded to 06200321)

$6.99

$

In Stock, Qty 20+

0

8

Gravely 05948700

Bolt, Hex .38-16 x 1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07000027

Nut-Coupling .31-18 x 3.00

$22.99

$

In Stock, only 3 left!

0

10

Gravely 00374153

60" Discharge Baffle-Red

$28.99

$

In Stock, only 1 left!

0

11

Gravely 07500009

Bumper, Recessed 1.50 x .63

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50
(Superseded to 06200233)

$1.49

$

In Stock, Qty 19

0

13

Gravely 06529800

Nut, Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07534800

Knob, Clamping .312-18 Nyloc

$3.49

$

In Stock, Qty 20+

0

15

Gravely 00980553

52"-60" Discharge Chute Mounting Weldment-Red
(Superseded to 04727953)

$129.99

$

In Stock, only 2 left!

0

16

Gravely 07000037

Pull Pin, .50-13 Thread x .310 Diameter Plunger

$10.99

$

In Stock, only 1 left!

0

17

Gravely 00472353

Rubber Discharge Chute Support-Red

$110.99

$

Usually ships in 4-12 days

0

18

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 00377800

Chute, Rubber Discharge

$68.99

$

In Stock, only 4 left!

0

20

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 04248051

Guard, 60" Left Hand Spindle

$

$

Not available

22

Gravely 03982251

Guard, 60" Right Hand Spindle

$60.99

$

Usually ships in 4-12 days

0

23

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 20+

0

24

Gravely 06300002

Washer, Internal Lock .375

$1.99

$

Usually ships in 4-12 days

0

25

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06545400

Nut, Nyloc Flange .31-18
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 07412900

Screw, Tapping .38-16 x .50
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

28

Gravely 06545500

Nut, Center Lock .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 05958000

Bolt, Hex .38-16 x 1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

30

Gravely 07001525

Nut, Heavy Hex .38-16
(Superseded to 06500823)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06200002

Bolt, Roundhead, Squareneck .31-18 x .75
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0
