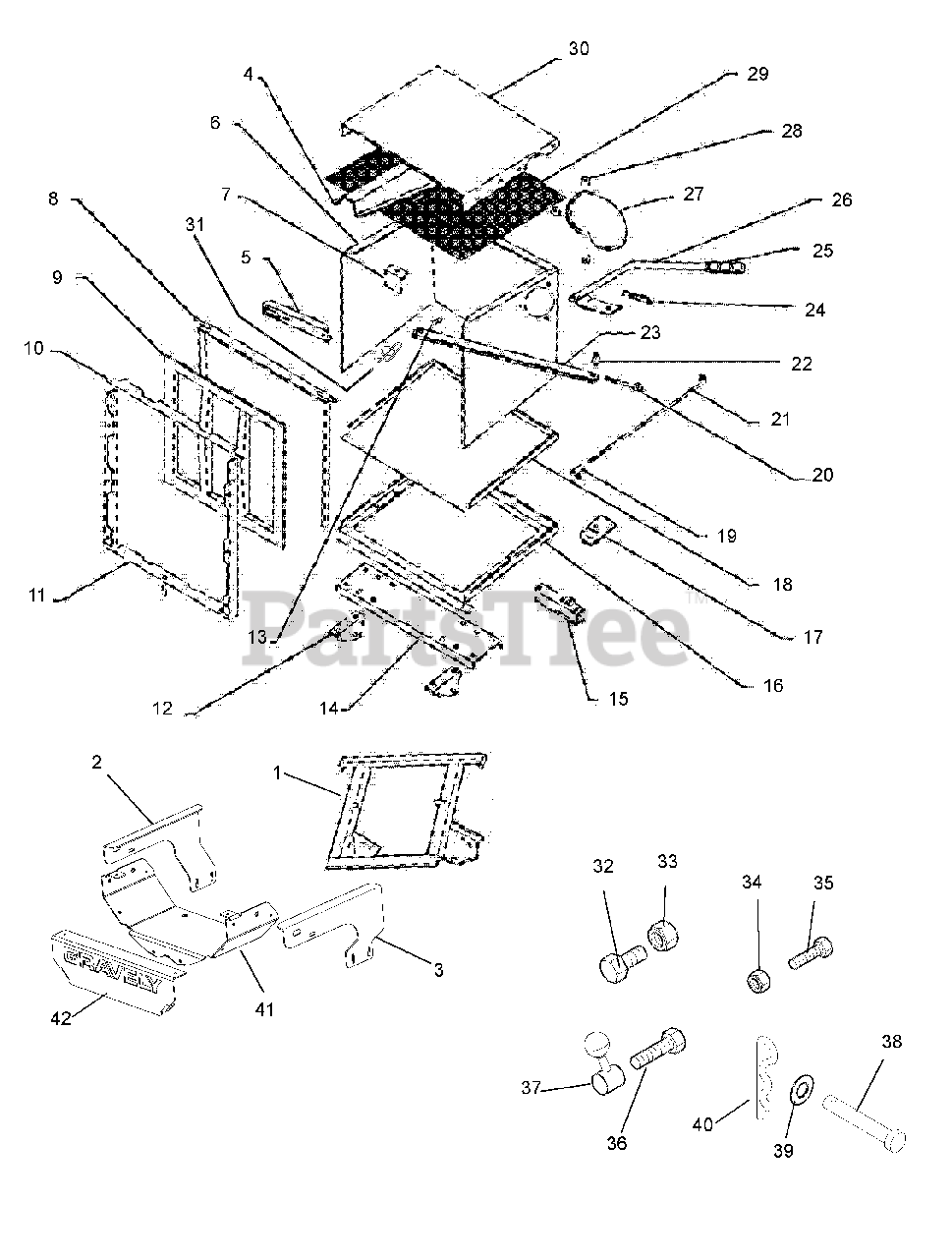

890106 - Gravely Rapid XZ Peco Bagger (SN: 001000 & Above) Grass Container Assembly Parts Diagram

Rapid XZ Peco Bagger

Grass Container Assembly Parts Diagram

  • Title

1

Gravely 00197800

Frame, Top Main

$

$

Not available

2

Gravely 00960451

Bracket, Left

$

$

Not available

3

Gravely 00960351

Bracket, Right

$

$

Not available

4

Gravely 00193700

Screen Support

$

$

Not available

5

Gravely 00193500

Handle Mount

$149.99

$

Usually ships in 4-12 days

0

6

Gravely 00193600

Box Back and Sides

$

$

Not available

7

Gravely 00194000

Fill Gauge

$45.99

$

Usually ships in 4-12 days

0

8

Gravely 00193400

Box Door/Frame

$

$

Not available

9

Gravely 00193000

Plastic Door

$756.99

$

Usually ships in 4-12 days

0

10

Gravely 00193300

Upper Door Member

$162.99

$

Usually ships in 4-12 days

0

11

Gravely 00192900

Door Frame Assembly

$

$

Not available

12

Gravely 00192800

Pivot Bracket

$

$

Not available

13

Gravely 00194100

Linkage Pin

$7.99

$

Usually ships in 4-12 days

0

14

Gravely 00192700

Base Frame Pivot Mount

$168.99

$

Usually ships in 4-12 days

0

15

Gravely 00192600

Latch Hook Plate

$

$

Not available

16

Gravely 00193100

Base Frame

$

$

Not available

17

Gravely 00192500

Latch Hook

$

$

Not available

18

Gravely 00193200

Box Bottom

$598.99

$

Usually ships in 4-12 days

0

19

Gravely 00192400

Ball Joint

$

$

Not available

20

Gravely 07068800

Adjusting Screw

$8.49

$

Usually ships in 4-12 days

0

21

Gravely 00192300

Latch Rod

$168.99

$

Usually ships in 4-12 days

0

22

Gravely 06545600

Nut, Adjusting

$10.99

$

Usually ships in 4-12 days

0

23

Gravely 00192200

Rod, Linkage

$149.99

$

Usually ships in 4-12 days

0

24

Gravely 08354400

Spring, Latch

$16.99

$

Usually ships in 4-12 days

0

25

Gravely 07538700

Grip, Handle

$26.99

$

Usually ships in 4-12 days

0

26

Gravely 00192100

Handle, Box

$336.99

$

Usually ships in 4-12 days

0

27

Gravely 00192000

Inlet

$94.99

$

Usually ships in 4-12 days

0

28

Gravely 00191900

Clamp, Inlet

$11.99

$

Usually ships in 4-12 days

0

29

Gravely 00193800

Screen

$

$

Not available

30

Gravely 00193900

Box Top, Aluminum

$639.99

$

Usually ships in 4-12 days

0

31

Gravely 06715100

Pin, Rue-Lock

$

$

Not available

32

Gravely 05959600

Bolt, Hex .75-10 x 1.50 Grade

$3.49

$

Usually ships in 4-12 days

0

33

Gravely 06540800

Nut, Lock .75-10

$5.99

$

In Stock, Qty 6

0

34

Gravely 06545500

Nut, Nylon Lock .375-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 05957800

Bolt, Hex .375-16 x 3.0 Grade 5
(Superseded to 05901814)

$2.49

$

In Stock, Qty 20+

0

36

Gravely 05947100

Bolt, Hex .50-13 x 1 Grade 5
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

37

Gravely 00615703

Handle, Pivot Frame

$

$

Not available

38

Gravely 00673600

Pin, Detent .625 x 3.00

$

$

Not available

39

Gravely 06442800

Washer, Flat Steel .656 x 1.31 .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

40

Gravely 06715000

Pin, Hair .156 x 2.625

$

$

Not available

41

Gravely 00944851

Bracket, Main

$

$

Not available

42

Gravely 00944951

Bracket, Center

$

$

Not available
