890100 - Gravely 60" Deck for Rapid XZ Side Discharge Mower (SN: 000101 & Above) Mower Deck, Belts, Blades, Idlers Parts Diagram

60" Deck for Rapid XZ Side Discharge Mower

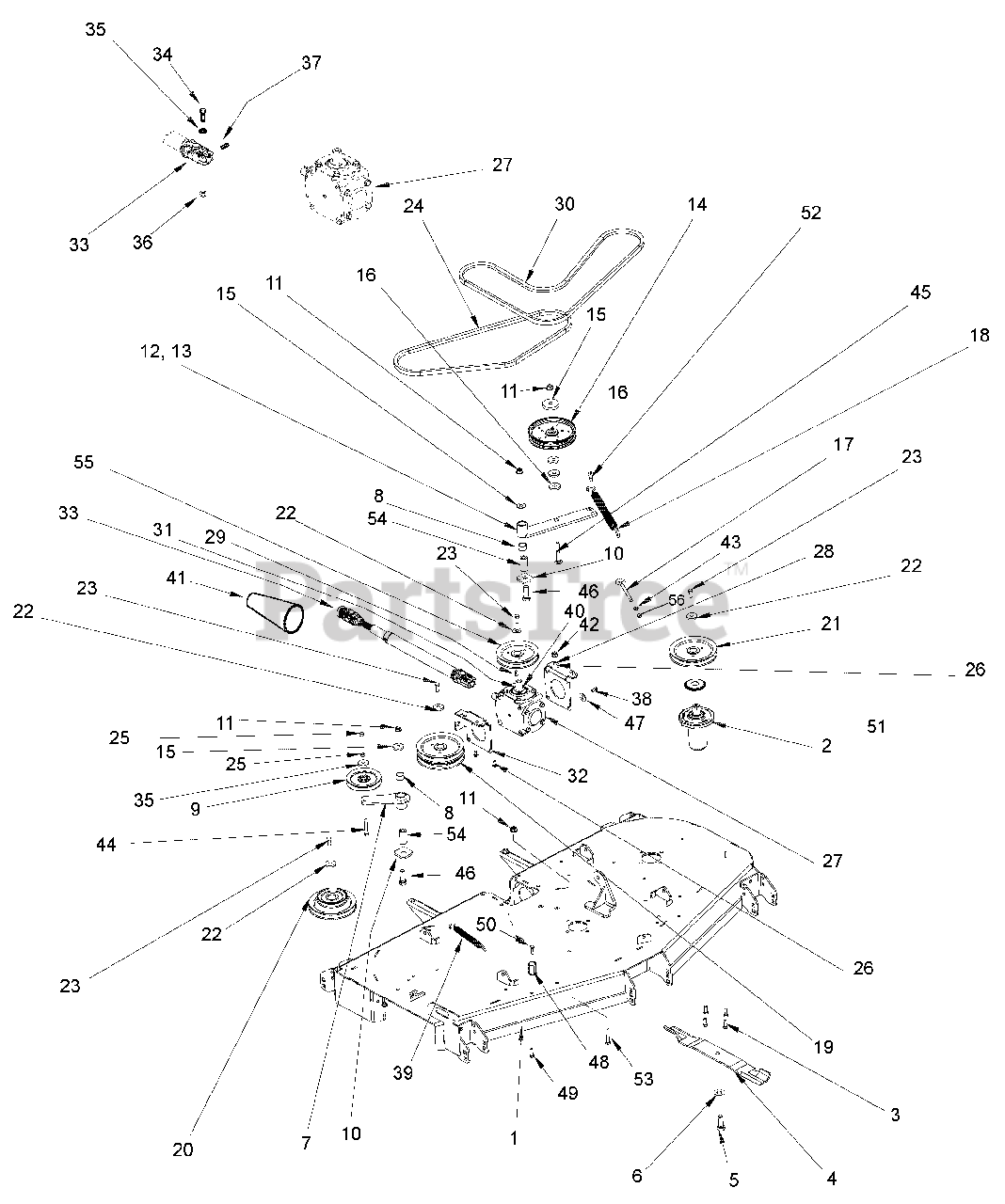

Mower Deck, Belts, Blades, Idlers Parts Diagram

  • Title

1

Gravely 00486653

Weldment, 60" Side Discharge Deck (OFM) (890100)
(Superseded to 59004400)

Note: (OFM) (890100)

$

$

Not available

Gravely 00678153

Weldment, 52" Side Discharge Deck (890101)

Note: (890101)

$

$

Not available

2

Gravely 69221300

Assembly, Spindle
(Superseded to 59225700)

$239.99

$

In Stock, Qty 20+

0

3

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 09081200

Blade, Mower (20.50") (890100)

Note: (20.50") (890100)

$29.99

$

In Stock, Qty 20+

0

Gravely 00450300

Blade, Hi-Lift Mower (18.00") (890101)

Note: (18.00") (890101)

$29.99

$

In Stock, Qty 20+

0

5

Gravely 05978900

Bolt-Hex .62-18 x 1.75 Grade 8
(Superseded to 05901822)

$3.49

$

In Stock, Qty 20+

0

6

Gravely 06445700

Washer-Bellville .63 x 1.625 x .14

$4.99

$

In Stock, Qty 9

0

7

Gravely 00952700

Weldment, Idler Pivot Arm

$

$

Not available

Gravely 00459400

Assembly, Idler Pivot Arm (includes items 7 and 8)

Note: (includes items 7 and 8)

$83.99

$

Usually ships in 4-12 days

0

8

Gravely 05500123

Bushing, 1.00 x 1.125 x 1.937
(Superseded to 05501234)

$10.99

$

In Stock, Qty 20+

0

9

Gravely 07300526

Sheave, .38" ID x 5.00" OD V-Idler
(Superseded to 07351800)

$30.99

$

In Stock, Qty 20+

0

10

Gravely 06400829

Washer, Flat .640 x 1.75 x .250

$3.99

$

In Stock, only 2 left!

0

11

Gravely 06500010

Nut .50-13 Nyloc Flange (890100)
(Superseded to 06500810)

Note: (890100)

$1.49

$

In Stock, Qty 20+

0

Gravely 06545500

Nut .38-16 Nyloc Flange (890101)
(Superseded to 06500726)

Note: (890101)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 03774251

Idler Pivot Arm Weldment- Black (890100)

Note: (890100)

$68.99

$

In Stock, only 1 left!

0

Gravely 03796300

Assembly, Idler Pivot Arm (includes items 12 and 8) (890100)
(Superseded to 59218300)

Note: (includes items 12 and 8) (890100)

$79.99

$

Usually ships in 4-12 days

0

13

Gravely 00960651

Idler Pivot Arm, Rapid XZ 52" (890101)

Note: (890101)

$77.99

$

Usually ships in 4-12 days

0

Gravely 00960900

Assembly, Idler Pivot Arm, Rapid XZ 52" (includes items 13 and 8) (890101)

Note: (includes items 13 and 8) (890101)

$77.99

$

Usually ships in 4-12 days

0

14

Gravely 07316700

Idler-Flat-Pulley 6.75 x .510 (890100)

Note: (890100)

$63.99

$

In Stock, only 2 left!

0

Gravely 07300039

Assembly Idler, 4" (890101)
(Superseded to 07350100)

Note: (890101)

$48.99

$

In Stock, Qty 20+

0

15

Gravely 06442000

Washer-Flat-Steel .563 x 1.38 x .109 (890100)
(Superseded to 06401012)

Note: (890100)

$2.49

$

In Stock, only 1 left!

0

Gravely 06435900

Washer-Flat-Steel .438 x 1.00 x .083 (890101)
(Superseded to 06401008)

Note: (890101)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 05500905

Bushing, Spacer .502 x .997 x .50 (890100)

Note: (890100)

$11.99

$

In Stock, Qty 18

0

Gravely 05500905

Bushing, Spacer .502 x .997 x .50 (890101)

Note: (890101)

$11.99

$

In Stock, Qty 18

0

17

Gravely 07001604

Bolt, .38-16 x 5.50 .62 Diameter Eye

$6.99

$

Usually ships in 4-12 days

0

18

Gravely 08300505

Spring, Extension (890100)

Note: (890100)

$25.99

$

In Stock, Qty 20+

0

39

Gravely 08300507

Spring, Extension
(Superseded to 08300728)

$26.99

$

In Stock, Qty 20+

0

19

Gravely 07328867

Pulley, Double 1" ID x 6.75" OD (890100)
(Superseded to 59211500)

Note: (890100)

$91.99

$

In Stock, Qty 20+

0

Gravely 07332367

Pulley, Double 1" ID x 6.00" OD (890101)
(Superseded to 07332300)

Note: (890101)

$77.99

$

In Stock, Qty 16

0

20

Gravely 07329167

Pulley, Double 1.0" ID x 6.75" x 4.25" OD (890100)

Note: (890100)

$84.99

$

In Stock, Qty 7

0

Gravely 07332267

Pulley, Double 1.0" ID x 3.50" x 6.0" OD (890101)

Note: (890101)

$79.99

$

In Stock, only 1 left!

0

21

Gravely 07328967

Pulley, Single 1" ID x 6.75" OD (890100)
(Superseded to 59211600)

Note: (890100)

$82.99

$

In Stock, Qty 8

0

Gravely 07332167

Pulley, Single 1" ID x 6.00" OD (890101)
(Superseded to 59211700)

Note: (890101)

$82.99

$

In Stock, only 1 left!

0

22

Gravely 06400006

Washer, Flat Steel .406 x 1.50 x .245
(Superseded to 06401110)

$3.99

$

In Stock, Qty 20+

0

23

Gravely 05900013

Bolt, Hex .38-16 x 1.00 EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 07200038

Belt, B 63.00 Raw Cogged (890100)

Note: (890100)

$67.99

$

In Stock, Qty 20+

0

Gravely 07200036

Belt, B 56.00 Raw Cogged (890101)

Note: (890101)

$62.99

$

In Stock, Qty 15

0

25

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

27

Gravely 00585700

Gear Box- Right Angle 1.05 x 1.0

$

$

Not available

28

Gravely 00594751

Bracket, Gear Box Mounting

$

$

Not available

29

Gravely 06605500

Key-Straight .25 x .75 x .25

$2.99

$

In Stock, only 1 left!

0

30

Gravely 07200034

Belt, B 86.00 Wrapped-(100)

Note: (100)

$68.99

$

Usually ships in 4-12 days

0

Gravely 07200039

Belt, B 76.00 Raw Cogged-(101)

Note: (101)

$75.99

$

In Stock, Qty 10

0

31

Gravely 06436300

Washer, Flat Steel 1.00 x 1.505 x .062
(Superseded to 06401132)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 00597151

Bracket, Gear Box Mounting RH

$45.99

$

In Stock, only 1 left!

0

33

Gravely 00697700

Shaft, PTO Drive Assembly

$776.99

$

Usually ships in 4-12 days

0

34

Gravely 05958500

Bolt, Hex .38-16 x 1.175 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

35

Gravely 06436200

Washer, Flat Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

36

Gravely 06545500

Nut, Top-Lock Flange .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 06004000

Screw, Set .38-16 x .62

$2.99

$

Usually ships in 4-12 days

0

38

Gravely 05900013

Bolt, Hex .38-16 x 1.00 Grade 8 EP30
(Superseded to 05901721)

$1.99

$

In Stock, Qty 20+

0

40

Gravely 05707300

Ring, External Retaining 1.00 x .078

$2.99

$

In Stock, Qty 9

0

41

Gravely 00894700

Bellow, PTO Shaft

$62.99

$

Usually ships in 4-12 days

0

42

Gravely 06545500

Nut, Nylon Locking Flange .38-16 (890100)
(Superseded to 06500726)

Note: (890100)

$1.49

$

In Stock, Qty 20+

0

Gravely 06545500

Nut, Nylon Locking Flange .38-16 (890101)
(Superseded to 06500726)

Note: (890101)

$1.49

$

In Stock, Qty 20+

0

43

Gravely 06535900

Nut, Hex .375-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

44

Gravely 05962900

Bolt, Hex .38-16 x 2.25 Grade 5
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

45

Gravely 06224900

Bolt, Roundhead Squareneck .50-13 x 3.00 Grade 5 (890100)

Note: (890100)

$5.99

$

In Stock, Qty 19

0

Gravely 06224400

Bolt, Roundhead Squareneck .38-16 x 2.50 Grade 5 (890101)
(Superseded to 06200234)

Note: (890101)

$3.99

$

In Stock, Qty 20+

0

46

Gravely 06225000

Bolt, Roundhead Squareneck .50-13 x 3.50 Grade 5
(Superseded to 06200317)

$5.99

$

In Stock, Qty 20+

0

47

Gravely 06306500

Washer, Lock .375 x .115
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

48

Gravely 06533500

Nut, Coupling .375-16 x 1.75

$3.99

$

In Stock, Qty 6

0

49

Gravely 06212000

Bolt, Roundhead Squareneck .38-16 x 1.00 Grade 5
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

50

Gravely 05957900

Bolt, Hex .38-16 x 1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

51

Gravely 00481000

Retainer, Grease

$9.99

$

In Stock, only 1 left!

0

52

Gravely 07000034

Bolt, Shoulder Hex .38-16 x .30

$3.99

$

In Stock, only 1 left!

0

53

Gravely 06200006

Bolt, Roundhead Squareneck .50-13 x 1.50

$5.99

$

In Stock, only 1 left!

0

54

Gravely 01581700

Bushing, Spacer, .505/.500 x .999/.996 x 2.05/2.03

$5.99

$

In Stock, Qty 20+

0

55

Gravely 07333700

Pulley-V 1.00 ID x 6.75 OD

$125.99

$

Usually ships in 4-12 days

0

56

Gravely 06537200

Nut, Locking Center Jam .375-16
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0
