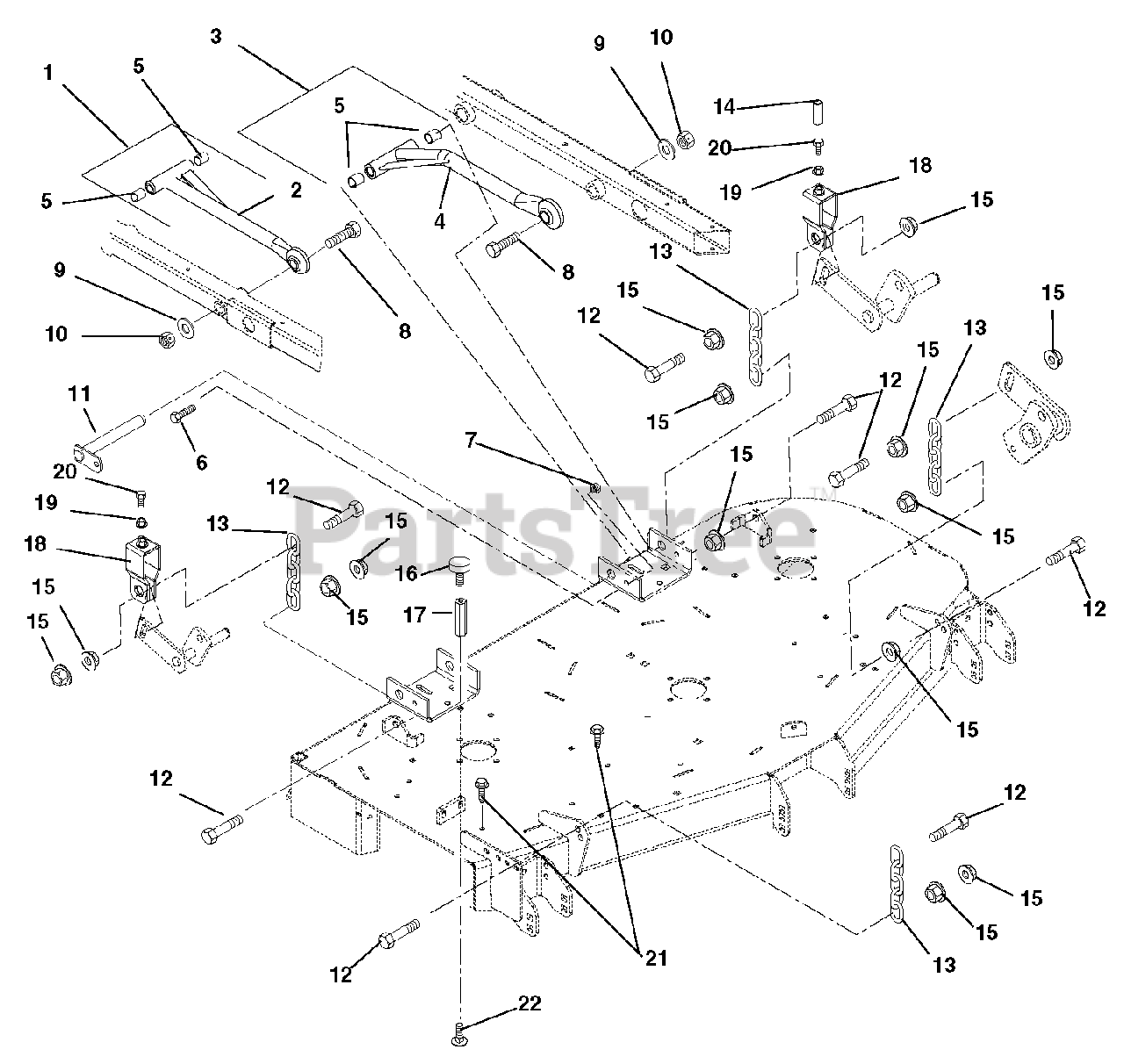

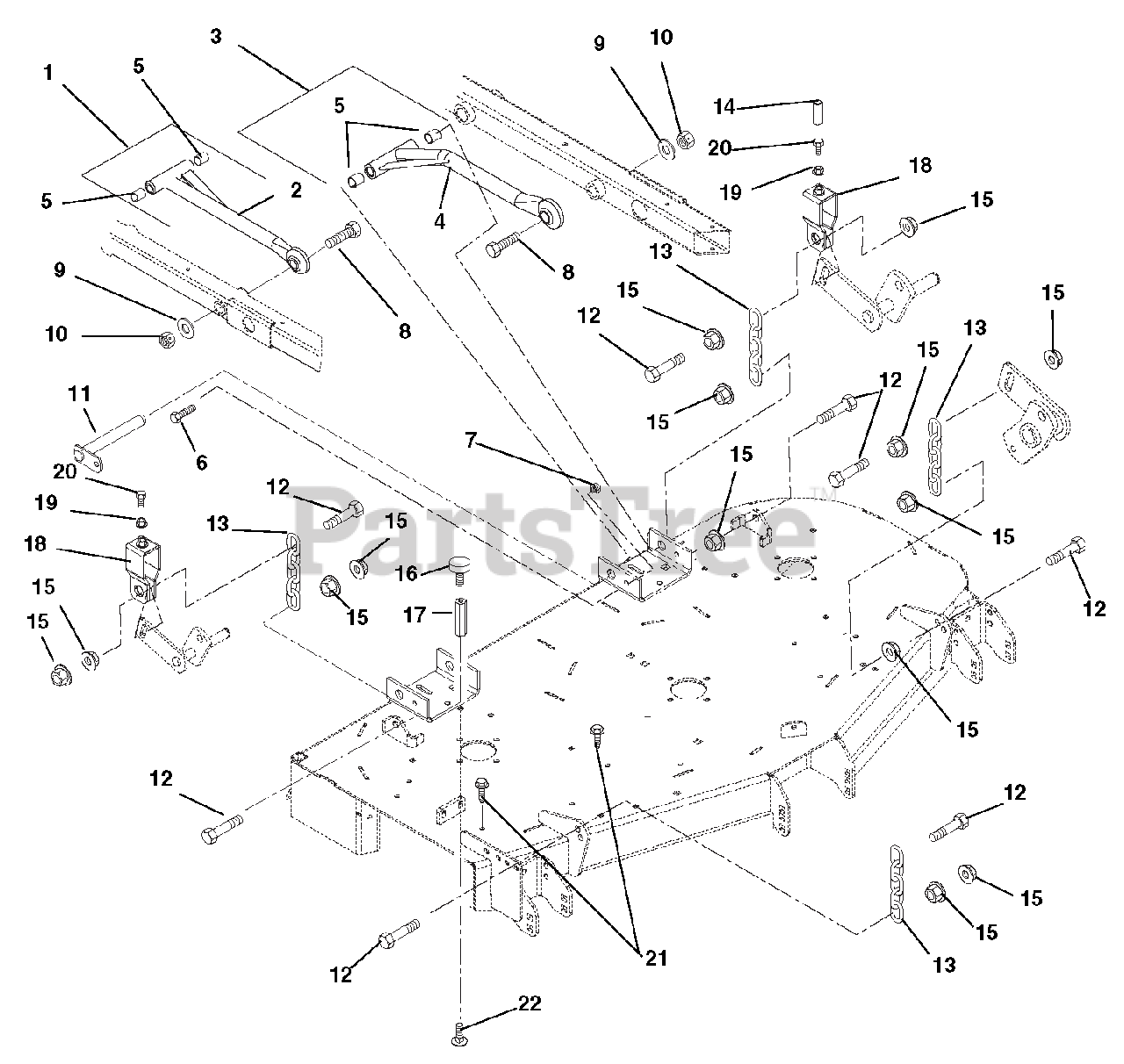

890018 - Gravely 60" Deck for Pro-Master 320XDZ Mower (SN: 020000 & Above) Mounting Arms And Belt Guards Parts Diagram

60" Deck for Pro-Master 320XDZ Mower

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Gravely 09099300

Assembly, Mower Mounting Arm (Contains Items 2, 5)

Note: (Contains Items 2, 5)

$284.99

$

Usually ships in 4-12 days

0

2

Gravely 09099253

Weldment, Mower Mounting Arm

$232.99

$

Usually ships in 4-12 days

0

3

Gravely 04906700

Assembly, Mower Mounting Arm Left Hand (Contains Items 4,5)

Note: (Contains Items 4,5)

$344.99

$

Usually ships in 4-12 days

0

4

Gravely 04913853

Weldment, Mower Mount Arm

$294.99

$

Usually ships in 4-12 days

0

5

Gravely 05435900

Bearing .75 x .875 x 1.00

$5.99

$

In Stock, only 4 left!

0

6

Gravely 05959400

Bolt, Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 05976700

Bolt, Hex .875 x 5.50 Grade 5

$11.99

$

Usually ships in 4-12 days

0

9

Gravely 06444700

Washer, Flat-Steel .875 x 1.500 x .1196
(Superseded to 06401207)

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06539700

Nut, Locking-Center .875-9

$5.99

$

In Stock, Qty 11

0

11

Gravely 09238900

Weldment, Mower Mounting Pin

$61.99

$

In Stock, only 1 left!

0

12

Gravely 05900022

Bolt, Hex M12-1.75 x 50 Grade 5

$3.99

$

In Stock, only 1 left!

0

13

Gravely 09284700

Chain, Link

$6.49

$

Usually ships in 4-12 days

0

14

Gravely 07539500

Cap, Vinyl .50 ID x 1.50LG x .055

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 06500003

Nut, Spin Lock-Flange M12-1.75

$2.49

$

In Stock, only 1 left!

0

16

Gravely 07533600

Bumper, Rubber

$11.99

$

In Stock, only 1 left!

0

17

Gravely 07000027

Nut, Coupling .31-18 x 3.00

$22.99

$

In Stock, only 3 left!

0

18

Gravely 00442800

Bracket, Deck Leveling

$9.49

$

In Stock, only 2 left!

0

19

Gravely 06536100

Nut, Jam .312-18
(Superseded to 06500909)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05980900

Bolt, Full Thread Hex .312-18 x 2.00
(Superseded to 05902003)

$2.99

$

In Stock, only 2 left!

0

21

Gravely 07412900

Screw, Tapping Hex Washer Head Thread .38-16 x .50
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 06200002

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200425)

$3.99

$

In Stock, only 3 left!

0
