890017 - Gravely 72" Deck for Pro-Master 320 Mower (SN: 000101 & Above) Deck Lift Parts Diagram

72" Deck for Pro-Master 320 Mower

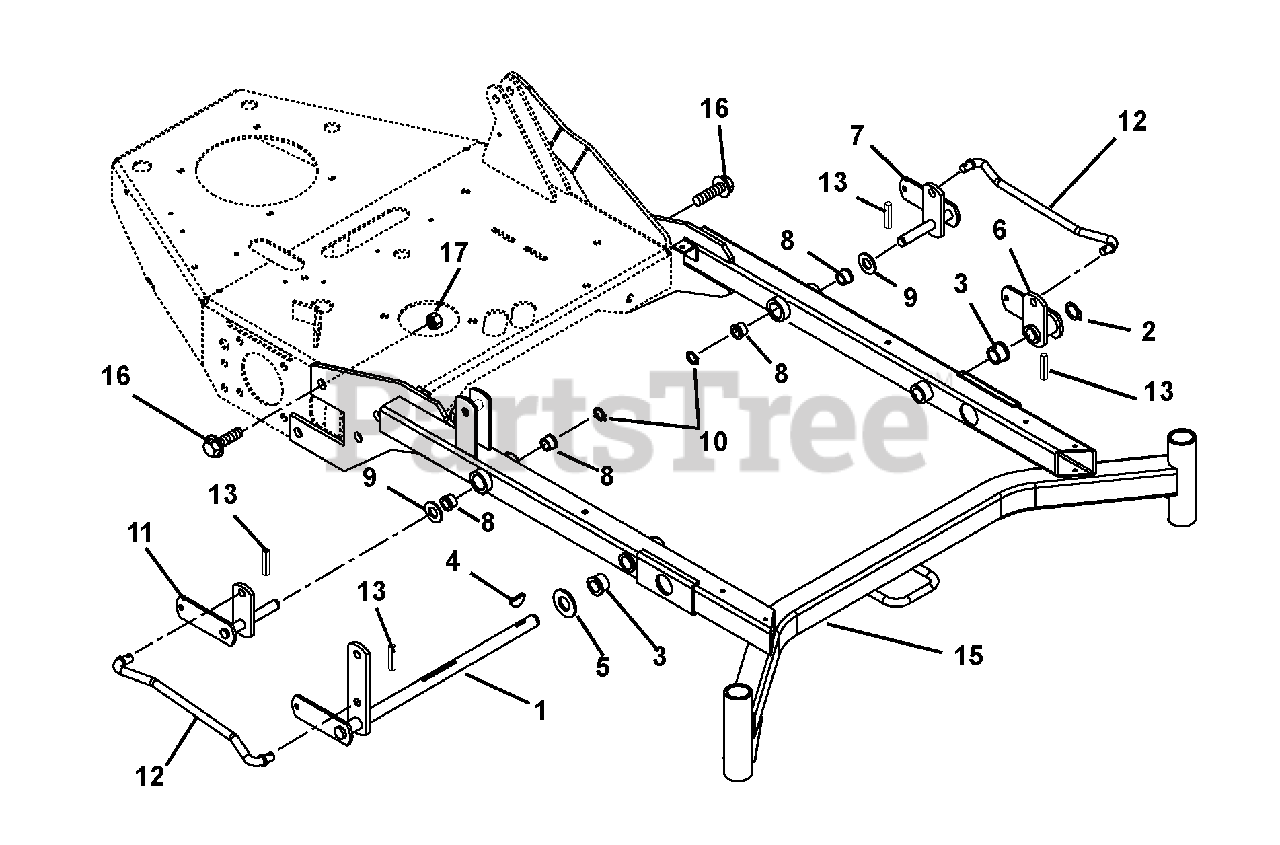

Deck Lift Parts Diagram

  • Title

1

Gravely 09289700

Lift-Mower

$297.99

$

Usually ships in 4-12 days

0

2

Gravely 050203

Ring-Retaining-External 1.00 x .078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

3

Gravely 018355

Bushing-Flange-Nylon 1.02 x 1.39 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

4

Gravely 124553

Key-Woodruff .25 x 1.00
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0

5

Gravely 06443000

Washer-Flat-Steel- 1.062 x 2.0 x .134
(Superseded to 06401203)

$3.99

$

In Stock, only 3 left!

0

6

Gravely 09289800

Mower, Lift Arm

$180.99

$

Usually ships in 4-12 days

0

7

Gravely 09290000

Weldment, Rear Lift Arm-Left Hand

$124.99

$

Usually ships in 4-12 days

0

8

Gravely 010174

Bushing-Flange-Nylon .762 x 1.0 x .580 x 1.48
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

9

Gravely 036407

Washer-Hardened-Steel .758 x 1.23 x .031
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

10

Gravely 026300

Ring-Retaining-External .689 x .077
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

11

Gravely 09289900

Weldment, Rear Lift Arm- Right Hand

$

$

Not available

12

Gravely 00164700

Rod, Lift Assist 19.35"
(Superseded to 04063000)

$

$

Not available

13

Gravely 05800700

Pin-Roll .250 x 1.25

$0.99

$

In Stock, Qty 20+

0

14

Gravely 06436100

Washer-Flat-Steel .630 x 1.005 x .062
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 09099053

Weldment, Mower Frame 50/60
(Superseded to 02950253)

$775.99

$

Usually ships in 4-12 days

0

Gravely 09099153

Weldment, Mower Frame 72

$

$

Not available

16

Gravely 05968700

Bolt-Hex .62-11 x 1.50 Grade 5

$3.99

$

In Stock, only 3 left!

0

17

Gravely 06540700

Nut-Locking-Nylon .625-11

$3.99

$

In Stock, only 2 left!

0
