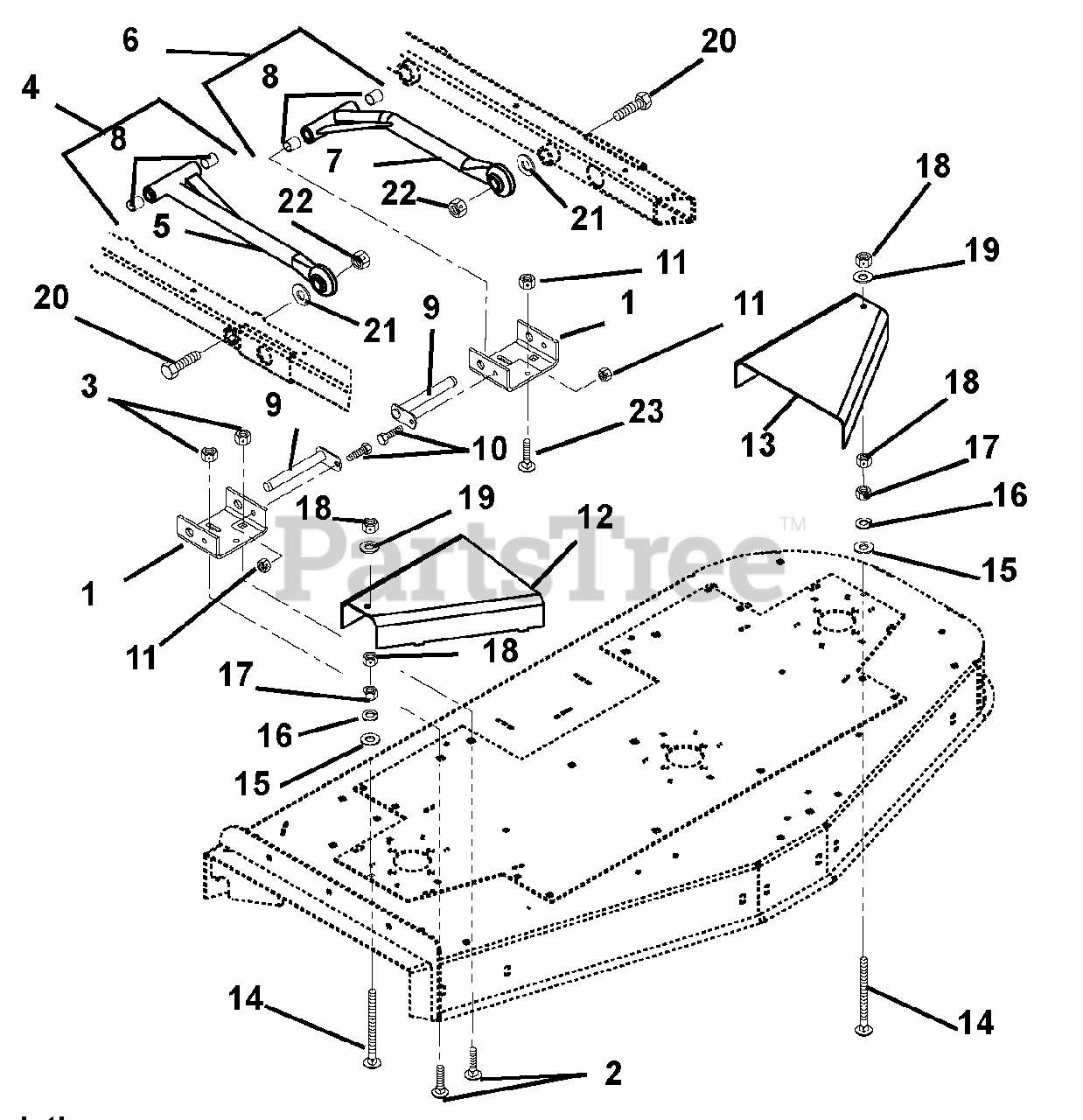

890016 - Gravely 60" Deck for Pro-Master 320 Mower (SN: 000101 & Above) Mounting Arms And Belt Guards Parts Diagram

60" Deck for Pro-Master 320 Mower

Mounting Arms And Belt Guards Parts Diagram

  • Title

1

Gravely 04913953

Bracket, Mower Mounting (Rear)
(Superseded to 09240453)

Note: (Rear)

$34.99

$

Usually ships in 4-12 days

0

2

Gravely 06224600

Bolt-Round Head Square Neck .50-13 x 1.00 Grade 5
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

3

Gravely 06519700

Nut-Locking-Center-Jam .500-13

$2.49

$

Usually ships in 4-12 days

0

4

Gravely 09099300

Assembly, Mower Mounting Arm (Contains Items 5, 8)

Note: (Contains Items 5, 8)

$284.99

$

Usually ships in 4-12 days

0

5

Gravely 09099253

Weldment-Mower Mounting Arm

$232.99

$

Usually ships in 4-12 days

0

6

Gravely 04906700

Assembly, Mower Mounting Arm Left Hand (Contains Items 7,8)

Note: (Contains Items 7,8)

$344.99

$

Usually ships in 4-12 days

0

7

Gravely 04913853

Weldment, Mower Mount Arm

$294.99

$

Usually ships in 4-12 days

0

8

Gravely 05435900

Bearing .75 x .875 x 1.00

$5.99

$

In Stock, only 4 left!

0

9

Gravely 09238900

Weldment, Mower Mounting Pin

$61.99

$

In Stock, only 1 left!

0

10

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09240753

Guard, Pulley Right Hand (016)
(Superseded to 09240751)

Note: (016)

$46.99

$

In Stock, only 2 left!

0

Gravely 09252553

Guard, Pulley Right Hand (017)

Note: (017)

$93.99

$

Usually ships in 4-12 days

0

13

Gravely 09240853

Guard, Pulley Left Hand (016)
(Superseded to 09240851)

Note: (016)

$62.99

$

Usually ships in 4-12 days

0

Gravely 09252453

Guard, Pulley Left Hand (017)

Note: (017)

$103.99

$

Usually ships in 4-12 days

0

14

Gravely 06225300

Bolt-Round Head Square Neck .312-18X3.50

$3.99

$

Usually ships in 4-12 days

0

15

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

18

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 05976700

Bolt,Hex .875 x 5.50 Grade 5

$11.99

$

Usually ships in 4-12 days

0

21

Gravely 06444700

Washer-Flat-Steel .875 x 1.500 x .1196
(Superseded to 06401207)

$3.99

$

In Stock, Qty 20+

0

22

Gravely 06539700

Nut-Locking-Center .875-9

$5.99

$

In Stock, Qty 11

0

23

Gravely 06223900

Bolt-Round Head Square Neck .38-16X.75 Grade
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0
