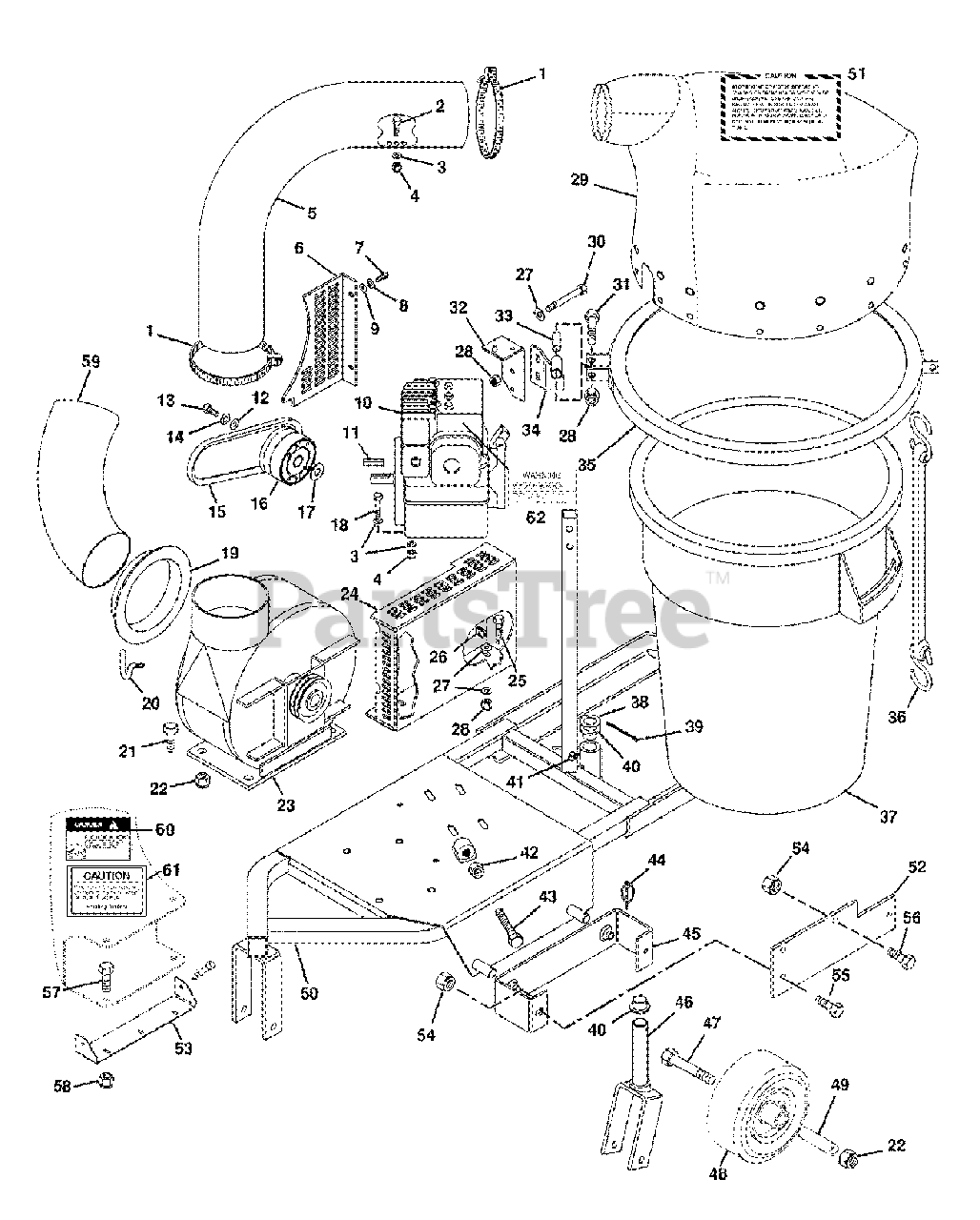

890015 - Gravely Grass Bagger for PM310 (SN: 000101 & Above) Catcher Assembly Parts Diagram

Grass Bagger for PM310

Catcher Assembly Parts Diagram

  • Title

1

Gravely 03444800

Clamp

$

$

Not available

2

Gravely 05946900

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06437200

Washer-Flat .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 09032500

Tube-Catcher
(Superseded to 59209400)

$

$

Not available

6

Gravely 08941700

Cover-Guard

$39.99

$

Usually ships in 4-12 days

0

7

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06308400

Washer-Locking .25 x .062
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 08266600

Engine, 5.5HP Kawasaki

$

$

Not available

11

Gravely 06609600

Key-Hub .187 x 1.500

$2.99

$

Usually ships in 4-12 days

0

12

Gravely 06435700

Washer-Flat-Steel .38 x .875 x .083
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 05947300

Bolt-Hex .31-24 x .75 Grade 5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 06308600

Washer-Locking .31 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 07221100

V-Belt

$

$

Not available

16

Gravely 08941500

Clutch

$362.99

$

Usually ships in 4-12 days

0

17

Gravely 06431900

Race-Bearing-Thrust .060

$9.49

$

Usually ships in 4-12 days

0

18

Gravely 05937400

Bolt-Hex .31-18 x 1.75 Grade 5

$

$

Not available

19

Gravely 04914351

Weldment, Blower Adapter

$

$

Not available

20

Gravely 03444800

Clamp-Screw

$

$

Not available

21

Gravely 05958900

Bolt-Hex .50-13 x 1.25 Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

22

Gravely 06536300

Nut-Locking-Center .50-13
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

23

Gravely 69005000

Assembly, PM-310 Blower

$

$

Not available

24

Gravely 08970200

Guard

$

$

Not available

25

Gravely 05959400

Bolt-Hex .38-16 x .75 Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 07009000

Nut-Retainer

$1.49

$

In Stock, Qty 20+

0

27

Gravely 06436200

Washer-Flat .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06529600

Nut-Locking-Center .38-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 08944900

Cover-Grass Catcher

$

$

Not available

30

Gravely 05958400

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

31

Gravely 05963300

Bolt-Hex .38-16 x 2.00
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

32

Gravely 08942700

Bracket-Tube

$

$

Not available

33

Gravely 08981100

Bushing .385 x .625 x 1.00

$

$

Not available

34

Gravely 08944600

Weldment-Pivot Bracket

$

$

Not available

35

Gravely 08944300

Weldment-Ring

$

$

Not available

36

Gravely 07528100

Strap-Hold Down

$

$

Not available

37

Gravely 08707400

Can-Grass

$

$

Not available

38

Gravely 05421600

Race-Bearing-Thrust
(Superseded to 06435300)

$4.99

$

In Stock, only 3 left!

0

39

Gravely 06712600

Pin-Center .12 x 1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

40

Gravely 05422400

Bearing-Flanged

$14.99

$

Usually ships in 4-12 days

0

41

Gravely 07012800

Fitting-Lube 90 Degree

$4.99

$

In Stock, Qty 5

0

42

Gravely 06529400

Nut-Hex .38-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 05941300

Bolt-Hex Spec. .38-16 x 3.00
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

44

Gravely 07014500

Pin-Klik

$5.99

$

Usually ships in 4-12 days

0

45

Gravely 08981700

Weldment-Catcher Mount

$

$

Not available

46

Gravely 08730400

Weldment-Castor

$

$

Not available

47

Gravely 05964100

Bolt-Hex .50-13 x 5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

48

Gravely 07128500

Wheel-Wing Gauge

$

$

Not available

49

Gravely 08821900

Bushing-Axle

$

$

Not available

50

Gravely 08981800

Weldment-Catcher

$

$

Not available

51

Caution Label

Caution Label

Note: (Part of item 29)

$

$

Not available

52

Gravely 04914451

Plate, Bagger Adapter

$56.99

$

Usually ships in 4-12 days

0

53

Gravely 04918051

Bracket, Boot Mounting

$

$

Not available

54

Gravely 06535300

Nut-Locking-Center .62-11

$2.99

$

Usually ships in 4-12 days

0

55

Gravely 05968700

Bolt-Hex .62-11 x 1.50 Grade 5

$3.99

$

In Stock, only 3 left!

0

56

Gravely 05968100

Bolt-Hex .62-11 x 2.00 Grade 5

$3.49

$

Usually ships in 4-12 days

0

57

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

58

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

59

Gravely 04917500

Hose, Blower 8" x 40

$

$

Not available

60

Boot Decal, Danger

Boot Decal, Danger

Note: Contact Peco Industries, 1-828-684-1234.

$

$

Not available

61

Boot Decal, Caution

Boot Decal, Caution

Note: Contact Peco Industries, 1-828-684-1234.

$

$

Not available

62

Engine Decal, Warning

Engine Decal, Warning

Note: Contact Kawasaki Technical Support, 1-800-433-5640.

$

$

Not available
