890011 - Gravely 50" Deck for Pro-Master 350 Mower (SN: 000101 & Above) Mower Drive Parts Diagram

50" Deck for Pro-Master 350 Mower

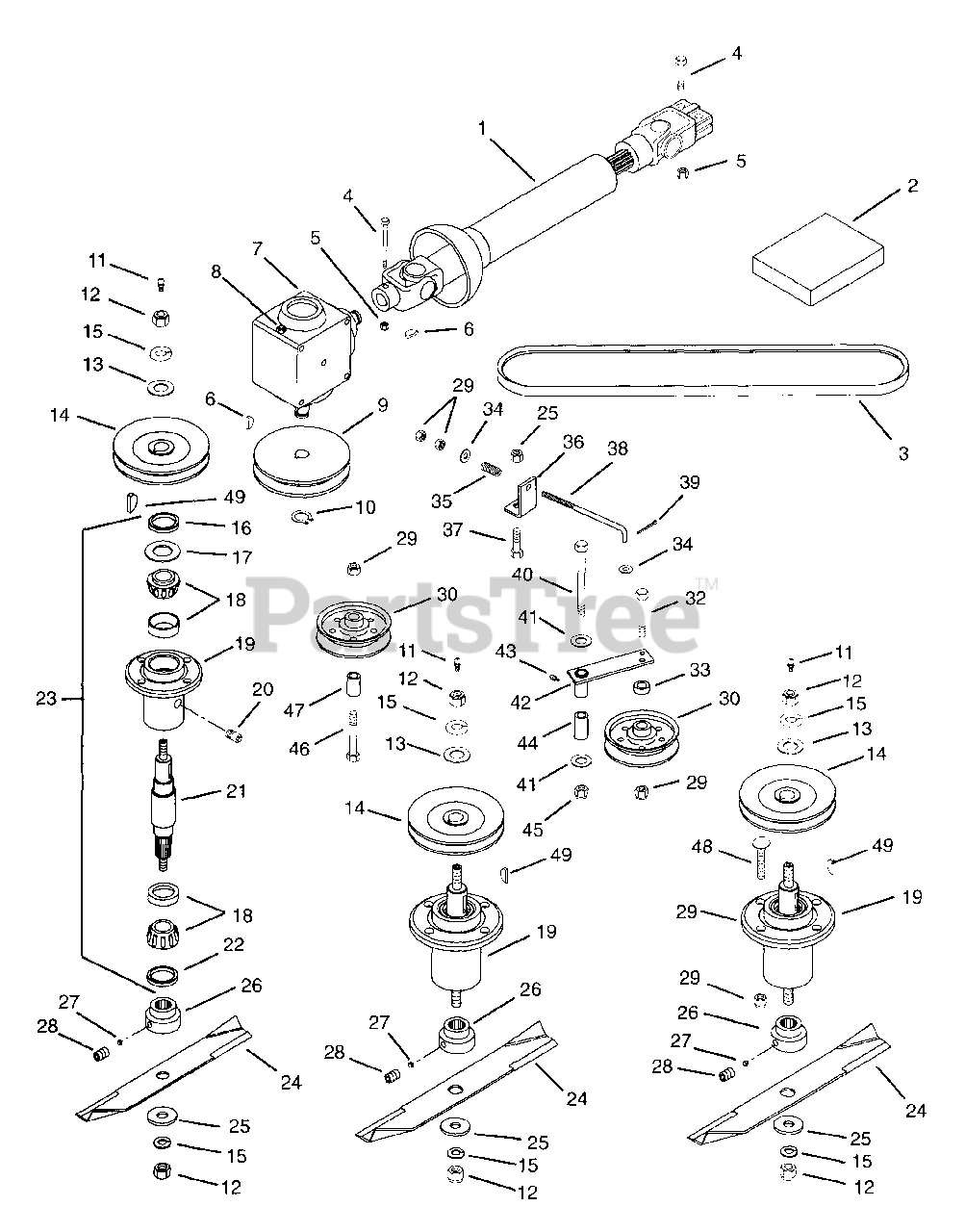

Mower Drive Parts Diagram

  • Title

1

Gravely 09052600

Universal Joint Assembly

$494.99

$

Usually ships in 4-12 days

0

2

Gravely 03155800

Kit, Repair U-Joint

$

$

Not available

3

Gravely 07230600

V-Belt A-Section

$96.99

$

In Stock, only 1 left!

0

4

Gravely 05963700

Bolt-Hex .31-18 x 2.25 Grade 5
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 06530200

Nut-Locking-Nylon .31-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 124551

Key-Woodruff .25 x .875 Hardened
(Superseded to 06608800)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 08956151

Gear Box, Right Angle

$

$

Not available

8

Gravely 048596

Plug, 1/8 Vent
(Superseded to 08984600)

$

$

Not available

9

Gravely 07322800

Sheave, Mower Gearbox

$

$

Not available

10

Gravely 022080

Ring-Retaining-External .821 x .078
(Superseded to 05713900)

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 411010

Fitting-Lube 1/8
(Superseded to 07012500)

$3.99

$

In Stock, only 2 left!

0

12

Gravely 06535600

Nut-Hex .62-11

$2.99

$

In Stock, only 3 left!

0

13

Gravely 033845

Washer-Flat-Steel .687 x 1.312 x .15
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

14

Gravely 08893900

Sheave

$

$

Not available

15

Gravely 06309500

Washer-Locking .62 x .156

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 05611400

Seal 1.987 x 1.500 x .313

$15.99

$

In Stock, only 1 left!

0

17

Gravely 06416600

Washer-Hardened-Thrust 1.007 x 1.542 x .062

$2.99

$

In Stock, Qty 20+

0

18

Gravely 21245800

Assembly, Bearing Cup & Cone
(Superseded to 00145555)

$25.99

$

In Stock, Qty 20+

0

19

Gravely 08894500

Bearing Housing

$

$

Not available

20

Gravely 08896800

Relief Fitting-Grease

$13.99

$

Usually ships in 4-12 days

0

21

Gravely 58802900

Shaft, Spindle

$125.99

$

In Stock, only 1 left!

0

22

Gravely 018447

Seal, 1.206 x 1.785 x .468
(Superseded to 05613200)

$15.99

$

In Stock, only 2 left!

0

23

Gravely 68800500

Service Kit Spindle Assembly
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

24

Gravely 052928

Blade, Mulching 50" Mower
(Superseded to 08866800)

$33.99

$

In Stock, Qty 20+

0

25

Gravely 06435200

Washer-Flat .640 x 1.81 x .25
(Superseded to 06400829)

$3.99

$

In Stock, only 2 left!

0

26

Gravely 08886500

Hub

$64.99

$

Usually ships in 4-12 days

0

27

Gravely 03191400

Plug

$6.49

$

Usually ships in 4-12 days

0

28

Gravely 06005400

Screw-Socket Head Cup Point Set .25-20 x .25

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

30

Gravely 021060

Pulley-Idler 4.00 x .380
(Superseded to 07314800)

$39.99

$

In Stock, Qty 5

0

31

Gravely 038696

Bushing-Sleeve .407 x .625 x .750
(Superseded to 05525700)

$7.49

$

In Stock, only 1 left!

0

32

Gravely 05958400

Bolt-Hex .38-16 x 2.50 Grade 5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

33

Gravely 120369

Nut-Hex .38-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

34

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 011779

Spring-Compression .125 x .78 x 1.00
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

36

Gravely 031346

Support, Spring
(Superseded to 08905100)

$16.99

$

Usually ships in 4-12 days

0

37

Gravely 05948700

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 046264

Rod, Idler
(Superseded to 08656800)

$64.99

$

Usually ships in 4-12 days

0

39

Gravely 06706900

Pin-Cotter .09 x .75

$0.99

$

In Stock, Qty 8

0

40

Gravely 05960100

Bolt-Hex .50-13 x 4.00
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

41

Gravely 06441000

Washer-Flat-Steel .500 x 1.250 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

42

Gravely 046809

Weldment, Idler Pivot
(Superseded to 08979400)

$150.99

$

In Stock, only 1 left!

0

43

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

44

Gravely 031363

Spacer .505 x .855 x 2.50
(Superseded to 08826500)

$51.99

$

Usually ships in 4-12 days

0

45

Gravely 06540600

Nut-Locking .50-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

46

Gravely 05958500

Bolt-Hex .38-16 x 1.75 Grade 5
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

47

Gravely 031368

Spacer .516 x .875 x .300
(Superseded to 09036100)

$36.99

$

Usually ships in 4-12 days

0

48

Gravely 06224200

Bolt-Round Head Square Neck .38-16 x 1.50 Grade 5
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

49

Gravely 124553

Key-Woodruff .25 x 1
(Superseded to 06608900)

$3.99

$

In Stock, Qty 18

0
