890011 - Gravely 50" Deck for Pro-Master 350 Mower (SN: 000101 & Above) Gearbox Parts Diagram

50" Deck for Pro-Master 350 Mower

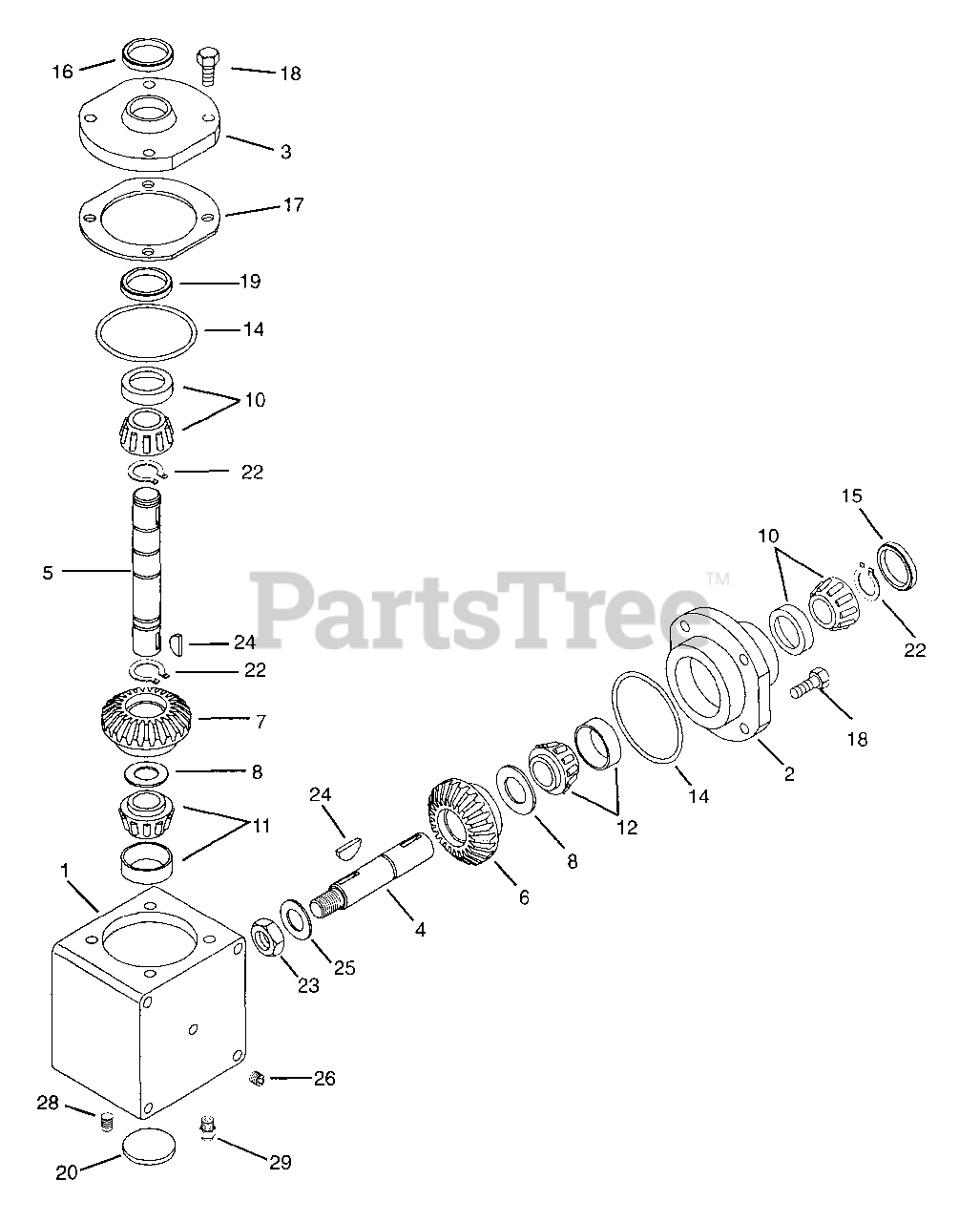

Gearbox Parts Diagram

  • Title

1

Gravely 770076

Housing, Right Angle Drive

$

$

Not available

2

Gravely 786104A

Cap, Retainer

$

$

Not available

3

Gravely 786105

Cap, Retainer

$

$

Not available

4

Gravely 776281

Shaft, Input (5.38" long)

Note: (5.38" long)

$

$

Not available

5

Gravely 776292

Shaft, Output (7.89" long)

Note: (7.89" long)

$

$

Not available

6

Gravely 778168

Gear, Spiral Bevel (25 teeth)

Note: (25 teeth)

$

$

Not available

7

Gravely 778172

Gear, Spiral Bevel (26 teeth)

Note: (26 teeth)

$

$

Not available

8

Gravely 780131

Shim (1-1/2" O.D. x 1-1/64" I.D. x .002 thick)

Note: (Use as required)

$

$

Not available

9

Gravely 780138

Shim (2.000" O.D. x 1.531" I.D. x .002 thick)

Note: (Use as required)

$

$

Not available

10

Gravely 780132

Bearing & Cup Assy.

$

$

Not available

11

Gravely 780132

Bearing & Cup Assy.

$

$

Not available

12

Gravely 780134

Bearing & Cup Assy.

$

$

Not available

14

Gravely 788063

"O" Ring

$

$

Not available

15

Gravely 788064

Seal, Oil

$

$

Not available

16

Gravely 788065

Seal, Oil

$

$

Not available

17

Gravely 780136

Shim, Cap Retainer

$

$

Not available

18

Gravely 792037

Screw, Hex, Head .31-18 x 1

$

$

Not available

19

Gravely 780137

Ring Load

$

$

Not available

20

Gravely 792111

Plug

$

$

Not available

22

Gravely 792113

Ring, Retaining

$

$

Not available

23

Gravely 792110

Jam Nut, 3/4-16

$

$

Not available

24

Gravely 792114

Key, Woodruff

$

$

Not available

25

Gravely 792118

Washer, Flat 1

$

$

Not available

26

Gravely 792116

Plug, Pipe, .25-18

$

$

Not available

28

Gravely 792039

Plug, Pipe, .12-27

$

$

Not available

29

Gravely 792118

Valve, Relief

$

$

Not available
