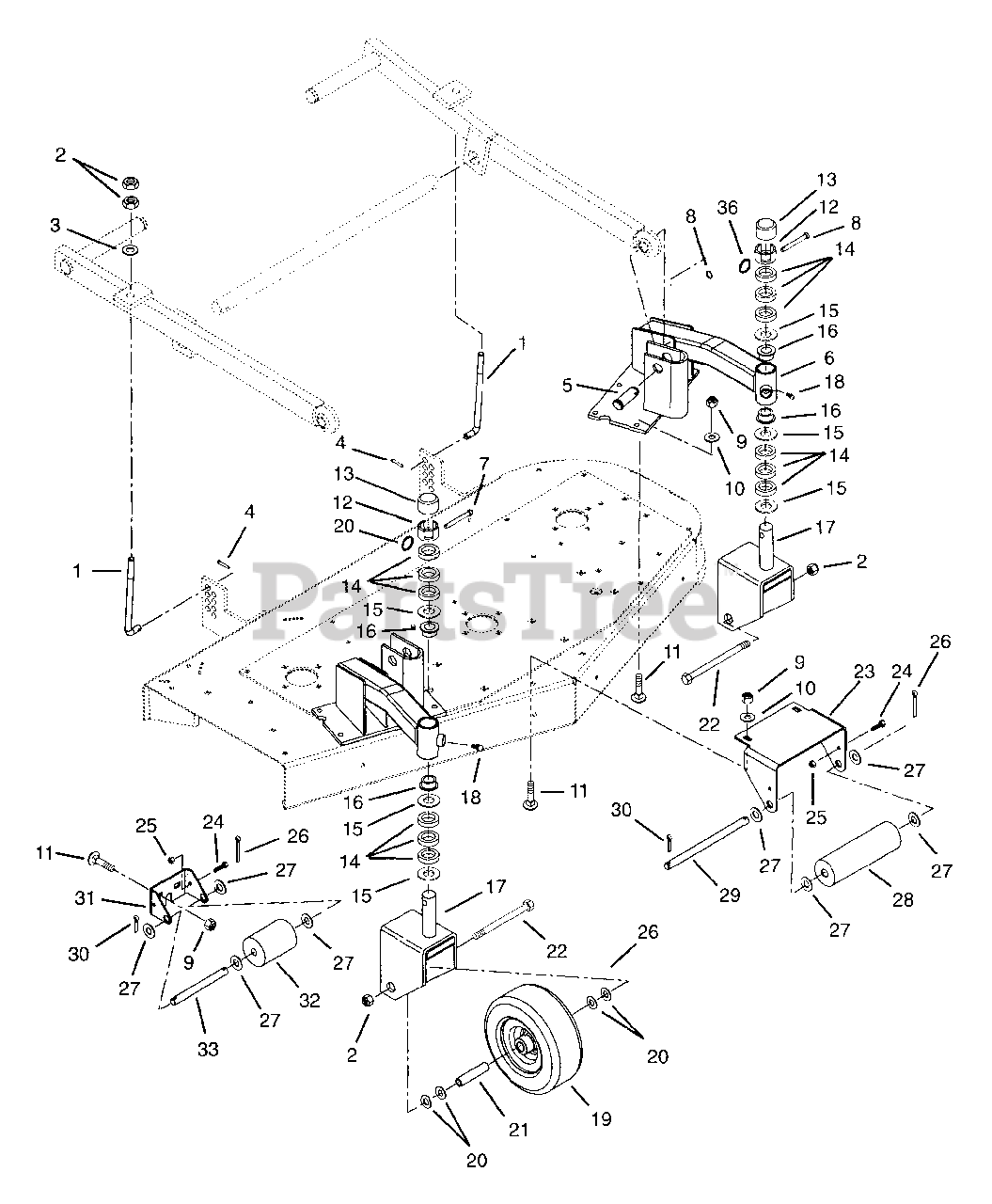

890011 - Gravely 50" Deck for Pro-Master 350 Mower (SN: 000101 & Above) Gauge Wheels, Rollers, And Height Adjustments Parts Diagram

50" Deck for Pro-Master 350 Mower

Gauge Wheels, Rollers, And Height Adjustments Parts Diagram

  • Title

1

Gravely 09052000

Rod, Rear Height Adjustment

$51.99

$

In Stock, only 1 left!

0

2

Gravely 06540600

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

4

Gravely 023468

Pin-Klik 1.00 x .188 x 1.25
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

5

Gravely 06815200

Pin-Clevis .875 x 3.00

$

$

Not available

6

Gravely 09089500

Weldment, Lift Arm Mount Left Hand

$68.99

$

Usually ships in 4-12 days

0

7

Gravely 06815300

Pin-Clevis .309 x 1.25

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 05718000

Ring-Retaining-External 2.240 x .180

$

$

Not available

9

Gravely 06535800

Nut-Locking-Nylon .38-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 06212000

Bolt-Round Head Square Neck .38-16 x 1.00
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 01535100

Spindle Cup

$

$

Not available

13

Gravely 00337700

Cap, Hub

$2.99

$

In Stock, Qty 20+

0

14

Gravely 05519500

Bushing-Sleeve 1.04 x 1.75 x .500
(Superseded to 05519553)

$17.99

$

In Stock, only 3 left!

0

15

Gravely 06435300

Washer-Hardened-Thrust 1.00 x 1.55 x .03

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

17

Gravely 09058200

Weldment, Caster Fork

$187.99

$

Usually ships in 4-12 days

0

18

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

19

Gravely 58903200

Kit, Pneumatic Tire Replacement

$284.99

$

In Stock, only 3 left!

0

20

Gravely 06441000

Washer-Flat-Steel .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

21

Gravely 011950

Spacer .532 x .748 x 3.34
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

22

Gravely 05964100

Bolt-Hex .50-13 x 5.50 Grade 5
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

23

Gravely 052796

Bracket, Gauge Roller
(Superseded to 09012300)

$77.99

$

In Stock, only 2 left!

0

24

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06531000

Nut-Locking-Nylon .25-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

26

Gravely 06713100

Pin-Cotter .250 x 2.00
(Superseded to 06700213)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 06442800

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

28

Gravely 031390

Roller, Gage
(Superseded to 08803300)

$37.99

$

In Stock, only 1 left!

0

29

Gravely 024795

Shaft, Center Roller
(Superseded to 08598800)

$60.99

$

In Stock, only 1 left!

0

30

Gravely 06713000

Pin-Cotter .25 x 1.00

$1.49

$

In Stock, only 2 left!

0

31

Gravely 08966853

Bracket, Roller

$

$

Not available

32

Gravely 015351

Roller, Gauge
(Superseded to 07520100)

$26.99

$

Usually ships in 4-12 days

0

33

Gravely 045211

Rod
(Superseded to 08966900)

$56.99

$

Usually ships in 4-12 days

0

34

Gravely 09089600

Weldment, Lift Arm Mount Right Hand

$68.99

$

Usually ships in 4-12 days

0

36

Gravely 05718100

Ring-Retaining-External 1.062 x 1.25

$6.99

$

Usually ships in 4-12 days

0
