890002 - Gravely 60" Deck for Pro-Master 400 Mower (SN: 000101 & Above) MOWER DECK Parts Diagram

60" Deck for Pro-Master 400 Mower

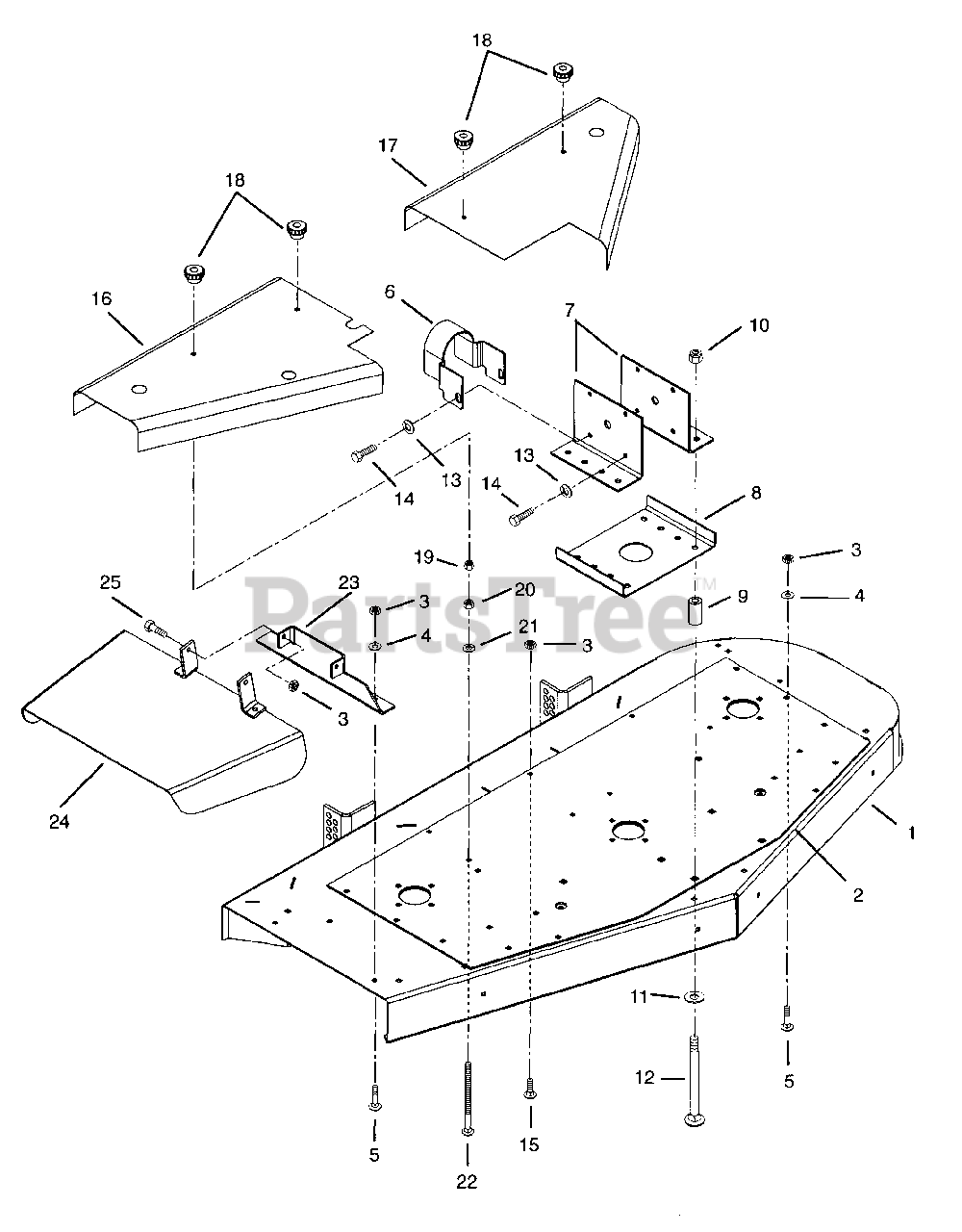

MOWER DECK Parts Diagram

  • Title

1

Gravely 09055700

Weldment, Deck 60" Mower PM350

$517.99

$

Usually ships in 4-12 days

0

2

Gravely 09055800

Plate, 60" Deck Reinforcement

$

$

Not available

3

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

4

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

6

Gravely 09062600

Shield U-Joint

$

$

Not available

7

Gravely 049079

Bracket, Gearbox Mounting
(Superseded to 08986700)

$6.99

$

Usually ships in 4-12 days

0

8

Gravely 049080

Plate, Support
(Superseded to 09064400)

$

$

Not available

9

Gravely 044905

Spacer.562 x 1.00 x 2.00
(Superseded to 08981000)

$27.99

$

Usually ships in 4-12 days

0

10

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

11

Gravely 120396

Washer-Flat-Steel .531 x 1.062 x .095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 05945700

Bolt-Hex .50-13 x 3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

13

Gravely 120382

Washer-Lock .375 x .094
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 180121

Bolt-Hex .380-16 x .875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

15

Gravely 126211

Bolt-Round Head Square Neck .31-18 x .62
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

16

Gravely 09056400

Cover, Mower Belt Right Hand

$

$

Not available

17

Gravely 09056000

Cover, Mower Belt Left Hand
(Superseded to 09064900)

$

$

Not available

18

Gravely 041674

Knob
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

19

Gravely 419455

Nut-Locking-Nylon .312-18 Grade 2
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 120376

Nut-Hex .312-18 Grade 2
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

21

Gravely 120214

Washer-Lock .313 x .078
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 06205200

Bolt-Round Head Square Neck .31-18 x 3.50
(Superseded to 06200411)

$5.99

$

Usually ships in 4-12 days

0

23

Gravely 049649

Bracket, Discharge
(Superseded to 08990400)

$54.99

$

Usually ships in 4-12 days

0

24

Gravely 052808

Weldment, Discharge Chute
(Superseded to 09012600)

$

$

Not available

25

Gravely 180122

Bolt-Hex .38-16 x 1.00 Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0
