890002 - Gravely 60" Deck for Pro-Master 400 Mower (SN: 000101 & Above) GAUGE WHEEL, ROLLERS, AND HEIGHT ADJUSTMENT Parts Diagram

60" Deck for Pro-Master 400 Mower

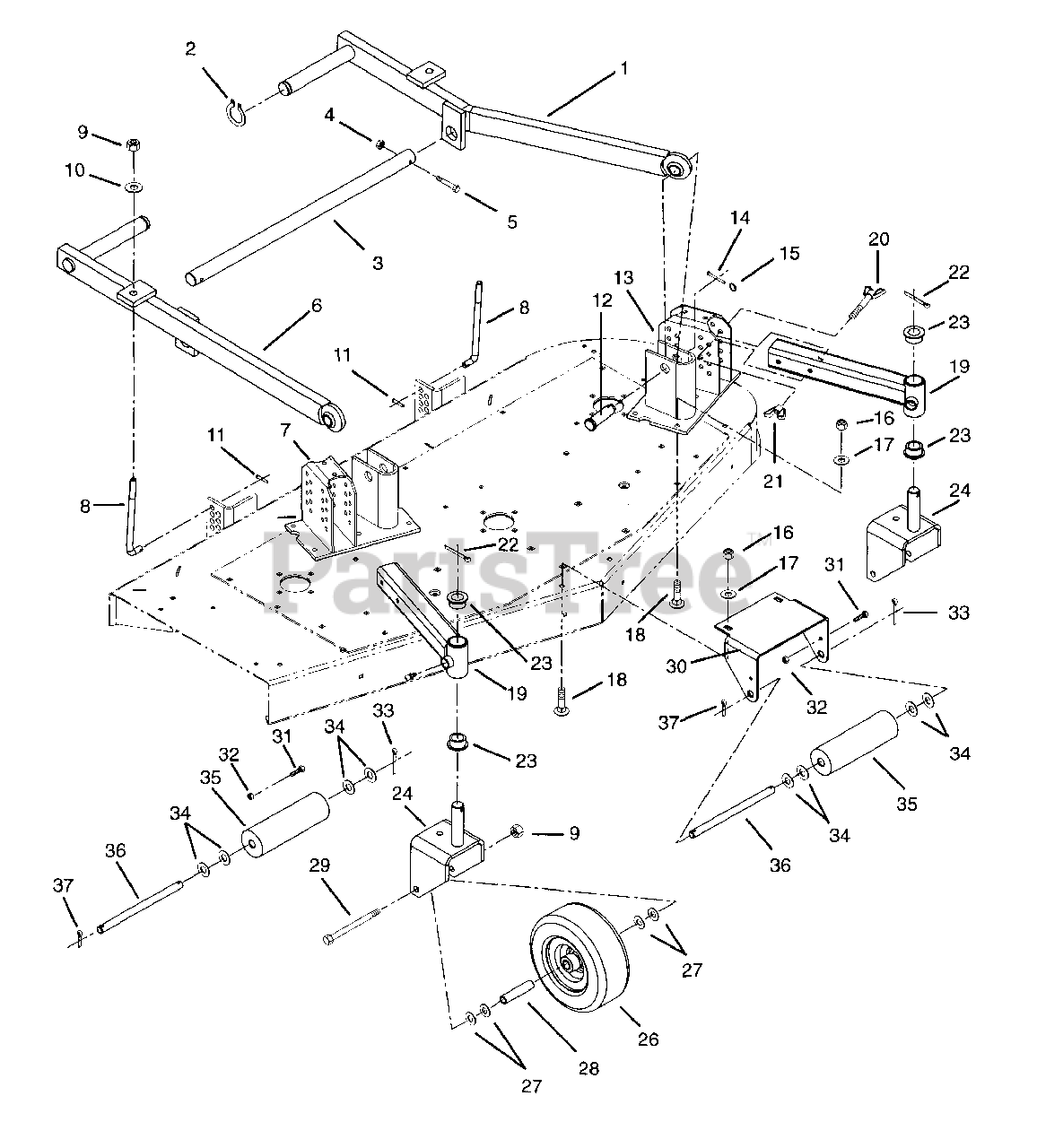

GAUGE WHEEL, ROLLERS, AND HEIGHT ADJUSTMENT Parts Diagram

  • Title

1

Gravely 09052400

Weldment, Lift Arm Left Hand

$

$

Not available

2

Gravely 021608

Ring-Retaining-External 1.150 x .093
(Superseded to 05713800)

$

$

Not available

3

Gravely 09052100

Shaft, Mower Lift

$56.99

$

Usually ships in 4-12 days

0

4

Gravely 06506000

Nut-Locking-Jam-Center .375-16
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 180042

Bolt-Hex .25-20 x 1.75 Grade 2
(Superseded to 05964700)

$2.49

$

In Stock, only 1 left!

0

6

Gravely 09051900

Weldment, Lift Arm Right Hand

$

$

Not available

7

Gravely 09057000

Weldment, Lift Arm Mount Right Hand

$

$

Not available

8

Gravely 09052000

Rod, Rear Height Adjustment

$51.99

$

In Stock, only 1 left!

0

9

Gravely 435507

Nut-Locking-Nylon .50-13 Grade 5
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 415543

Washer-Flat-Steel .531 x 1.250 x 1.00
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

11

Gravely 023468

Pin-Klik 1.000 x .188 x 1.25
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 047198

Pin-Clevis .875 x 3.00
(Superseded to 06815200)

$

$

Not available

13

Gravely 09062700

Weldment, Lift Arm Mount Left Hand

$45.99

$

Usually ships in 4-12 days

0

14

Gravely 047197

Pin-Clevis .313 x 2.62 Grade 5
(Superseded to 06810900)

$

$

Not available

15

Gravely 051313

Ring-Retaining-External 2.240 x .180
(Superseded to 05718000)

$

$

Not available

16

Gravely 456004

Nut-Locking-Nylon .375-16 Grade 2
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 120394

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 120915

Bolt-Round Head Square Neck .38-16 x 1.0

$

$

Not available

19

Gravely 09056900

Caster Wheel Mount

$13.99

$

Usually ships in 4-12 days

0

20

Gravely 09058700

Bolt, Wing 3/8-16 x 3

$

$

Not available

21

Gravely 09058600

Nut, Wing 3/8-16

$

$

Not available

22

Gravely 137253

Pin-Cotter .188 x 1.625
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

23

Gravely 018355

Bushing-Flange 1.020 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 12

0

24

Gravely 09001900

Weldment, Caster Fork
(Superseded to 09066400)

$193.99

$

In Stock, only 1 left!

0

25

Gravely 411027

Fitting-Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

26

Gravely 052586

Wheel 9 x 3.50
(Superseded to 58903200)

$284.99

$

In Stock, only 3 left!

0

27

Gravely 120389

Washer-Flat-Steel .500 x 1.250 x .083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

28

Gravely 011950

Spacer .532 x .748 x 3.34
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

29

Gravely 445608

Bolt-Hex .50-13 x 5.50
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

30

Gravely 052796

Bracket, Roller Right Hand
(Superseded to 09012300)

$77.99

$

In Stock, only 2 left!

0

31

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 419454

Nut-Locking-Nylon .250-20 Grade 2
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

33

Gravely 103422

Pin-Cotter .250 x 2.00
(Superseded to 06713100)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 131016

Washer-Flat-Steel .656 x 1.312 x .095
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

35

Gravely 031390

Roller, Gage
(Superseded to 08803300)

$37.99

$

In Stock, only 1 left!

0

36

Gravely 024795

Shaft, Center Roller
(Superseded to 08598800)

$60.99

$

In Stock, only 1 left!

0

37

Gravely 179128

Pin-Cotter .25 x 1.00
(Superseded to 06713000)

$1.49

$

In Stock, only 2 left!

0
